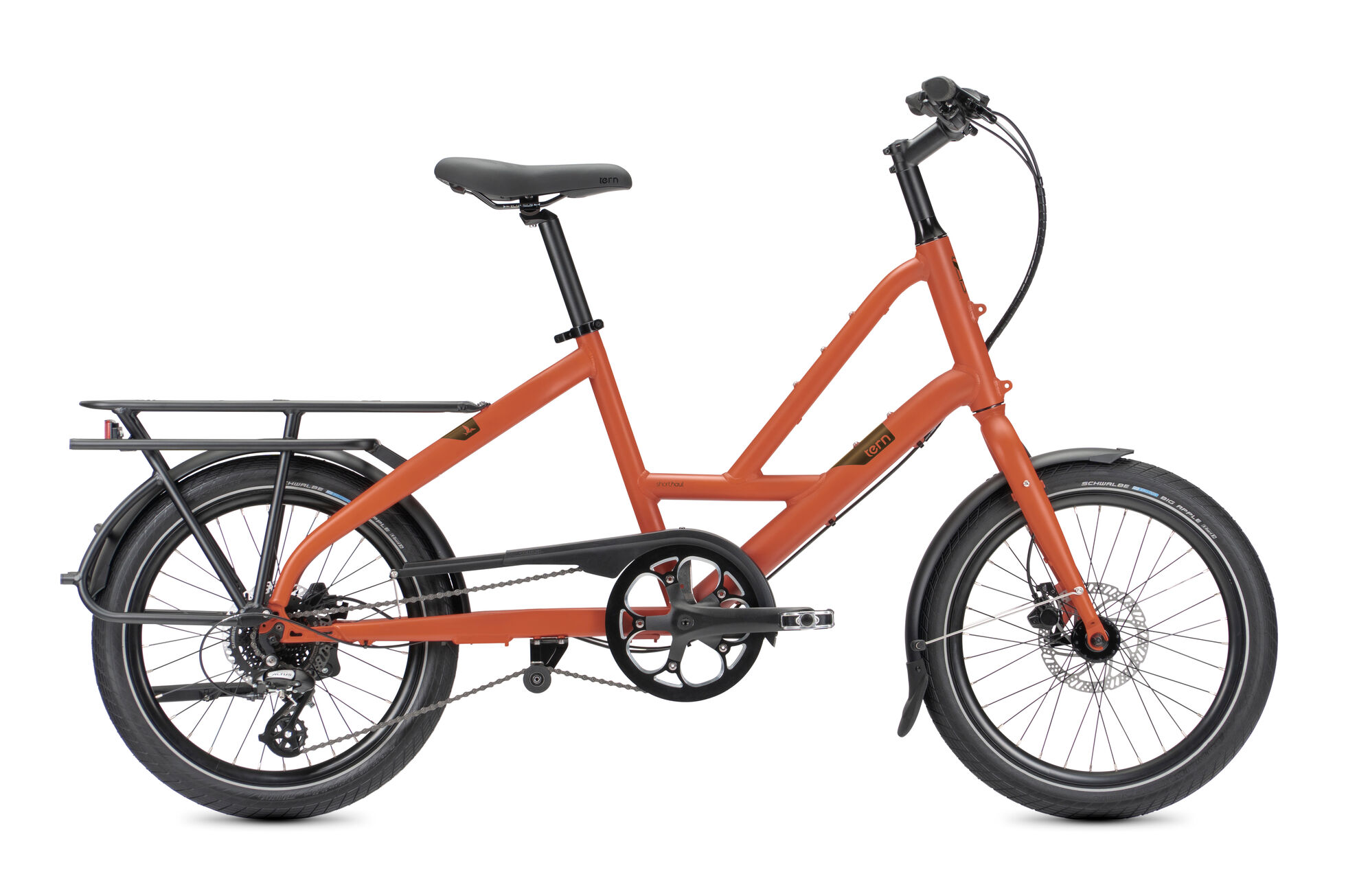

Short Haul D8
- 後貨架能載重50公斤的小型貨車，另選配前貨架，可另有額外20公斤載貨量
- 依據你的騎行目的 (載小孩、載物品、載寵物)，選配不同的配件，以打造你理想的騎行設定
- 安全與可靠經過認證：車架及前叉經EFBE測試可載重至140公斤 (308 lb) 最高車量總重
- 適合不同身高的騎乘者 (147 - 190 cm)，最重可至120公斤
- 低站立高度 (49公分或19”) 讓拆裝配件及停車時更為輕鬆
- 1x8 速 Shimano Altus後變速器，並配有指撥變把
- 油壓碟煞，即便裝載重貨也能帶來非常好的剎車力道
- 20" wheels
都市車款
入門
Specifications
General Info
Speeds:
1 x 8
Weight:
16.1 kg (35.5 lb)
Gear Inches:
31" - 95" (2.45 - 7.57 m)
Frame Sizes:
One size
Distance: Seatpost to Handlebar:
60 - 64 cm (23.6 - 25.2 in)
Distance: Saddle to Pedal:
62 - 110 cm (24.4 - 43.3 in)
Suggested Rider Height:
147 - 190 cm (57.9 - 74.8 in)
Max Gross Vehicle Weight:
140 kg (308.6 lb)
Max Rider Weight:
120 kg (264.6 lb)
Frame
Frame:
Tern Short Haul, Patented Design, 6061-AL, EFBE Tri-Test approved: 140 kg
Fork:
Steel, EFBE approved: 140 kg
Cockpit
Stem:
Forged, 31.8
Headset:
TH, cartridge bearings
Handlebar:
Low riser, 31.8, 6061-AL
Grips/Bar Tape:
Velo ergonomic, lock-on
Saddle:
Velo Comfort
Seatpost:
31.6 mm, 6061-AL, micro-adjust clamp
Seatpost Clamp:
Tern Collar
Brakes
Front Brake:
Hydraulic disc
Rear Brake:
Hydraulic disc
Brake Levers:
Hydraulic disc
Brake Cable & Housing:
Hydraulic disc
Wheels
Front Hub:
Disc, aluminum
Rear Hub:
8 spd, disc, aluminum
Spokes & Nipples:
Stainless steel
Rims:
Doublewall, for disc
Tires:
Schwalbe Big Apple, 55-406, puncture protection, Reflex
Transmission
Shifter(s):
1 x 8 spd, trigger
Rear Derailleur:
Shimano Altus
Crankset:
Forged 6061-AL crankarm
Cassette/Freewheel:
11-34T, 8 spd
Bottom Bracket:
FSA, Cartridge, sealed bearings
Chain:
KMC, 8 spd
Pedals:
Urban with non-slip surface
Shifter Cable & Housing:
SP
Bells & Whistles
Bell:
Aluminum
Chainguard:
SKS Chainblade
Kickstand:
Pletscher design, rear mount
Luggage Socket:
Combo Mount
Fenders:
SplashGuard, stainless hardware
Rack(s):
Atlas Q Rack, 6 point mounting, Vertical Parking, 50 kg capacity
*Note: These are our standard model specifications. The bike's weight and folded dimension may not include racks and fenders. The specifications for your country may differ slightly. We do our best to ensure that the specifications listed here accurately reflect the exact parts found on our production bikes. However, component changes do occur for various reasons and there may be brief delays on site updates. We reserve the right to make component changes without prior notification, which may cause discrepancies with the information listed on the web.
