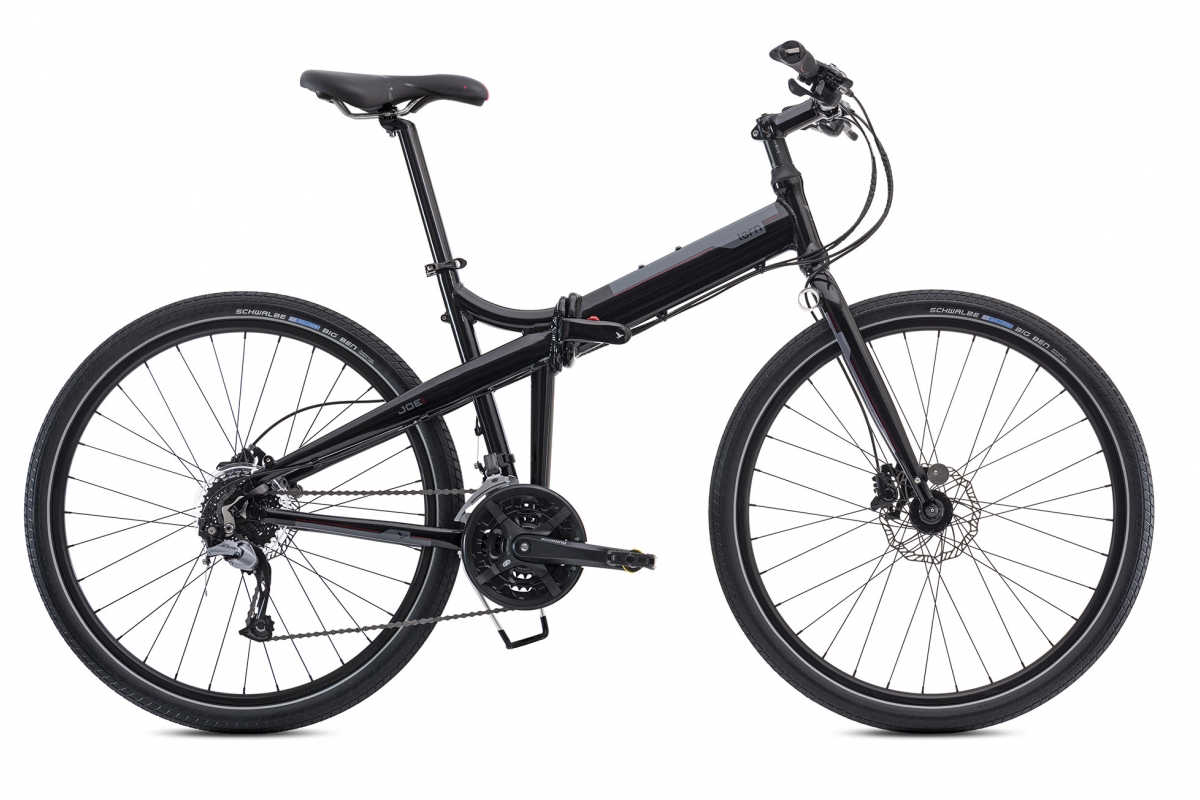

Joe P27

The Urban Warrior
£1200

Bikes for day-in, day-out transportation need to be ready for the urban landscape of potholes, rail crossings, curbs and more. With big 27.5” wheels, hydraulic disc brakes and a generous complement of 27 gears, the Joe P27 gives you the full-sized ride you want. The new Joe-fold tucks the handlebars inside the bike, which means less side protrusion and a folded size that’s nearly 50% smaller than the last generation.

  • 27.5” (650b) wheels to roll over obstacles with impunity
  • Hydraulic Shimano disk brakes for massive stopping power
  • Cushy yet puncture resistant Schwalbe Big Ben tires for all-around performance
  • Handlebar mounting point for a more compact fold
  • Magnetix™ 2.0 lock the bike in place when folded
  • Folds in 30 seconds to throw in the back of a car and fast-forward to the good part of the ride
  • Get the perfect fit, with one of three sizes

SPECIFICATIONS

General Info
Generation:
Gen 1
Color(s):
Speeds:
3 x 9
Weight:
14.2 kg (31.3 lb)
Gear Inches:
18" - 107" (1.47 - 8.55 m)
Frame Sizes:
S (16"), M (18"), L (20")
Folding Size:
460 × 950 × 870 mm (18.1 × 37.4 × 34.3 in)
Folding Time:
30 sec
Distance: Seatpost to Handlebar:
63 - 65 cm (24.8 - 25.6 in)
Distance: Saddle to Pedal:
70 - 93 cm (27.6 - 36.6 in)
Suggested Rider Height:
142 - 190 cm (55.9 - 74.8 in)
Max Gross Vehicle Weight:
120 kg (264.6 lb)
Max Load Weight:
105 kg (231.5 lb)
Max Rider Weight:
105 kg (231.5 lb)
Frame
Frame:
Tern Joe, 7005-AL, OCL Joint, 2 patented technologies
Fork:
Aluminum, 6061-AL
Cockpit
Stem:
NVO, adjustable, ATS Technology
Headset:
Cartridge bearings
Handlebar:
Riser, double-butted 6061-AL, 31.8mm
Grips/Bar Tape:
BioLogic Arx
Saddle:
LiteForm QR, alloy body, QR right/standard left
Seatpost:
6061-AL, forged clamp
Seatpost Clamp:
QR, 6061-AL
Brakes
Front Brake:
Rear Brake:
Shimano, hydraulic disc
Brake Levers:
Shimano, hydraulic
Brake Cable & Housing:
Formula disc, aluminum, QR
Wheels
Front Hub:
Formula disc, 9 spd aluminum, QR
Rear Hub:
Stainless steel
Spokes & Nipples:
Doublewall aluminum, disc only
Rims:
Tyres:
Shimano, integrated shift/brake lever set, 3 x 9 spd
Transmission
Shifter:
Shimano Altus
Front Derailleur:
Shimano Acera, Shadow RD
Rear Derailleur:
Shimano, 44-32-22T, w/ chainguard
Crankset:
Shimano, 11-32T, 9 spd
Cassette/Freewheel:
Cartridge, sealed bearings
Bottom Bracket:
KMC 9 spd
Chain:
Jagwire LEX-SL, anti-compression housing, slick cables, Slick Lube liner, alloy ferrules
Pedals:
Shimano, hydraulic disc
Shifter Cable & Housing:
Pitch, brass
Bells & Whistles
Bell:
Deluxe center mount
Kickstand:
Clip System:
No
Luggage Socket:
No
Accessory:
Pedal Holder

*Note: These are our standard model specifications. The bike's weight and folded dimension may not include racks and fenders. The specifications for your country may differ slightly. We do our best to ensure that the specifications listed here accurately reflect the exact parts found on our production bikes. However, component changes do occur for various reasons and there may be brief delays on site updates. We reserve the right to make component changes without prior notification, which may cause discrepancies with the information listed on the web.
