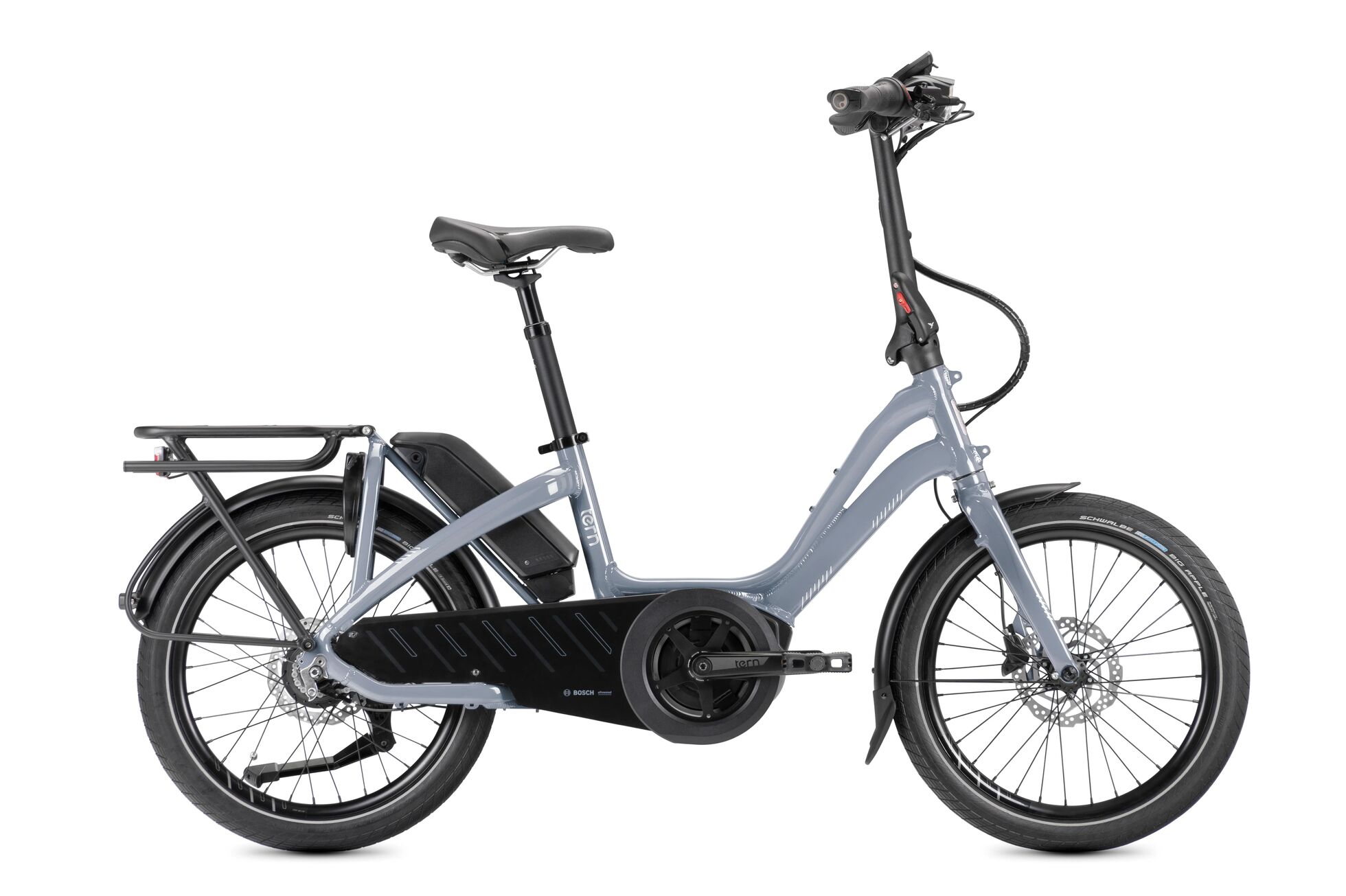

NBD P8i

Smiles for Miles
Why NBD
Specs
Accessories
Support
Find a Dealer

Qué la Convierte en una P8i?

  • El motor Active Line Plus entrega hasta 50 Nm de par y una assistência del 270%
  • La batería de 400 Wh permite largos recorridos, paseos y viajes
  • Buje interno Shimano® Nexus  8 velocidades
  • Frenos hidráulicos Shimano, potencia de frenada superior incluso llevando pasajero o circulando rápido



NBD, Singularidades

  • Paso de cuadro ultra bajo, 39 cm. lo que significa que subirse y bajarse nuca ha sido tán fácil
  • El centro de gravedad ultra bajo facilita el equilibrio y las maniobras cuando viaja con niños por parques o calles estrechas
  • Se adapta a ciclistas de 1,47 a 1,90 cm
  • El portabultos Gaia Rack está certificado para cargar hasta 27 kg y es compatible con muchas sillas de niño
  • Seguridad y fiabilidad testadas: el cuadro y la horquilla se han sometido a la prueba Tri-Test de EFBE para el peso bruto máximo del vehículo de 140 kg
NBD P8i - Red
  • 20" wheels
Eléctricas
Alto

Specifications

General Info
Speeds:
1 x 8
Weight:
23,7 kg (52,2 lb)
Gear Inches:
35" - 85" (2.78 - 6.81 m)
Folding Size:
38 × 156 × 79 cm (15 × 61,4 × 31,1 en)
Folding Time:
5 sec
Frame Sizes:
One size
Distance: Seatpost to Handlebar:
45 - 52 cm (17,7 - 20,5 in)
Distance: Saddle to Pedal:
70 - 100 cm (27,6 - 39,4 in)
Suggested Rider Height:
147 - 190 cm (57,9 - 74,8 in)
Max Gross Vehicle Weight:
140 kg (308,6 lb)
Max Rider Weight:
120 kg (264,6 lb)
Frame
Frame:
Tern NBD, 6061-AL, Patented design, EFBE Tri-Test approved: 140 kg
Fork:
Tern Tarsus, 6061-AL, hydroformed, EFBE approved: 140 kg
Cockpit
Handlepost:
Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 350 mm
Stem:
Tern Andros, adjustable, forged construction, patented technology
Headset:
Tern Flux by FSA, cartridge bearings, Physis integrated
Handlebar:
Tern Sweep, 6061-AL, Tern Andros adapted
Grips/Bar Tape:
Ergon
Saddle:
Tern Upright by Velo
Seatpost:
Tern RideEasy Suspension, 34.9 mm
Seatpost Clamp:
Tern Collar
Brakes
Front Brake:
Shimano, hydraulic disc
Rear Brake:
Shimano, hydraulic disc
Brake Levers:
Shimano, hydraulic disc
Brake Cable & Housing:
Shimano, hydraulic disc
Wheels
Front Hub:
Shimano disc
Rear Hub:
Shimano Nexus 8
Spokes & Nipples:
Stainless steel
Rims:
Kinetix Comp, for disc
Tires:
Schwalbe Big Apple, 55-406, puncture protection, Reflex
Transmission
Shifter(s):
Shimano 8 spd.
Crankset:
Tern NBD custom, forged 6061-AL crankarm
Cassette/Freewheel:
16T
Chain:
KMC for eBike, EPT corrosion resistant coating
Pedals:
MKS Platform, Tern custom design
Shifter Cable & Housing:
Shimano
E-System
Motor:
Bosch Active Line Plus, 270% Assist, 50 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US)
Battery:
Bosch PowerPack 400
Display:
Bosch Intuvia, 4 mode selectable, walk assist
Range:
54 -108 km (34-67 mi)
Charger:
Bosch Standard Charger
Bells & Whistles
Bell:
Aluminum
Chainguard:
Tern Custom, full chain cover
Kickstand:
Ursus, rear mount
Luggage Socket:
Combo Mount
Front Light:
Tern Valo Direct, 190 lumens
Rear Light:
Herrmans
Fenders:
SplashGuard, stainless hardware
Rack(s):
Gaia Rack, 27 kg capacity, Vertical Parking
Frame Lock:
ABUS, keyed-alike with Bosch battery

*Note: These are our standard model specifications. The bike's weight and folded dimension may not include racks and fenders. The specifications for your country may differ slightly. We do our best to ensure that the specifications listed here accurately reflect the exact parts found on our production bikes. However, component changes do occur for various reasons and there may be brief delays on site updates. We reserve the right to make component changes without prior notification, which may cause discrepancies with the information listed on the web.
