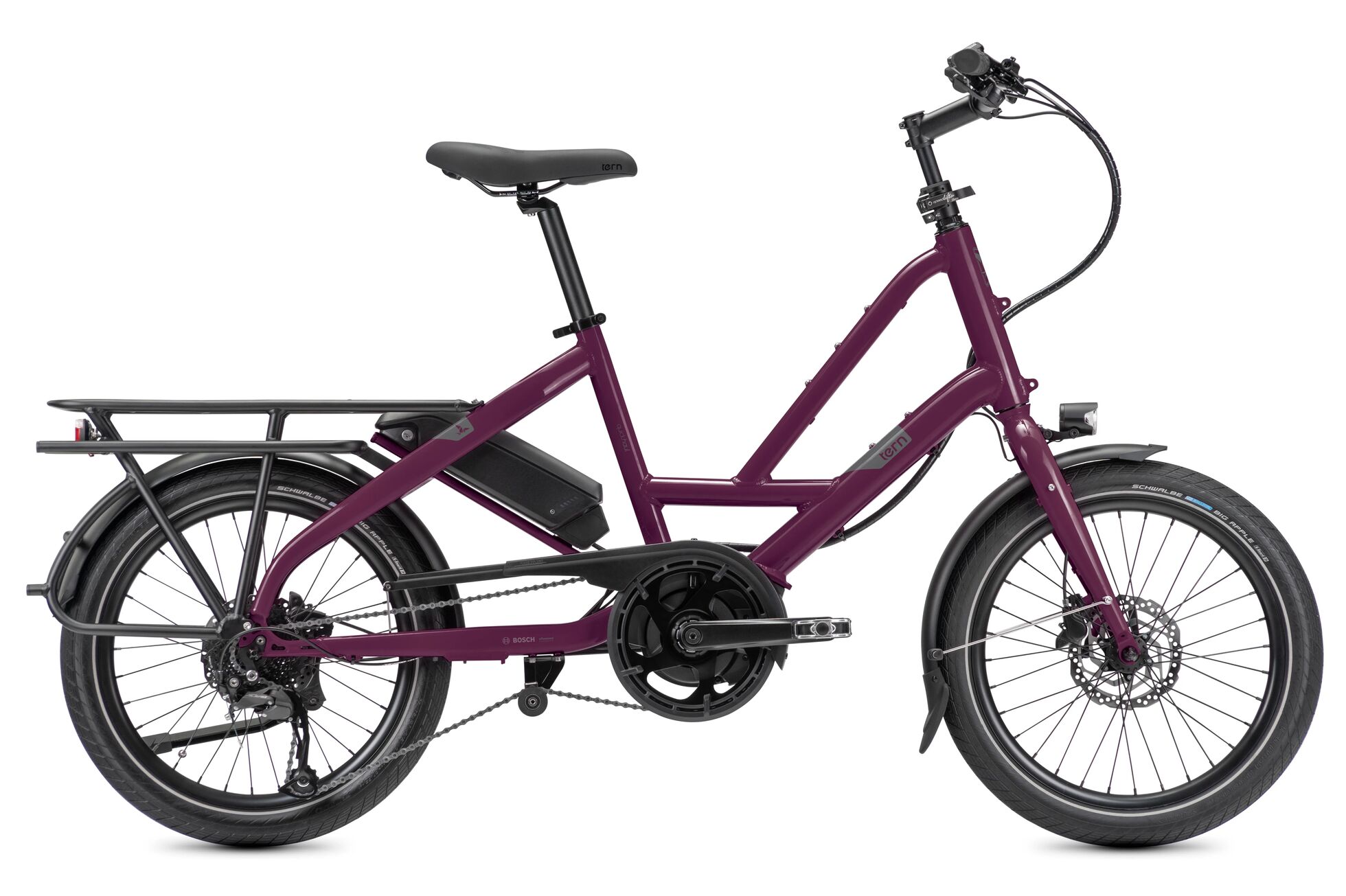

Quick Haul P9

Simplemente capaz
Disponible finales de año de 2022

¿Qué la hace una P9?

  • El motor Bosch Performance Line Cruise proporciona hasta 65 Nm de par y un 300 % de asistencia
  • Grupo Shimano Alivio de 1x9 velocidades con palanca de cambios de gatillos

Aspectos destacados de la Quick Haul

  • Capacidad de carga: 50 kg en el portabultos trasero, más 20 kg adicionales en el portabultos delantero, opcional
  • Se adapta a ciclistas de 160 a 195 cm y también a ciclistas de 145 a 180 cm cuando está equipado con una tija de sillín más corta de 350 mm
  • Gran cantidad de accesorios disponibles para transportar carga y niños: cree fácilmente su combinación perfecta
  • La altura ultra baja de 490 mm facilita el montaje y (des)montaje y la espera en las paradas
  • Frenos de disco hidráulicos Shimano para una potencia de frenado fiable, incluso con mucha carga y marcha rápida
  • Seguridad y fiabilidad comprobadas: el cuadro y la horquilla están probados por EFBE hasta los 150 kg de peso bruto máximo del vehículo
Quick Haul P9 Tabasco
  • 20" wheels
Rango medio

Product Reviews

As an all-rounder bike for those who want to do errands, go shopping, carry a kid, (...) the Quick Haul is one of the most interesting options in terms of price and practicality.

Due Ruote

Getting started is very easy since it rides like a classic pedelec. In addition, the bike is really super stable. This is due to the position of the motor and battery, but also due to an impressive wheelbase (116 cm) on such a small bike. And despite that, it's no longer than a classic pedelec, which we appreciate. This also makes it easy to handle, even in small spaces.


Should [the E-Bike Act] receive approval in the USA, qualifying individuals could receive up to 30 per cent tax credit. This can be applied to the purchase of a new electric bike, with up to $900 of benefit value. The Quick Haul enables you to get the maximum possible tax credit due to its pricing, giving you the most bike for your buck.


Tern also puts their bikes through the toughest tests in the industry, and often goes further by making up their own tests when they think existing standards are not stringent enough. So for me, when I put my 2-year-old son on the back, I felt good knowing all the lengthy tests this bike had gone through. So whether you are putting your best furry friend, your kid, or other precious cargo on the back, Tern has many options to keep them safe and comfortable.



General Info
1 x 9
22,9 kg (50,5 lb)
Gear Inches:
31" - 95" (2.45 - 7.57 m)
Frame Sizes:
One size
Distance: Seatpost to Handlebar:
60 - 64 cm (23,6 - 25,2 in)
Distance: Saddle to Pedal:
68 - 110 cm (26,8 - 43,3 in)
Suggested Rider Height:
160 - 195 cm (63 - 76,8 in)
Max Gross Vehicle Weight:
150 kg (330,7 lb)
Max Rider Weight:
120 kg (264,6 lb)
Tern Quick Haul, Patented Design, 6061-AL, EFBE Tri-Test approved: 150 kg
Cargo, steel, EFBE approved: 150 kg
Speedlifter, 150 mm extension, 3D Forged stem, 31.8
TH, cartridge bearings
Low riser, 31.8, 6061-AL
Grips/Bar Tape:
Velo ergonomic, lock-on
Velo Comfort
31.6 mm, 6061-AL, micro-adjust clamp
Seatpost Clamp:
Tern Collar
Front Brake:
Shimano, hydraulic disc
Rear Brake:
Shimano, hydraulic disc
Brake Levers:
Shimano, hydraulic disc
Brake Cable & Housing:
Shimano, hydraulic disc
Front Hub:
Shimano disc
Rear Hub:
Shimano disc
Spokes and Nipples:
Stainless steel
Kinetix Comp, for disc
Schwalbe Big Apple, 55-406, puncture protection, Reflex
Shimano Alivio, 1 x 9 spd, trigger
Rear Derailleur:
Shimano Alivio Shadow
Tern custom, forged 6061-AL crankarm
Shimano 11-34T, 9 spd
Bottom Bracket:
Motor integrated
KMC for eBike, 9 spd
Urban with non-slip surface
Shifter Cable & Housing:
Bosch Performance, 300% Assist, 65 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US)
Bosch PowerPack 400
Bosch Purion
400 Wh: 53 - 105 km (32.9 - 65.2 mi)
Compact Charger, 100-240V, 2A
Bells & Whistles
SKS Chainblade
Pletscher design, rear mount
Luggage Socket:
Combo Mount
Front Light:
Herrmans, 120 lumens
Rear Light:
Chromeplastic, stainless hardware
Atlas Q Rack, UpperDeck Mount System, Vertical Parking, 50 kg capacity

*Note: These are our standard model specifications. The bike's weight and folded dimension may not include racks and fenders. The specifications for your country may differ slightly. We do our best to ensure that the specifications listed here accurately reflect the exact parts found on our production bikes. However, component changes do occur for various reasons and there may be brief delays on site updates. We reserve the right to make component changes without prior notification, which may cause discrepancies with the information listed on the web.
