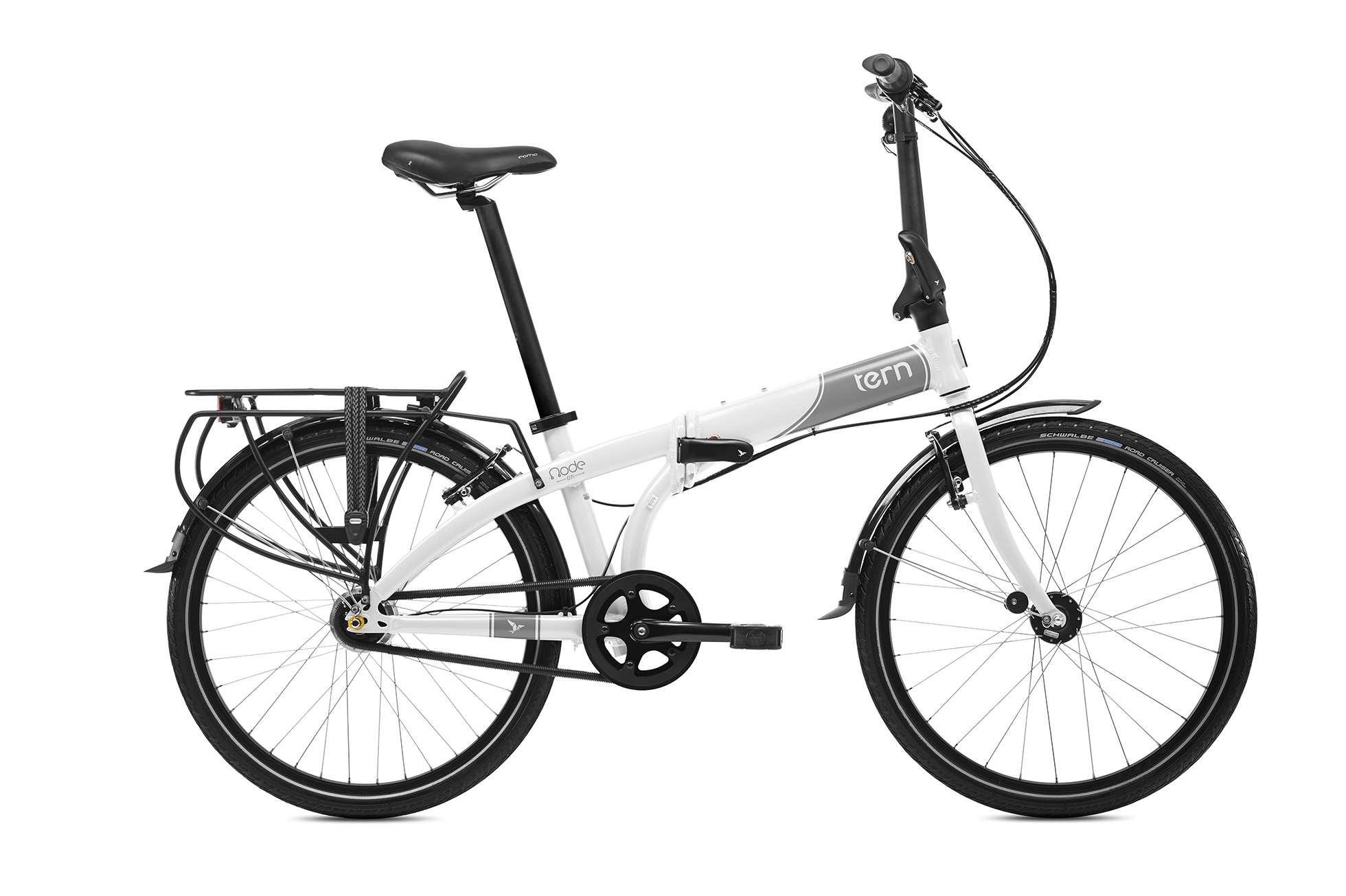

Node D7i

Local Hero
CHF1100.-

Mit der Node-Baureihe interpretieren wir das Urban-Bike neu. Maximalen Komfort bietet die Balloon-Bereifung und die Geometrie, die für eine aufrechte Sitzhaltung sorgt. In Kombination mit dem geschwungenen Lenker eine absolute Wohlfühl-Oase. Das Dekor – Ton-in-Ton mit der Lackierung – und die schwarzen Komponenten machen es optisch zu einem zeitlosen Haben-Wollen-Rad.

  • 7-Gang Shimano Nexus Nabenschaltung
  • Komfortable Sitzposition mit gekröpftem Lenker
  • Verstellbarer Andros™ Vorbau
  • Vollausgestattet mit Schutzblechen, Gepäckträger und Beleuchtung
  • Mit Schutzblechen / ohne Gepäckträger und Beleuchtung
  • Schwalbe Big Apple Balloon-Pannenschutzreifen
  • 24" wheels
Around Town Räder
Alles andere als nur Mittelklasse

Technology

Product Reviews

The Tern Node D7i is an urban bike with a balanced ride and excellent folding characteristics. The KARL editorial team was thrilled by the wonderfully agile handling.

Karl

Our top pick, the Tern Node D7i Folding Bike, feels like a standard framed bike, offers a smooth ride, and even has a built-in light that makes it great for night riding.

Business Insider

...das Tern agiert nicht “wackelig”, sondern bleibt souverän in der Spur, auch Rahmenflattern ist dem D7i fremd. [...a fantastic riding experience, the bike doesn't "wobble" due to the very stiff frame.]

Aktiv Radfahren

Dieses Schweizer Taschenmesser auf zwei Rädern bietet neben dem ausgereiften Faltmechanismus Ausstattung und Qualität für jeden Tag. [A Swiss army knife on two wheels, with sophisticated folding and quality for everyday riding.]

Urban Cycling

Tern a anunțat astăzi lansarea modelului Node, o pliabilă cu roți de 24 de inch, mai mari decât se obișnuiește în cazul acestui tip de biciclete. Producătorul încearcă prin acest lucru să combine beneficiile unei biciclete cu astfel de roți cu avantajele practice ale unei pliabile.

Free Rider

Im Vordergrund steht dabei die Fahrqualität, die der eines traditionellen Rades entspricht, während es sich kompakt falten und angenehm transportieren lässt. [The focus is on the ride quality, which corresponds to that of a traditional bike, while it can be folded compactly and conveniently transported.]

Radmarkt

Specifications

General Info
Speeds:
7
Weight:
14.2 kg (31.3 lb)
Gear Inches:
34" - 82"
Folding Size:
390 × 860 × 840 mm (15.4 × 33.9 × 33.1 in)
Folding Time:
10 sec
Frame Sizes:
Einheitsgröße
Distance: Seatpost to Handlebar:
57 - 73 cm (22.4 - 28.7 in)
Distance: Saddle to Pedal:
79.5 - 105 cm (31.3 - 41.3 in)
Suggested Rider Height:
148 - 195 cm (58.3 - 76.8 in)
Max Load Weight:
115 kg (253.5 lb)
Frame
Frame:
Node, aluminum, patented OCL Joint and DoubleTruss technology, Igus bearings
Fork:
Integrated, hi-tensile steel
Cockpit
Handlepost:
Physis 3D, 3D forged construction, 4 patented technologies
Stem:
Fixed QR
Headset:
Flux, cartridge bearings, dual-seal technology
Handlebar:
Flat bar, 6061-Al
Grips/Bar Tape:
BioLogic Ergo, dual-density Kraton
Saddle:
BioLogic Como DLX
Seatpost:
SuperOversize, 6061-Al, micro-adjust clamp
Seatpost Clamp:
SuperOversize, 6061-AL
Brakes
Front Brake:
V, aluminum, linear spring
Rear Brake:
V, aluminum, linear spring
Brake Levers:
V, aluminum bracket/lever
Brake Cable & Housing:
Anti-compression housing, slick cables
Wheels
Front Hub:
BioLogic Joule II dynamo
Rear Hub:
Shimano Nexus 7 freewheel
Spokes & Nipples:
Stainless steel, brass nipples
Rims:
High profile, doublewall
Tires:
Schwalbe Big Apple, 50-507, KevlarGuard puncture protection, Reflex
Transmission
Shifter(s):
Shimano Nexus 7 spd
Crankset:
Cold-forged 6061 aluminum crank arms, hand-polished
Cassette/Freewheel:
17T
Bottom Bracket:
Cartridge, sealed bearings
Chain:
408H, 3/32"
Pedals:
Folding, alloy body
Shifter Cable & Housing:
Shimano
Bells & Whistles
Bell:
Aluminum
Chainguard:
BioLogic FreeDrive
Kickstand:
Aluminum, Dacromet bolt
Clip System:
Magnetix 2.0
Luggage Socket:
Yes
Front Light:
Trelock i-Mini LED, 12 lux (w/dynamo hub)
Rear Light:
Deluxe Rear Light, LED
Fenders:
RP Chromeplastic, stainless hardware
Rack(s):
BioLogic Portage Lite 24, tubular aluminum, KlickFix compatible

*Note: These are our standard model specifications. The bike's weight and folded dimension may not include racks and fenders. The specifications for your country may differ slightly. We do our best to ensure that the specifications listed here accurately reflect the exact parts found on our production bikes. However, component changes do occur for various reasons and there may be brief delays on site updates. We reserve the right to make component changes without prior notification, which may cause discrepancies with the information listed on the web.
