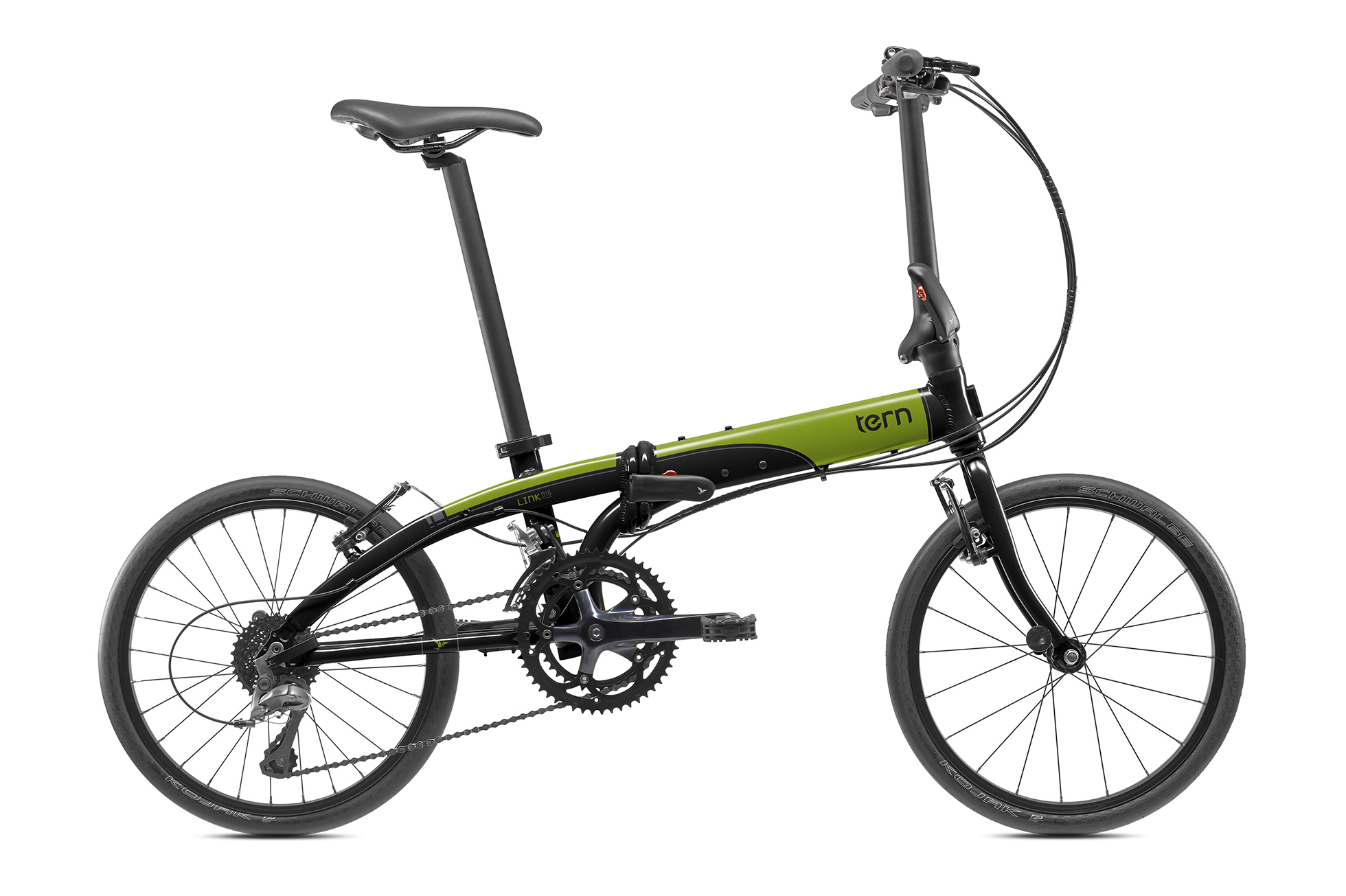

Link D16

König des Berges
CHF 1000.-

When your riding includes some serious climbs, you really appreciate the low gears. With a 26” low gear, the Link D16 has the gears to get you up most anything. Customize the Link D16 for work or play – it swings both ways.

  • Breits 16-Gang Getriebe
  • Physis 3D Lenksäule, OCL Rahmengelenk und Double Truss Technologie
  • Shimano Claris Groupset für zuverlässiges Schalten
  • Sichere Räder mit Sapim Speichen
  • Kojak Straßenreifen mit Pannenschutz
  • In 10 Sekunden faltbar
  • Optional Schutzblech für Regentage
  • 20" wheels
Around Town Räder
Der preisliche Einstieg

Technology

Product Reviews

Es lässt sich auf der Anreise in jedem Fernzug mitnehmen und vor Ort im gut getakteten ÖPNV. [You can easily take it with you on any long-distance train, as well as local public transport.]

Verträglich Reisen

Tern bikes in general are well appointed, and feature some impressive construction that makes for a comfortable ride that rivals more expensive folders.

WIRED

Specifications

General Info
Speeds:
16
Weight:
12.4 kg (27.3 lb)
Gear Inches:
26" - 93"
Folding Size:
38 × 79 × 72 cm (15 × 31.1 × 28.3 in)
Folding Time:
10 sec
Frame Sizes:
One size
Distance: Seatpost to Handlebar:
59 - 63 cm (23.2 - 24.8 in)
Distance: Saddle to Pedal:
70 - 96 cm (27.6 - 37.8 in)
Suggested Rider Height:
142 - 190 cm (55.9 - 74.8 in)
Max Load Weight:
110 kg (242.5 lb)
Frame
Frame:
Link, aluminum, patented OCL Joint and DoubleTruss technology, Igus bearings
Fork:
Integrated, hi-tensile steel
Cockpit
Handlepost:
Physis 3D, 3D forged construction, 4 patented technologies
Headset:
Flux, cartridge bearings, dual-seal technology
Handlebar:
Flat bar, 6061-AL
Grips/Bar Tape:
BioLogic Ergo, dual-density Kraton
Saddle:
Velo Sport
Seatpost:
SuperOversize, 6061-AL, micro-adjust clamp
Seatpost Clamp:
SuperOversize, 6061-AL
Brakes
Front Brake:
V, aluminum, linear spring
Rear Brake:
V, aluminum, linear spring
Brake Levers:
V, aluminum bracket/lever
Brake Cable & Housing:
Anti-compression housing, slick cables
Wheels
Front Hub:
Mini, aluminum, QR
Rear Hub:
Formula, 8 spd. cassette, QR
Spokes & Nipples:
Sapim Leader, stainless steel, brass nipples
Rims:
High profile, doublewall
Tires:
Schwalbe Kojak, 35-406, 95 psi, RaceGuard puncture protection
Transmission
Shifter(s):
Shimano trigger, 8 spd
Front Derailleur:
Microshift, forged aluminum, chain catcher
Rear Derailleur:
Shimano Claris
Crankset:
Cold-forged 6061 aluminum crank arms, hand-polished
Cassette/Freewheel:
Sunrace 8 spd., 11-30T
Bottom Bracket:
Cartridge, sealed bearings
Chain:
KMC 8 spd, narrow
Pedals:
Folding, alloy body
Shifter Cable & Housing:
SP
Bells & Whistles
Bell:
Aluminum
Kickstand:
Aluminum, Dacromet bolt
Clip System:
Magnetix 2.0
Luggage Socket:
Yes
Fenders:
RP Chromeplastic, stainless hardware

*Note: These are our standard model specifications. The bike's weight and folded dimension may not include racks and fenders. The specifications for your country may differ slightly. We do our best to ensure that the specifications listed here accurately reflect the exact parts found on our production bikes. However, component changes do occur for various reasons and there may be brief delays on site updates. We reserve the right to make component changes without prior notification, which may cause discrepancies with the information listed on the web.
