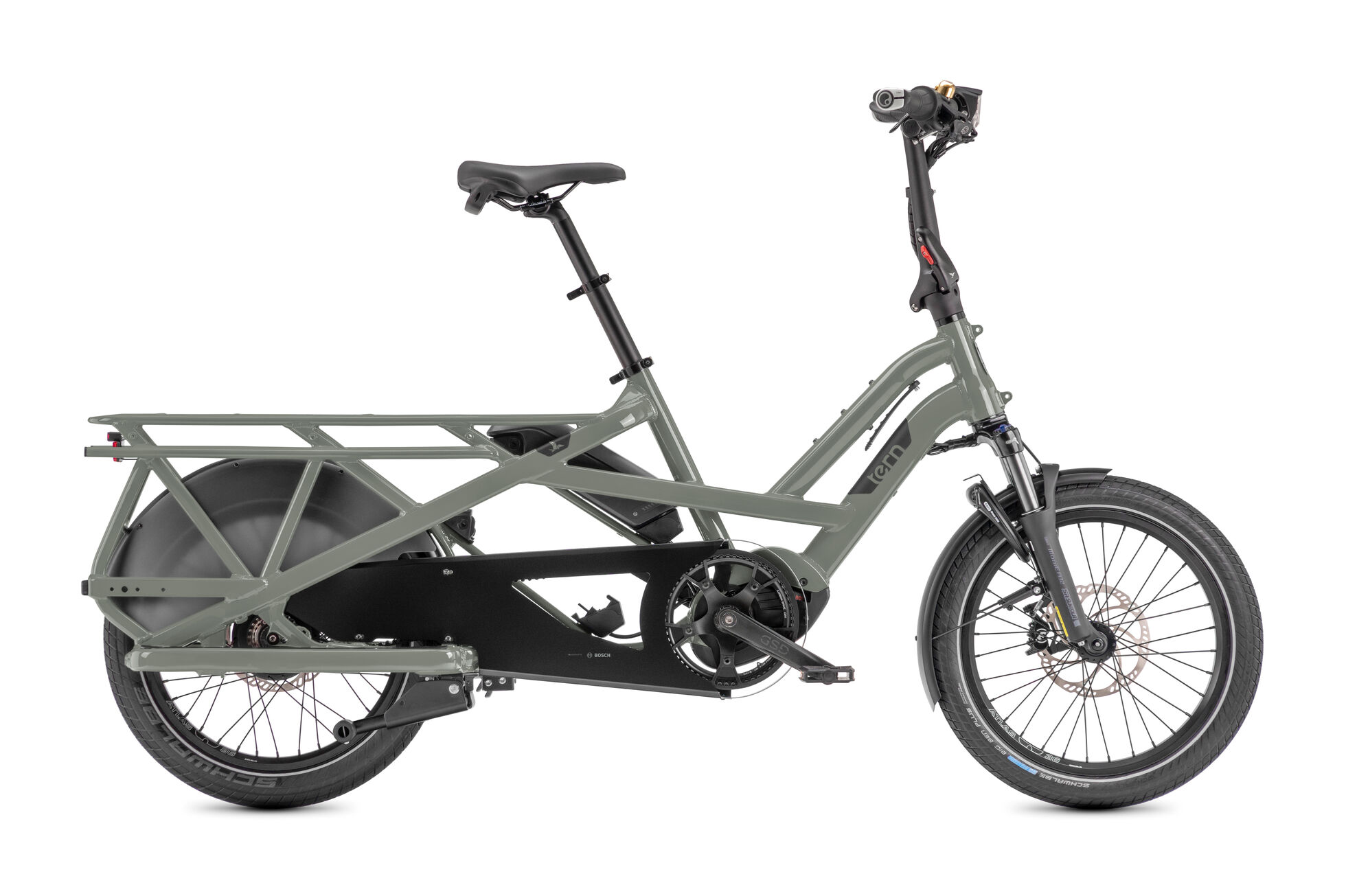

GSD S00

ENORMEMENTE ÚTIL. SORPRENDENTEMENTE PEQUEÑA.
AGOTADA TEMPORALMENTE
  • Motor Bosch® Cargo Line proporciona hasta 85 Nm de par y 400% de ayuda
  • Batería Bosch dual- (500/1000 Wh) para un rango de mas de 206 km
  • Buje Enviolo SP de variación continua (sin saltos). Trabaja bajo carga.
  • Correa de transmisión Gates® CDX silenciosa, suave, y libre de mantenimiento
  • Caballete Atlas Lockstand ™ súper resistente con bloqueo automático; mando de desbloqueo  en el manillar.
  • Portabultos trasero integrado en el cuadro superresistente y lower decks integrados también.
  • Frenos de disco hidráulicos de 4 pistones Magura® MT5 eSTOP potentes y con gran capacidad de respuesta
  • La luz de freno RearStop ™ te ayuda a señalizar las paradas de forma segura
  • Ruedas Atlas™ mejoradas con bujes mecanizados CNC personalizados para mayor resistencia y durabilidad
  • 20" wheels
Eléctricas
Alto
2021-ElektroRad-Preis-Leistung-GSD-S00

Product Reviews

Despite compact dimensions and small 20-inch wheels, the Tern can be loaded up to 200 kilos total weight. The fact that it does not seem overloaded or unstable even then speaks for the solidity of the frame.

Karl

The Tern GSD is funny-looking. But use it once, and in short order, you’ll realized its brilliance. Notice I said, “use it” instead of “ride it.” [...] The GSD is a tool, an appliance, a life accessory. It could replace a car for, I’d estimate, over 90-percent of my day-to-day needs.

Bicycling Magazine Newsletter

With a length of 1.85 meters, at least, it can be steered well and also parked in the garage in any corner. This can even be done upright to save space, because the engineers have designed several "parking feet" at the rear end of the rack, on which the bike can be jacked upright. The handlebars can also be folded away in a few easy steps. Extremely practical!

Süddeutsche Zeitung

Roadworthy additions on the LX and R14 models include a high-/low-beam headlight and, on all models, an always-on brake light that intensifies when you squeeze the Magura MT5 eStop levers.

Bicycling Magazine

It's small, yet it's big: Tern's versatile e-bike is no longer than a regular electric bike, yet it serves as a family car, shopping cart and van.

Velojournal

Specifications

General Info
Speeds:
Continuously Variable 380%
Weight:
34,98 kg (77,1 lb)
Gear Inches:
26" - 99" (2.08 - 7.91 m)
Folding Size:
176 × 40,5 × 83 cm (69,3 × 15,9 × 32,7 en)
Folding Time:
5 sec
Frame Sizes:
One size
Distance: Seatpost to Handlebar:
49 - 59 cm (19,3 - 23,2 in)
Distance: Saddle to Pedal:
69 - 105 cm (27,2 - 41,3 in)
Suggested Rider Height:
150 - 195 cm (59,1 - 76,8 in)
Max Gross Vehicle Weight:
200 kg (440,9 lb)
Max Rider Weight:
120 kg (264,6 lb)
Frame
Frame:
Tern GSD, 6061-AL, patented MultiTruss design, EFBE Tri-Test approved: 200 kg
Fork:
Suntour custom for Tern, 1.5" tapered Chromoly steerer, 32 mm stanchions, Thru-axle, 70 mm travel, EFBE approved: 200 kg
Cockpit
Handlepost:
Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 290 mm
Stem:
Tern Andros, adjustable, forged construction, patented technology
Headset:
Tern Flux Pro Taper, 1.5", angular contact bearings, Physis integrated
Handlebar:
Tern Sweep, 6061-AL, Tern Andros adapted
Grips/Bar Tape:
Ergon
Saddle:
Tern GSD by Velo, with rear handle
Seatpost:
Tern Telescope, 34.9/30.9 mm, 2014-AL
Seatpost Clamp:
Tern Collar, 6061-AL, 2pc
Brakes
Front Brake:
Magura MT5, 4-piston hydraulic disc, 180 mm rotor, Sport pads
Rear Brake:
Magura MT5, 4-piston hydraulic disc, 180 mm rotor, Sport pads
Brake Levers:
Magura MT5 e-stop, hydraulic, with brake sensor
Wheels
Front Hub:
Tern Atlas, Boost Thru-Axle, Cargo-optimized design, sealed cartridge bearing
Rear Hub:
Enviolo SP, 380% continuously variable range, Boost
Spokes and Nipples:
Stainless steel, 13G
Rims:
Tern Atlas, ultra wide 36 mm, dual reinforced joint
Tires:
F: Schwalbe Big Ben Plus, 55-406, Green Guard puncture protection, Reflex R: Tern x Schwalbe Super Moto-X, 62-406, Green Guard puncture protection, Reflex
Transmission
Shifter(s):
Enviolo, Twist
Crankset:
Tern GSD custom, Gates CDX CNC machined beltring
Cassette/Freewheel:
Gates CDX, precision CNC machined cog
Bottom Bracket:
Motor integrated
Chain:
Gates Carbon Drive CDX belt
Pedals:
Urban with non-slip surface, sealed bearings
Shifter Cable & Housing:
Jagwire LEX-SL, slick treatment, alloy ferrules
E-System
Motor:
Bosch Cargo Line, 400% Assist, 85 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US)
Battery:
Bosch Dual Battery system, 500 Wh or 1000 Wh
Display:
Bosch Purion, 4 mode selectable, walk assist
Range:
500 Wh: 50-101 km (31-63 mi); 1000 Wh: 102-206 km (63-128 mi)
Charger:
220V, 4A (EU); 100-240V, 4A (US)
Bells & Whistles
Bell:
Pitch Plus, brass
Chainguard:
Tern Custom, full chain cover
Kickstand:
Atlas Lockstand, w/ remote unlock, patented technology
Luggage Socket:
Combo Mount
Front Light:
Tern Valo Direct, 190 lumens
Rear Light:
RearStop Brake Light, Always on brake light
Fenders:
Integrated Wheel Guard, AL6061, w/ Side Skirt
Rack(s):
Frame integrated, heavy duty design; Max load weight: 100 kg (220 lb)
Accessory:
ABUS, keyed-alike with Bosch battery

*Note: These are our standard model specifications. The bike's weight and folded dimension may not include racks and fenders. The specifications for your country may differ slightly. We do our best to ensure that the specifications listed here accurately reflect the exact parts found on our production bikes. However, component changes do occur for various reasons and there may be brief delays on site updates. We reserve the right to make component changes without prior notification, which may cause discrepancies with the information listed on the web.
