Vektron P5i

Ride It, Fold It, Go Further

What makes it a P5i?

  • Powerful Bosch Performance motor provides up to 75 Nm of torque and 340% support
  • Intuvia 100 display and LED Remote offer clear info and easy control at your thumb
  • PowerPack 545/400 Wh battery lets you ride up to 120 km (75 mi)/87 km (54 mi) on a single charge
  • Shimano Nexus 5 internally geared hub with 263% gear range and twist shifter offers smooth, effortless shifting across changing terrain
  • Silent, grease-free, and low-maintenance Gates Belt Drive

Vektron highlights

  • Bosch Smart System delivers smart bike features like eBike Lock, ride customization, over-the-air updates, and navigation
  • Add the optional ConnectModule to further enhance your experience with advanced functions such as Smart Alarm and GPS tracking
  • Stiff frame & dialed-in geometry guarantees a ride that outshines many full-sized bikes
  • Folds down compact in 10 seconds to fit in cars, trains, and closets
  • Stands upright and rolls when folded—easy to move, easy to store
  • Adjustable cockpit resizes in seconds to comfortably fit riders 147 - 195 cm (4’10” - 6’5”)
  • Hydraulic disc brakes for all-weather stopping power
  • Atlas V Rear Rack with 27 kg load capacity, compatible with KLICKfix, Racktime SNAPIT 2.0, and Ortlieb Quick-Lock 2.1 & 2.2 systems
  • UL 2849-certified & tested in compliance with EN 15194, meeting strict eBike safety standards

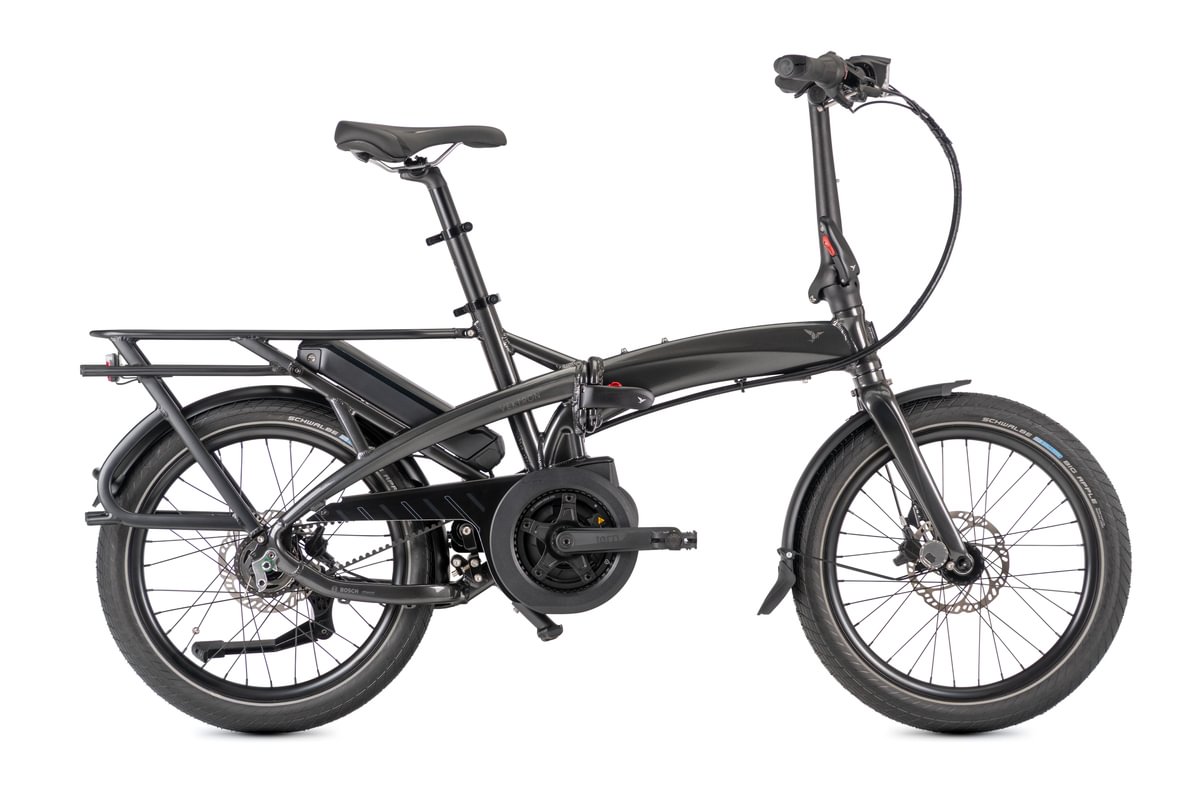

vektron cosmic black profile view photo

SPECIFICATIONS

General Info
Color(s):
Speeds:
1 x 5
Weight:
21,4 kg (47,2 lb)
Gear Inches:
34" - 90" (2.75 - 7.22 m)
Frame Sizes:
One size
Folding Size:
42 × 85 × 69 cm (16,5 × 33,5 × 27,2 sisällä)
Folding Time:
10 sec
Distance: Seatpost to Handlebar:
62 - 69 cm (24,4 - 27,2 in)
Distance: Saddle to Pedal:
67 - 110 cm (26,4 - 43,3 in)
Suggested Rider Height:
147 - 195 cm (57,9 - 76,8 in)
Max Gross Vehicle Weight:
125 kg (275,6 lb)
Max Rider Weight:
105 kg (231,5 lb)
Frame
Frame:
Tern Vektron, 6061-AL, hydroformed aluminum, OCL+ joint, 3 patented technologies
Fork:
Tern Tarsus, 6061-Al, hydroformed
Cockpit
Handlepost:
Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 350 mm
Stem:
Tern Andros, adjustable, forged construction, patented technology
Headset:
Tern Flux by FSA, cartridge bearings, Physis integrated
Handlebar:
Tern Sweep, 6061-AL, Tern Andros adapted
Grips/Bar Tape:
Ergon
Saddle:
Tern Upright by Velo
Seatpost:
Tern Telescope, 34.9/30.9 mm
Seatpost Clamp:
Tern Collar
Brakes
Front Brake:
Magura MT4, hydraulic disc
Rear Brake:
Magura MT4, hydraulic disc
Brake Levers:
Magura, hydraulic disc
Brake Cable & Housing:
Magura, hydraulic disc
Wheels
Front Hub:
Disc, aluminum
Rear Hub:
Shimano Nexus 5
Spokes & Nipples:
Stainless steel
Rims:
Kinetix Comp, for disc
Tires:
Schwalbe Big Apple, Performance Line, 55-406, puncture protection, Reflex
Transmission
Shifter:
Shimano Nexus, 5 spd
Crankset:
Tern custom, Gates CDX CNC machined beltring
Cassette/Freewheel:
Gates CDX, precision CNC machined cog
Chain:
Gates Carbon Drive CDC belt
Pedals:
MKS EZY
Shifter Cable & Housing:
Shimano
E-System
Motor:
Bosch Performance, max speed 25 kph (EU); max speed 20 mph (US)
Battery:
Bosch PowerPack
Display:
Bosch Intuvia 100 w/ LED remote, 4 mode selectable, walk assist, connectivity with Bosch eBike Flow app, electronic bike lock
Range:
545 Wh: 55-120 km (34-75 mi) 400 Wh: 40-87 km (25-54 mi)
Charger:
100-240V, 2A
Bells & Whistles
Chainguard:
Tern Custom, full chain cover
Kickstand:
URSUS, rear mount
Clip System:
Magnetix 3.0
Luggage Socket:
Yes
Front Light:
Tern Valo Direct, 190 lumens
Rear Light:
Herrmans
Fenders:
SplashGuard, stainless hardware
Rack:
Atlas V Rack, integrated 8 point mounting, 27 kg capacity

*Note: These are our standard model specifications. The bike's weight and folded dimension may not include racks and fenders. The specifications for your country may differ slightly. We do our best to ensure that the specifications listed here accurately reflect the exact parts found on our production bikes. However, component changes do occur for various reasons and there may be brief delays on site updates. We reserve the right to make component changes without prior notification, which may cause discrepancies with the information listed on the web.
