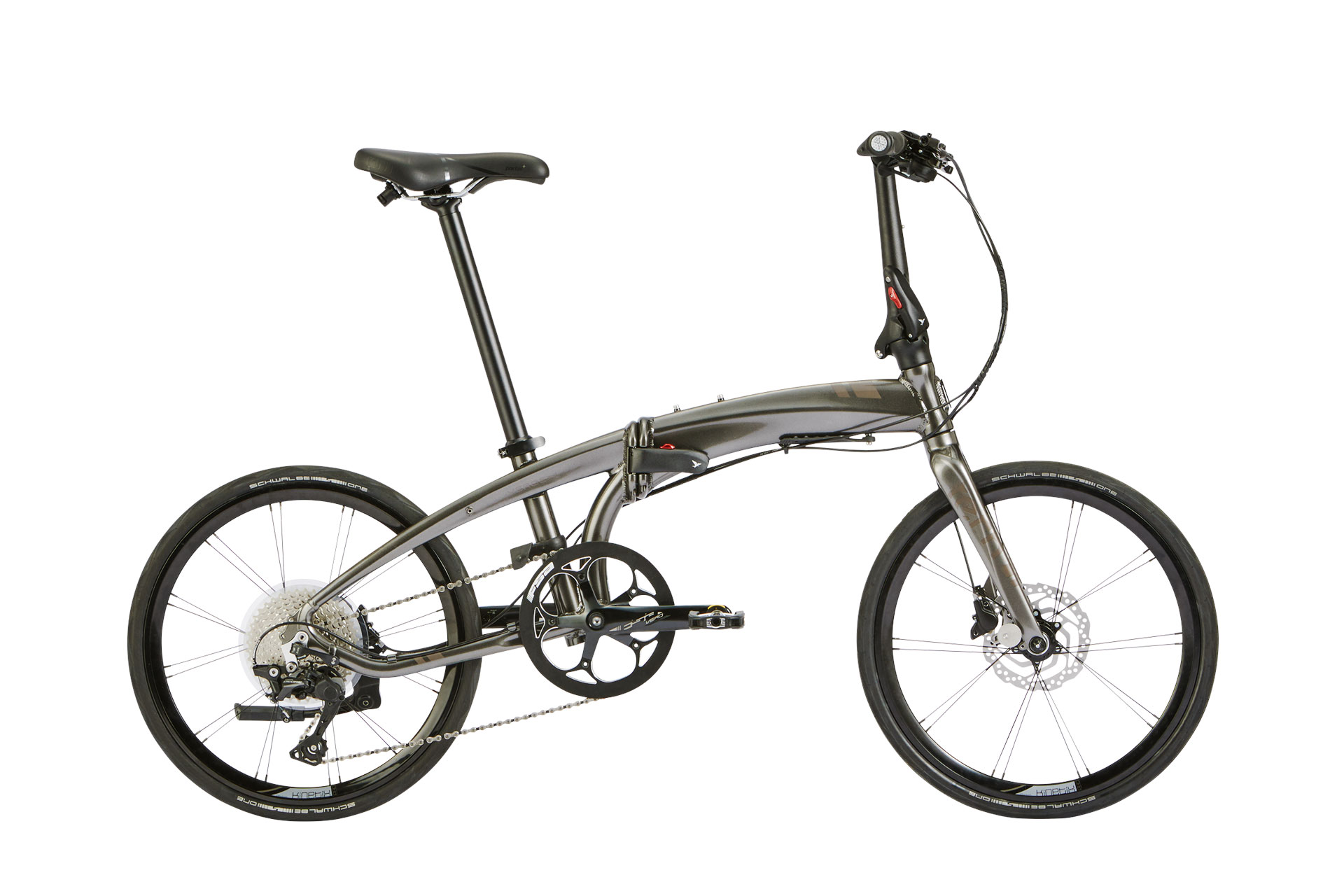

Verge P10

ヴァージュ P10 / Rocket Science
2022年8月17日以降の新価格 ¥199,540 (税込)

451の上位グレードホイールと最上位モデルの高剛性フロントフォークを搭載。
フロントシングルながらワイドギアを搭載することでフロントダブル並みの走行性能を併せ持ち、油圧ディスクブレーキが雨天時の制動力を高める。

  • Kinetix Pro Wheel DISC, Shimano BR-M315 & SM-RT10 160mm:Rolf designのペアードスポークにより、左右で2本1組対になる構造を使い、圧倒的な少スポーク数で必要な張力を補った軽量ホイールを搭載。適度なリムハイトとポイントカラーのハブが目を引きます。さらに、雨の日も制動力が低下しにくいディスクブレーキシステムを採用しています。また、ハイドロフォーミング製法をフレームだけでなくフォークにも採用し、軽量性と高剛性を実現しライダーの走りを高次元へと導きます。
  • Shimano Deore RD-M610, 10spd.:11-40Tの超ワイドギアはフロントシングルながら平坦から坂道まで幅広くカバー。また、MTBの中核グレードであるShimano Deore RDは、確実性のあるシフティングとコストパフォーマンスが魅力です。
  • Physis 3D T-Bar, aluminum, 290mm / 12deg., sand black:451ホイールの採用に合わせ、ハンドルポスト長でポジションを最適化し、。290mmでよりスポーティに。またVROステムを標準装備することで-45度~+90度まで調整が可能となり、適切なポジションを選択することができます。
  • Tern Porter+, PrimeGel padding Saddle & BioLogicArx Grips w/ T-Tool:新開発のサドルは、先端下部にクッション素材を取り付けることで肩に担いで持ち運びができます。また厚みのあるパットが地面からの衝撃を吸収し、ライダーへの疲労軽減に役立ちます。

※掲載製品写真/重量(全てペダルレス)/サイズ等は全てサンプル車両に基づくため、量産品では多少変更される場合があります。

※新素材や部品の改良・開発などにより、予告なく価格及び一部の仕様が変更される場合があります。

※実際の商品には、ベル・リフレクターなどの保安部品が付属されます。

※Tern品質保証規定に関しては、商品に同梱しております。

Verge P10: Best Folding Bike for Speed & Comfort
  • 451 wheels
Urban Performance
Mid-Range

Technology

Product Reviews

Die 22-Zoll-Laufrädern erwiesen sich im Praxistext über mehr als 200 Kilometern entlang Taiwans Ostküste als tauglich für Langstrecken wie für den Stadtverkehr. (…) Insofern hat sich das Konzept im Praxistest voll bewährt. [The 22 inch wheels (451) turned out to be very suitable for riding more than 200 kilometers along the east coast of Taiwan]

Cyclinfo.ch

So is the Tern P10 'sick'? Well, yes, probably - especially if a little extra speed, control and comfort constitutes 'sickness'.

Urban Cyclist

Specifications

General Info
Speeds:
1 x 10
Weight:
11.7 kg (25.8 lb)
Gear Inches:
26" - 95" (2.08 - 7.57 m)
Folding Size:
380 × 800 × 740 mm (15 × 31.5 × 29.1 in)
Folding Time:
10 seconds
Frame Sizes:
One size
Distance: Seatpost to Handlebar:
61 - 66 cm (24 - 26 in)
Distance: Saddle to Pedal:
65 - 91 cm (25.6 - 35.8 in)
Suggested Rider Height:
142 - 190 cm (55.9 - 74.8 in)
Max Gross Vehicle Weight:
120 kg (264.6 lb)
Max Load Weight:
105 kg (231.5 lb)
Max Rider Weight:
105 kg (231.5 lb)
Frame
Frame:
Tern Verge, hydroformed aluminum, 3 patented technologies
Fork:
Tern Tarsus, 6061-Al, hydroformed
Cockpit
Handlepost:
Tern Physis 3D, 3D forged, 5 patented technologies
Stem:
Syntace VRO, adjustable, Built for Tern
Handlebar:
Kinetix Comp, double-butted 6061-Al, for VRO
Grips/Bar Tape:
BioLogic Arx
Saddle:
Tern Porter+, patented GripPad design, PrimeGel padding
Seatpost:
Tern Strut, 2014-Al, 2 bolt clamp
Brakes
Front Brake:
Shimano, hydraulic disc
Rear Brake:
Shimano, hydraulic disc
Brake Levers:
Shimano, hydraulic disc
Wheels
Front Wheel:
Kinetix Pro Disc, Paired Spoke technology, Shimano Centerlock, 20H
Rear Wheel:
Kinetix Pro Disc, Paired Spoke technology, Shimano Centerlock, 20H
Tires:
Schwalbe One, 451 , 20×1.1/8 F/V
Transmission
Shifter(s):
Shimano Deore, 1 x 10 spd
Rear Derailleur:
Shimano Deore Shadow
Crankset:
FSA Vero, Built for Tern, 53T
Cassette/Freewheel:
11-40T, 10 spd
Pedals:
LiteForm QR, alloy body, QR right/standard left
Bells & Whistles
Kickstand:
Rear mount, Pletscher design
Clip System:
Magnetix 2.0
Luggage Socket:
Yes
Rear Light:
Biologic TailLight
Accessory:
Pedal Holder, Pedal Holder

*Note: These are our standard model specifications. The bike's weight and folded dimension may not include racks and fenders. The specifications for your country may differ slightly. We do our best to ensure that the specifications listed here accurately reflect the exact parts found on our production bikes. However, component changes do occur for various reasons and there may be brief delays on site updates. We reserve the right to make component changes without prior notification, which may cause discrepancies with the information listed on the web.
