Eclipse D16

Critical Mass

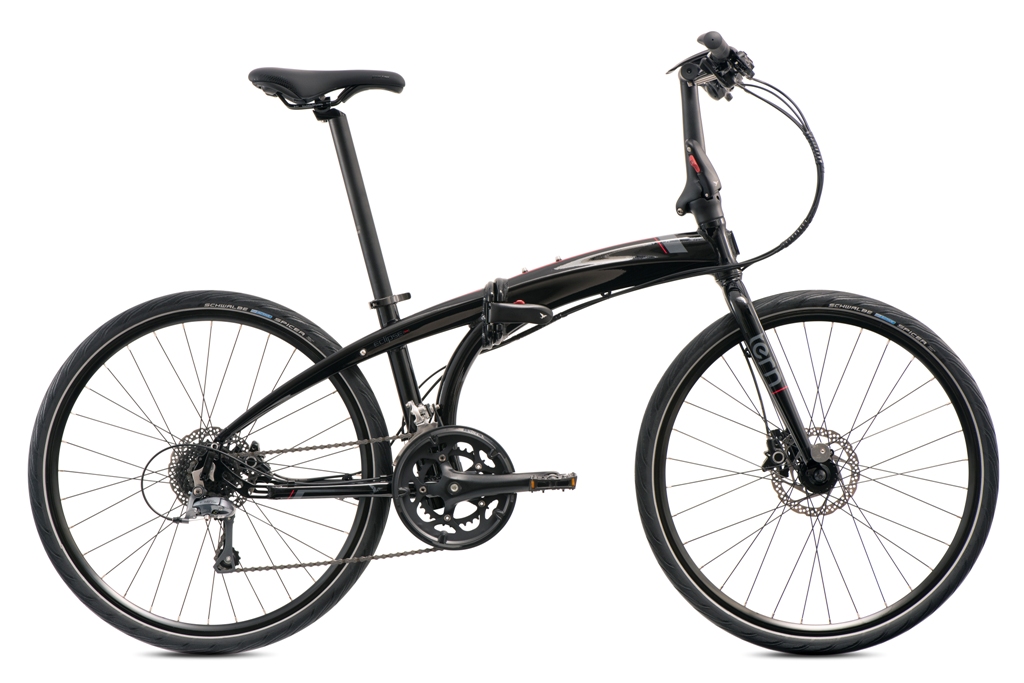

Eclipse D16是Tern全系列車款中性價比最高的車款。26“輪徑, 油壓碟煞, 以及超穩固的液壓成型Eclipse車架, 滿足你所有的願望。然而, 價位卻非常能負擔。

  • 最好騎的Tern入門車款, 多虧26”輪徑及我們獨特的摺疊技術
  • 10秒內摺疊方便攜帶收納
  • Andros 立管, 不需工具就能輕鬆調整你喜好的騎行姿勢
  • 可選配土除
  • 26" wheels
競速車款
中階

Technology

Specifications

General Info
Speeds:
2 x 8
Weight:
14.8 kg (32.6 lb)
Gear Inches:
29" - 115" (2.28 - 9.14 m)
Folding Size:
440 × 910 × 750 mm (17.3 × 35.8 × 29.5 in)
Folding Time:
10 seconds
Frame Sizes:
One size
Distance: Seatpost to Handlebar:
63 - 70 cm (24.8 - 27.6 in)
Distance: Saddle to Pedal:
79.5 - 105 cm (31.3 - 41.3 in)
Suggested Rider Height:
148 - 195 cm (58.3 - 76.8 in)
Max Gross Vehicle Weight:
Max Rider Weight:
Frame
Frame:
Tern Eclipse, hydroformed aluminum, 3 patented technologies
Fork:
Integrated, hi-tensile steel
Cockpit
Handlepost:
Tern Physis 3D, 3D forged, 5 patented technologies
Stem:
Tern Andros, adjustable, forged construction, patented technology
Headset:
Flux, cartridge bearings, Physis integrated
Handlebar:
Flat bar, 6061-Al
Grips/Bar Tape:
Velo ergonomic, lock-on
Saddle:
Tern Porter, patented GripPad design
Seatpost:
SuperOversize, 6061-Al, micro-adjust clamp
Seatpost Clamp:
SuperOversize, 6061-Al
Brakes
Front Brake:
Shimano, hydraulic disc
Rear Brake:
Shimano, hydraulic disc
Brake Levers:
Shimano, hydraulic disc
Brake Cable & Housing:
Shimano
Wheels
Front Hub:
Shimano, Centerlock disc
Rear Hub:
Shimano, Centerlock disc
Spokes and Nipples:
Stainless steel
Rims:
Doublewall aluminum, disc only
Tires:
Schwalbe Spicer, 40-559, puncture protection, Reflex
Transmission
Shifter(s):
Shimano, trigger, 2 x 8 spd
Front Derailleur:
Shimano Altus
Rear Derailleur:
Shimano Claris
Crankset:
Forged 6061 aluminum crank, 50/34T
Cassette/Freewheel:
Shimano, 11-30T, 8 spd
Bottom Bracket:
Cartridge, sealed bearings
Chain:
KMC 8 spd
Pedals:
Folding, alloy body
Shifter Cable & Housing:
SP
Bells & Whistles
Bell:
Aluminum
Kickstand:
Deluxe center mount
Clip System:
Magnetix 2.0
Luggage Socket:
Yes
Fenders:
Opt: RP Chromeplastic, stainless hardware

*Note: These are our standard model specifications. The bike's weight and folded dimension may not include racks and fenders. The specifications for your country may differ slightly. We do our best to ensure that the specifications listed here accurately reflect the exact parts found on our production bikes. However, component changes do occur for various reasons and there may be brief delays on site updates. We reserve the right to make component changes without prior notification, which may cause discrepancies with the information listed on the web.
