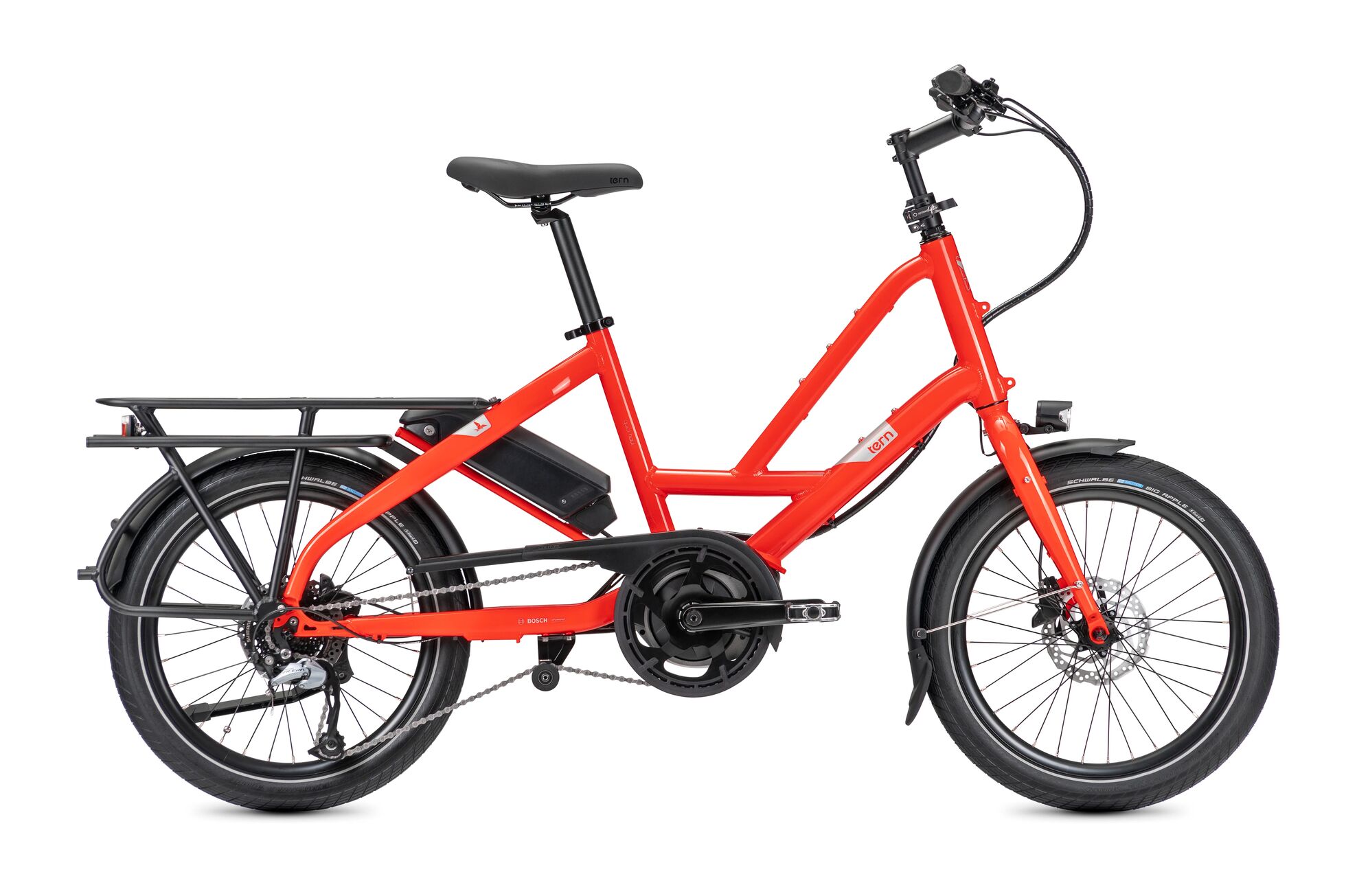

Quick Haul D8

Simplemente capaz
Disponible finales de año de 2022

¿Qué la hace una D8?

  • El motor Bosch Active Line Plus proporciona hasta 50 Nm de par y un 270 % de asistencia
  • Grupo Shimano Altus de 1x8 velocidades con palanca de cambios de gatillos

Aspectos destacados de la Quick Haul

  • Capacidad de carga: 50 kg en el portabultos trasero, más 20 kg adicionales en el portabultos delantero, opcional
  • Se adapta a ciclistas de 160 a 195 cm y también a ciclistas de 145 a 180 cm cuando está equipado con una tija de sillín más corta de 350 mm
  • Gran cantidad de accesorios disponibles para transportar carga y niños: cree fácilmente su combinación perfecta
  • La altura ultra baja de 490 mm facilita el montaje y (des)montaje y la espera en las paradas
  • Frenos de disco hidráulicos Shimano para una potencia de frenado fiable, incluso con mucha carga y marcha rápida
  • Seguridad y fiabilidad comprobadas: el cuadro y la horquilla están probados por EFBE hasta los 150 kg de peso bruto máximo del vehículo
Quick Haul D8 Merlot
  • 20" wheels
Eléctricas
Rango medio

Product Reviews

As an all-rounder bike for those who want to do errands, go shopping, carry a kid, (...) the Quick Haul is one of the most interesting options in terms of price and practicality.

Due Ruote

Tern also puts their bikes through the toughest tests in the industry, and often goes further by making up their own tests when they think existing standards are not stringent enough. So for me, when I put my 2-year-old son on the back, I felt good knowing all the lengthy tests this bike had gone through. So whether you are putting your best furry friend, your kid, or other precious cargo on the back, Tern has many options to keep them safe and comfortable.

BikeRumor

Should [the E-Bike Act] receive approval in the USA, qualifying individuals could receive up to 30 per cent tax credit. This can be applied to the purchase of a new electric bike, with up to $900 of benefit value. The Quick Haul enables you to get the maximum possible tax credit due to its pricing, giving you the most bike for your buck.

BikeRadar

Specifications

General Info
Speeds:
1 x 8
Weight:
22,8 kg (50,3 lb)
Gear Inches:
31" - 95" (2.45 - 7.57 m)
Frame Sizes:
One size
Distance: Seatpost to Handlebar:
60 - 64 cm (23,6 - 25,2 in)
Distance: Saddle to Pedal:
68 - 110 cm (26,8 - 43,3 in)
Suggested Rider Height:
160 - 195 cm (63 - 76,8 in)
Max Gross Vehicle Weight:
150 kg (330,7 lb)
Max Rider Weight:
120 kg (264,6 lb)
Frame
Frame:
Tern Quick Haul, Patented Design, 6061-AL, EFBE Tri-Test approved: 150 kg
Fork:
Cargo, steel, EFBE approved: 150 kg
Cockpit
Stem:
Speedlifter, 150 mm extension, 3D Forged stem, 31.8
Headset:
TH, cartridge bearings
Handlebar:
Low riser, 31.8, 6061-AL
Grips/Bar Tape:
Velo ergonomic, lock-on
Saddle:
Velo Comfort
Seatpost:
31.6 mm, 6061-AL, micro-adjust clamp
Seatpost Clamp:
Tern Collar
Brakes
Front Brake:
Shimano, hydraulic disc
Rear Brake:
Shimano, hydraulic disc
Brake Levers:
Shimano, hydraulic disc
Brake Cable & Housing:
Shimano, hydraulic disc
Wheels
Front Hub:
Shimano disc
Rear Hub:
Shimano disc
Spokes and Nipples:
Stainless steel
Rims:
Kinetix Comp, for disc
Tires:
Schwalbe Big Apple, 55-406, puncture protection, Reflex
Transmission
Shifter(s):
Shimano Altus, 1 x 8 spd, trigger
Rear Derailleur:
Shimano Altus Shadow
Crankset:
Tern custom, forged 6061-AL crankarm
Cassette/Freewheel:
Shimano 11-34T, 8 spd
Bottom Bracket:
Motor integrated
Chain:
KMC for eBike, 8 spd
Pedals:
Urban with non-slip surface
Shifter Cable & Housing:
SP
E-System
Motor:
Bosch Active Line Plus, 270% Assist, 50 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US)
Battery:
Bosch PowerPack 400
Display:
Bosch Purion
Range:
400 Wh: 54 - 105 km (33.6 - 65.2 mi)
Charger:
Compact Charger, 100-240V, 2A
Bells & Whistles
Bell:
Aluminum
Chainguard:
SKS Chainblade
Kickstand:
Pletscher design, rear mount
Luggage Socket:
Combo Mount
Front Light:
Herrmans, 120 lumens
Rear Light:
Herrmans
Fenders:
Chromeplastic, stainless hardware
Rack(s):
Atlas Q Rack, UpperDeck Mount System, Vertical Parking, 50 kg capacity

*Note: These are our standard model specifications. The bike's weight and folded dimension may not include racks and fenders. The specifications for your country may differ slightly. We do our best to ensure that the specifications listed here accurately reflect the exact parts found on our production bikes. However, component changes do occur for various reasons and there may be brief delays on site updates. We reserve the right to make component changes without prior notification, which may cause discrepancies with the information listed on the web.
