What Makes it a D8?

  • Bosch Active Line Plus motor provides up to 50 Nm of torque and 270% support
  • 1x8-speed Shimano Altus groupset with trigger shifter

Quick Haul Highlights

  • Cargo capacity: 50 kg on the rear rack, plus an additional 20 kg with optional front rack
  • Fits riders 160 - 195 cm (5’3” - 6’5”), and also riders 145 - 180 cm (4’9” - 5'11") when equipped with a shorter, 350 mm seatpost
  • Lots of available kid- and cargo-carrying accessories—easily create your perfect setup
  • Ultra-low 490 mm standover height makes (dis)mounting and waiting at stops easier
  • Shimano hydraulic disc brakes for reliable stopping power—even when heavily loaded and riding fast
  • Proven safe and reliable: frame and fork are EFBE-tested up to the 150 kg (331 lb) Maximum Gross Vehicle Weight

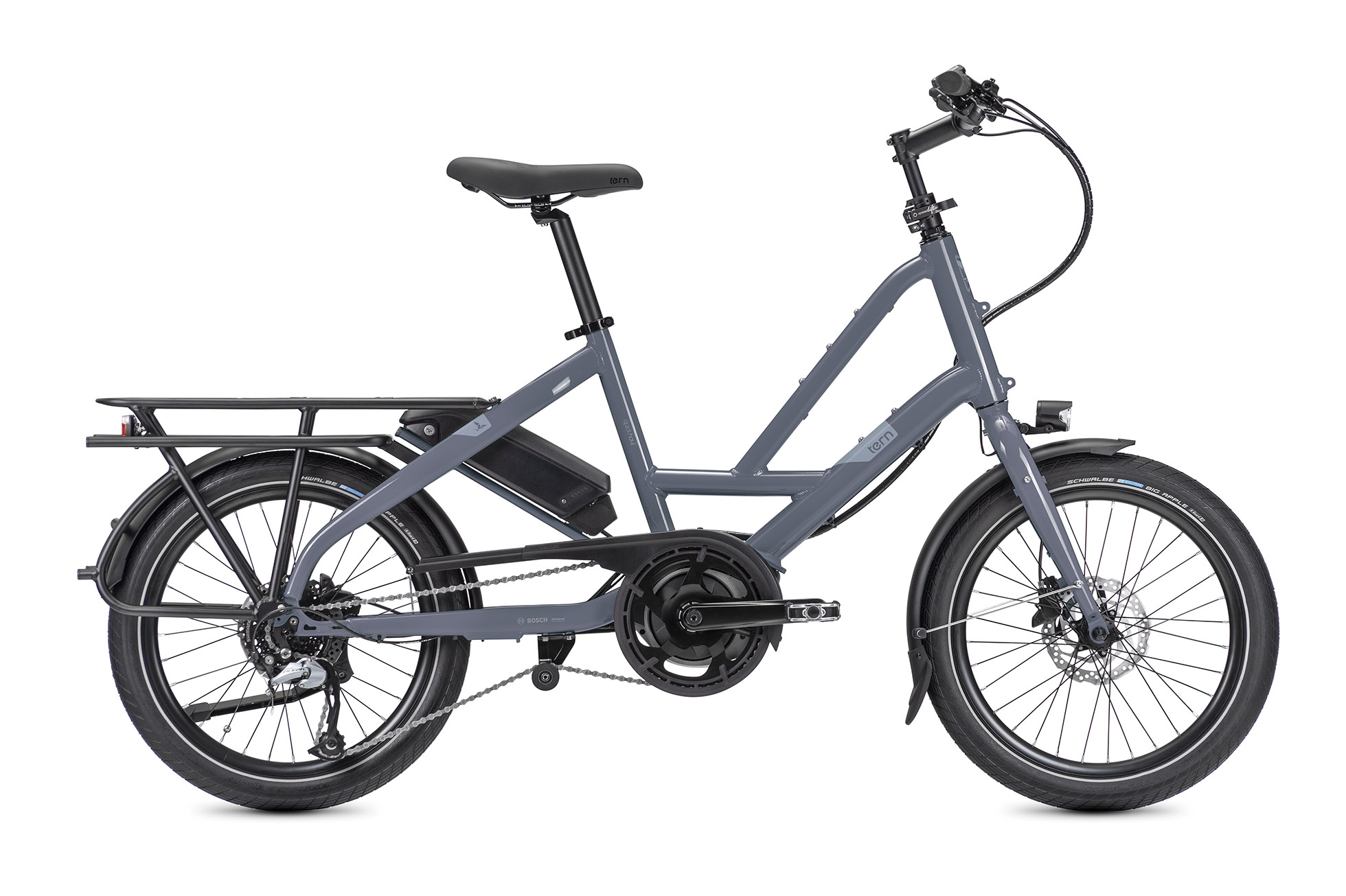

Quick Haul D8 Blue Gray
  • 20"
Electric
Mid-Range

Product Reviews

As an all-rounder bike for those who want to do errands, go shopping, carry a kid, (...) the Quick Haul is one of the most interesting options in terms of price and practicality.

Due Ruote

Should [the E-Bike Act] receive approval in the USA, qualifying individuals could receive up to 30 per cent tax credit. This can be applied to the purchase of a new electric bike, with up to $900 of benefit value. The Quick Haul enables you to get the maximum possible tax credit due to its pricing, giving you the most bike for your buck.

BikeRadar

Tern also puts their bikes through the toughest tests in the industry, and often goes further by making up their own tests when they think existing standards are not stringent enough. So for me, when I put my 2-year-old son on the back, I felt good knowing all the lengthy tests this bike had gone through. So whether you are putting your best furry friend, your kid, or other precious cargo on the back, Tern has many options to keep them safe and comfortable.

BikeRumor

SPECIFICATIONS

General Info
Speeds:
1 x 8
Weight:
22.8 kg (50.3 lb)
Gear Inches:
31" - 95" (2.45 - 7.57 m)
Frame Sizes:
One size
Distance: Seatpost to Handlebar:
60 - 64 cm (23.6 - 25.2 in)
Distance: Saddle to Pedal:
68 - 110 cm (26.8 - 43.3 in)
Suggested Rider Height:
160 - 195 cm (63 - 76.8 in)
Max Gross Vehicle Weight:
150 kg (330.7 lb)
Max Rider Weight:
120 kg (264.6 lb)
Frame
Frame:
Tern Quick Haul, Patented Design, 6061-AL, EFBE Tri-Test approved: 150 kg
Fork:
Cargo, steel, EFBE approved: 150 kg
Cockpit
Stem:
Speedlifter, 150 mm extension, 3D Forged stem, 31.8
Headset:
TH, cartridge bearings
Handlebar:
Low riser, 31.8, 6061-AL
Grips/Bar Tape:
Velo ergonomic, lock-on
Saddle:
Velo Comfort
Seatpost:
31.6 mm, 6061-AL, micro-adjust clamp
Seatpost Clamp:
Tern Collar
Brakes
Front Brake:
Shimano, hydraulic disc
Rear Brake:
Shimano, hydraulic disc
Brake Levers:
Shimano, hydraulic disc
Brake Cable & Housing:
Shimano, hydraulic disc
Wheels
Front Hub:
Shimano disc
Rear Hub:
Shimano disc
Spokes & Nipples:
Stainless steel
Rims:
Kinetix Comp, for disc
Tyres:
Schwalbe Big Apple, 55-406, puncture protection, Reflex
Transmission
Shifter(s):
Shimano Altus, 1 x 8 spd, trigger
Rear Derailleur:
Shimano Altus Shadow
Crankset:
Tern custom, forged 6061-AL crankarm
Cassette/Freewheel:
Shimano 11-34T, 8 spd
Bottom Bracket:
Motor integrated
Chain:
KMC for eBike, 8 spd
Pedals:
Urban with non-slip surface
Shifter Cable & Housing:
SP
E-System
Motor:
Bosch Active Line Plus, 270% Assist, 50 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US)
Battery:
Bosch PowerPack 400
Display:
Bosch Purion
Range:
400 Wh: 54 - 105 km (33.6 - 65.2 mi)
Charger:
Compact Charger, 100-240V, 2A
Bells & Whistles
Bell:
Aluminum
Chainguard:
SKS Chainblade
Kickstand:
Pletscher design, rear mount
Luggage Socket:
Combo Mount
Front Light:
Herrmans, 120 lumens
Rear Light:
Herrmans
Fenders:
Chromeplastic, stainless hardware
Rack(s):
Atlas Q Rack, UpperDeck Mount System, Vertical Parking, 50 kg capacity

*Note: These are our standard model specifications. The bike's weight and folded dimension may not include racks and fenders. The specifications for your country may differ slightly. We do our best to ensure that the specifications listed here accurately reflect the exact parts found on our production bikes. However, component changes do occur for various reasons and there may be brief delays on site updates. We reserve the right to make component changes without prior notification, which may cause discrepancies with the information listed on the web.
