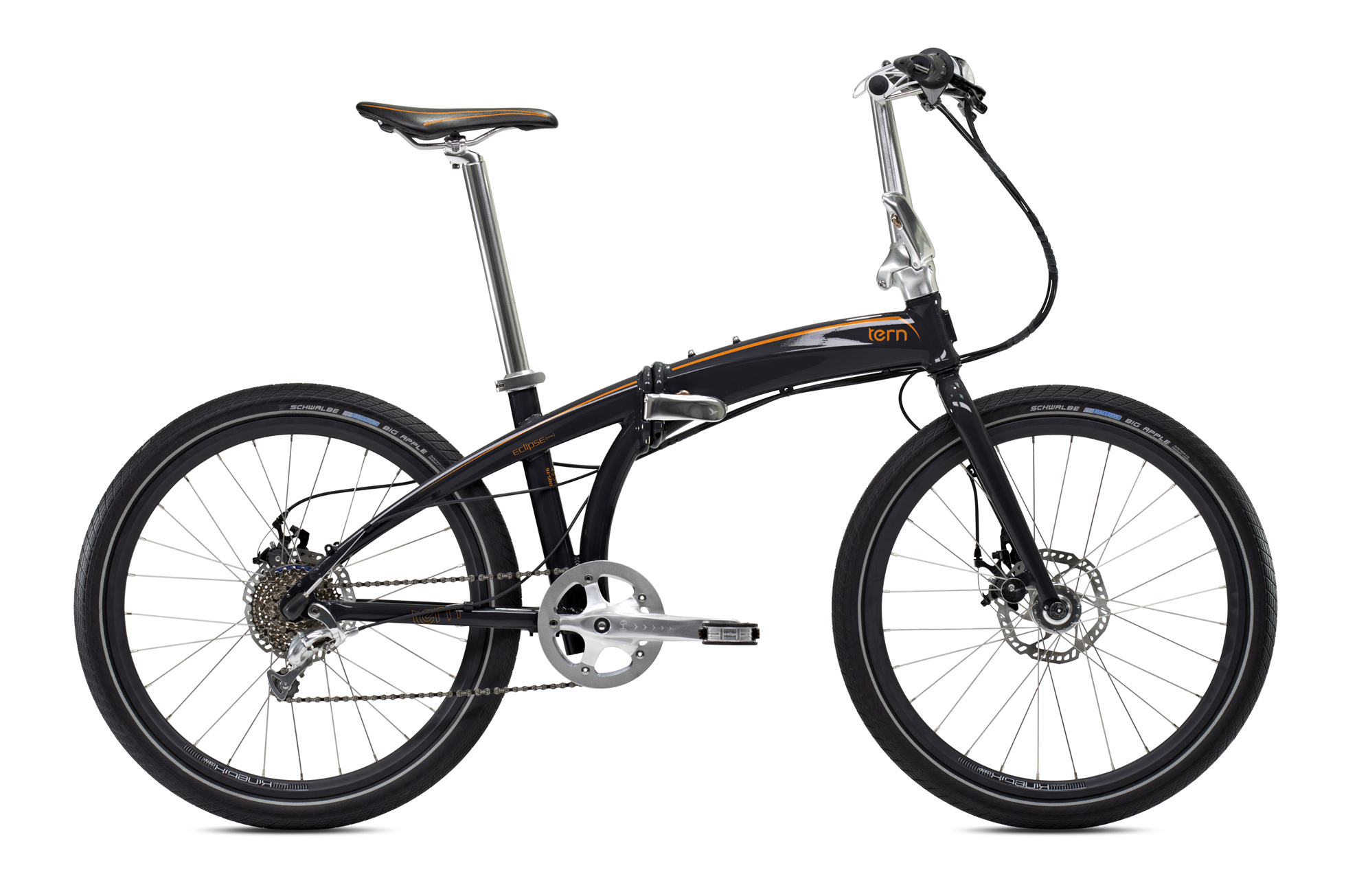

Eclipse P24h

The Go Anywhere
Why Eclipse
Specs
Accessories
Support
Find a Dealer

이 모델은 당신이 하고자 하는 모든 종류의 라이딩에 적합하도록 만들어진 자전거이다. 미니멀리스트가 되어라. 이 자전거는 로드 바이크의 고급 장비를 갖춘 빠른 통근용 자전거이다. 장거리 투어를 해봐라. 해보면 조정 가능한 스템과 19인치 오르막 기어에 감사하게 될 것이다. 접히므로 어디든 가져갈 수 있다. 당신의 삶과 자전거 타는 방식에 들어 맞는 멋진 자전거이다.

  • 24" wheels
도심형 퍼포먼스
중급

Technology

Product Reviews

Specifications

General Info
Speeds:
24
Weight:
14.7 kg (32.4 lb)
Gear Inches:
21" - 110"
Folding Size:
420 × 890 × 760 mm (16.5 × 35 × 29.9 다음에 포함됨)
Folding Time:
10 sec
Frame Sizes:
One size
Distance: Seatpost to Handlebar:
57 - 73 cm (22.4 - 28.7 in)
Distance: Saddle to Pedal:
79.5 - 105 cm (31.3 - 41.3 in)
Suggested Rider Height:
148 - 195 cm (58.3 - 76.8 in)
Max Load Weight:
115 kg (253.5 lb)
Frame
Frame:
Eclipse, hydroformed 7005-AL, patented OCL Joint and DoubleTruss technology
Fork:
Aero, aluminum, 6061-AL
Cockpit
Handlepost:
Physis T-Bar, 2D forged aluminum, 4 patented technologies
Stem:
Andros, 3Djust technology, Norglide bearings
Headset:
Flux, cartridge bearings, Tri-seal technology
Handlebar:
Kinetix Comp, double-butted 6061-AL
Grips/Bar Tape:
BioLogic Arx w/ T-Tool
Saddle:
BioLogic Impel
Seatpost:
BioLogic PostPump 2.0, forged clamp
Seatpost Clamp:
Syntace, stainless bushing
Brakes
Front Brake:
Disc, ball bearing
Rear Brake:
Disc, ball bearing
Brake Levers:
Avid FR5
Brake Cable & Housing:
LiveWire 7.0, a LiveWire 7.0, anti-compression housing, slick cables, Dupont L3 lubricant, alloy ferrulesnti-compression housing, slick cables, Dupont L3 lubricant, alloy ferrules
Wheels
Front Hub:
Formula disc, aluminum, QR
Rear Hub:
Neos Triniti, 3 x 8 spd.
Spokes & Nipples:
stainless steel, brass nipples
Rims:
Kinetix Comp, doublewall, powder finish
Tires:
New Schwalbe Big Apple, 50-507, Kevlar puncture protection, Reflex
Transmission
Shifter(s):
SRAM MRX Comp, 3 x 8
Rear Derailleur:
Neos 3.0, forged aluminum, low-profile design, RapidRise
Crankset:
Kinetix Supra, forged 6061 cranks, 6061 chain ring, CNC chainguard
Cassette/Freewheel:
Shimano 8 spd., 11-32T
Bottom Bracket:
Cartridge, sealed bearings
Chain:
Taya Octo, 8 spd.
Pedals:
Folding, alloy body
Shifter Cable & Housing:
LiveWire 7.0, sealed anti-compression housing w/ Dupont L3 lubricant
Bells & Whistles
Kickstand:
Premium single, aluminum
Clip System:
Magnetix 2.0
Luggage Socket:
Yes
Rear Light:
BioLogic TailLight
Fenders:
Optional
Rack(s):
Optional

*Note: These are our standard model specifications. The bike's weight and folded dimension may not include racks and fenders. The specifications for your country may differ slightly. We do our best to ensure that the specifications listed here accurately reflect the exact parts found on our production bikes. However, component changes do occur for various reasons and there may be brief delays on site updates. We reserve the right to make component changes without prior notification, which may cause discrepancies with the information listed on the web.
