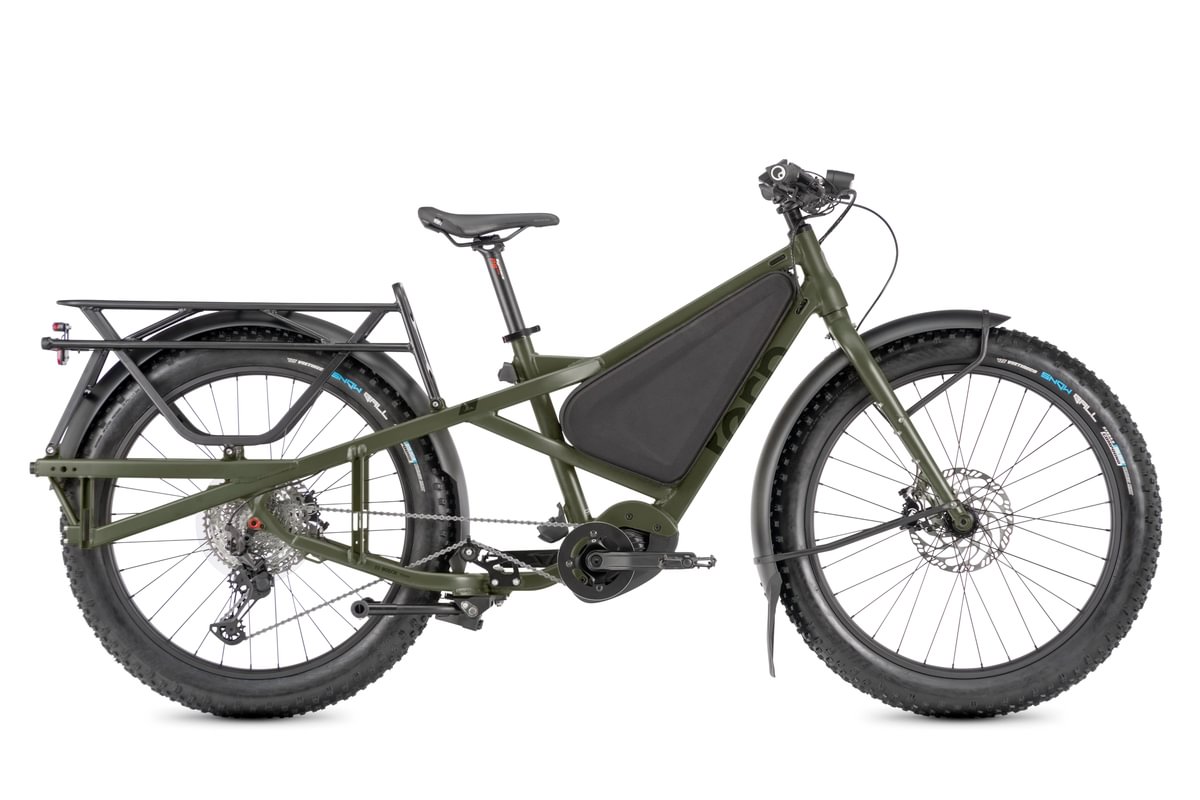

Orox S12 (27.5")
Utforsk ny områder
Hva gjør den til en S12?
- Shimano Deore XT 1 x 12-trinns gruppesett for rask og presis giring
- Tilpassede 27,5" Schwalbe Johnny Watts terrengdekk eller 27,5" piggkompatible Vee Snowball-dekk tåler selv de tøffeste forhold
Orox høydepunkter
- Bakkeangripende Bosch Performance Line CX-motor gir opptil 85 Nm dreiemoment og 340 % støtte
- Dobbeltbatterisystem trekker fra opptil to batterier for ultralang rekkevidde
- Bosch Smart System med ConnectModule lar deg få tilgang til og kontrollere avanserte funksjoner som eBike Alarm og eBike Tracking
- Sprut- og støvtett Kiox 300 fargeskjerm med LED-fjernkontroll for intuitiv kontroll
- Kraftige og responsive Magura 4-stempel hydrauliske bremser
- EFBE-sertifisert sikker og pålitelig for stor last, med en maksimal totalvekt på 210 kg (462 lb) på fortau og 180 kg (397 lb) i terreng
- To rammestørrelser for å passe syklister på 155 - 195 cm (5'1" - 6'5") høye, som veier opptil 130 kg (286 lb)
- 27.5" wheels
Electric
Top-Tier
Specifications
General Info
Speeds:
1 x 12
Weight:
M: 37,1 kg (81,8 lb)
Gear Inches:
18" - 95" (1.48 - 7.54 m)
Frame Sizes:
M, L
Distance: Seatpost to Handlebar:
M: 61 - 66 cm (24 - 26 in)
Distance: Saddle to Pedal:
M: 71 - 99 cm (28 - 39 in)
Suggested Rider Height:
M: 155 - 185 cm (61 - 72,8 in)
Max Gross Vehicle Weight:
On-road: 210 kg (463 lb)
;
Off-road: 180 kg (396,8 lb)
Max Rider Weight:
130 kg (286,6 lb)
Frame
Frame:
Tern Orox, 6061-AL, patented design, EFBE tested and approved
Fork:
Atlas X, butted chromoly steel, EFBE tested and approved
Cockpit
Stem:
Level Nine, 45 mm (M), 65 mm (L), Syntace VR-3 certified
Headset:
FSA, 1.5", angular contact bearings
Handlebar:
Level Nine, AL-7050, 800 mm, riser, eMTB approved
Grips/Bar Tape:
Ergon
Saddle:
Ergon SM, E-Mountain Sport, CrMo Rail
Seatpost:
Syntace P6 AL7050, 34.9 mm, Syntace VR-3 SP-approved
Seatpost Clamp:
Tern Collar
Brakes
Front Brake:
Magura MT5, 4-piston hydraulic disc, 203 mm rotor
Rear Brake:
Magura MT5, 4-piston hydraulic disc, 203 mm rotor
Brake Levers:
Magura MT5, hydraulic
Brake Cable & Housing:
Magura, hydraulic
Wheels
Front Wheel:
Tern Atlas X, ultra-heavy duty cargo construction, 27.5"
Rear Wheel:
Tern Atlas X, ultra-heavy duty cargo construction, 27.5"
Front Hub:
Tern Atlas X, CNC body, disc cooling fins, Boost Thru-Axle, integrated Tern Tool with 5mm hex/T20 Torx
Rear Hub:
Tern Atlas X, CNC body, disc cooling fins, Boost Thru-Axle, Syntace X-12 standard
Spokes & Nipples:
Stainless steel
Rims:
Tern Atlas X, custom doublewall construction
Tires:
Vee Snow Ball, 27.5 x 4 or Schwalbe Johnny Watts 27.5" x 4"
Transmission
Shifter(s):
Shimano Deore, 1 x 12 spd
Rear Derailleur:
Shimano Deore XT Shadow+
Crankset:
Tern Orox custom
Cassette/Freewheel:
Shimano 10-51T, 12 spd
Bottom Bracket:
Motor integrated
Chain:
KMC 12 spd, for eBike, EPT corrosion resistant coating
Pedals:
MTB, non-slip
Shifter Cable & Housing:
Jagwire LEX-SL, slick treatment, alloy ferrules
E-System
Motor:
Bosch Performance CX, max speed 25 kph (EU); max speed 20 mph (US)
Battery:
800 Wh, Bosch Dual Battery pack ready
Display:
Bosch Kiox 300 w/ LED remote, electronic bike lock
Range:
800 Wh: 93 - 161 km (58 -100 mi); 1600 Wh: 185 - 322 km (115 - 200 mi)
Charger:
220V, 4A (EU); 100-240V, 4A (US)
Connect Module:
Bosch Connect Module with GPS/GSM connectivity & anti-theft alarm when subscribed to Flow+; free 12-month trial upon activation
Bells & Whistles
Bell:
Pitch Plus, brass
Tool:
Thru-axle lever, 4/5 mm, Torx 2.5 mm
Chainguard:
Custom Bash Guard
Paint Protection:
ToughShield film on top and downtube, self-healing
Kickstand:
Atlas Kickstand XL Cargo ready
Front Light:
Ignis Headlight, Ultra wide 700 lumens, Hi/Lo Beam
Rear Light:
LED w/ G-Sensed Brake Light
Fenders:
Aluminum, heavy duty construction, oversize stays, 27.5"
Rack(s):
Atlas X, 100 kg (220 lb) capacity
*Note: These are our standard model specifications. The bike's weight and folded dimension may not include racks and fenders. The specifications for your country may differ slightly. We do our best to ensure that the specifications listed here accurately reflect the exact parts found on our production bikes. However, component changes do occur for various reasons and there may be brief delays on site updates. We reserve the right to make component changes without prior notification, which may cause discrepancies with the information listed on the web.
