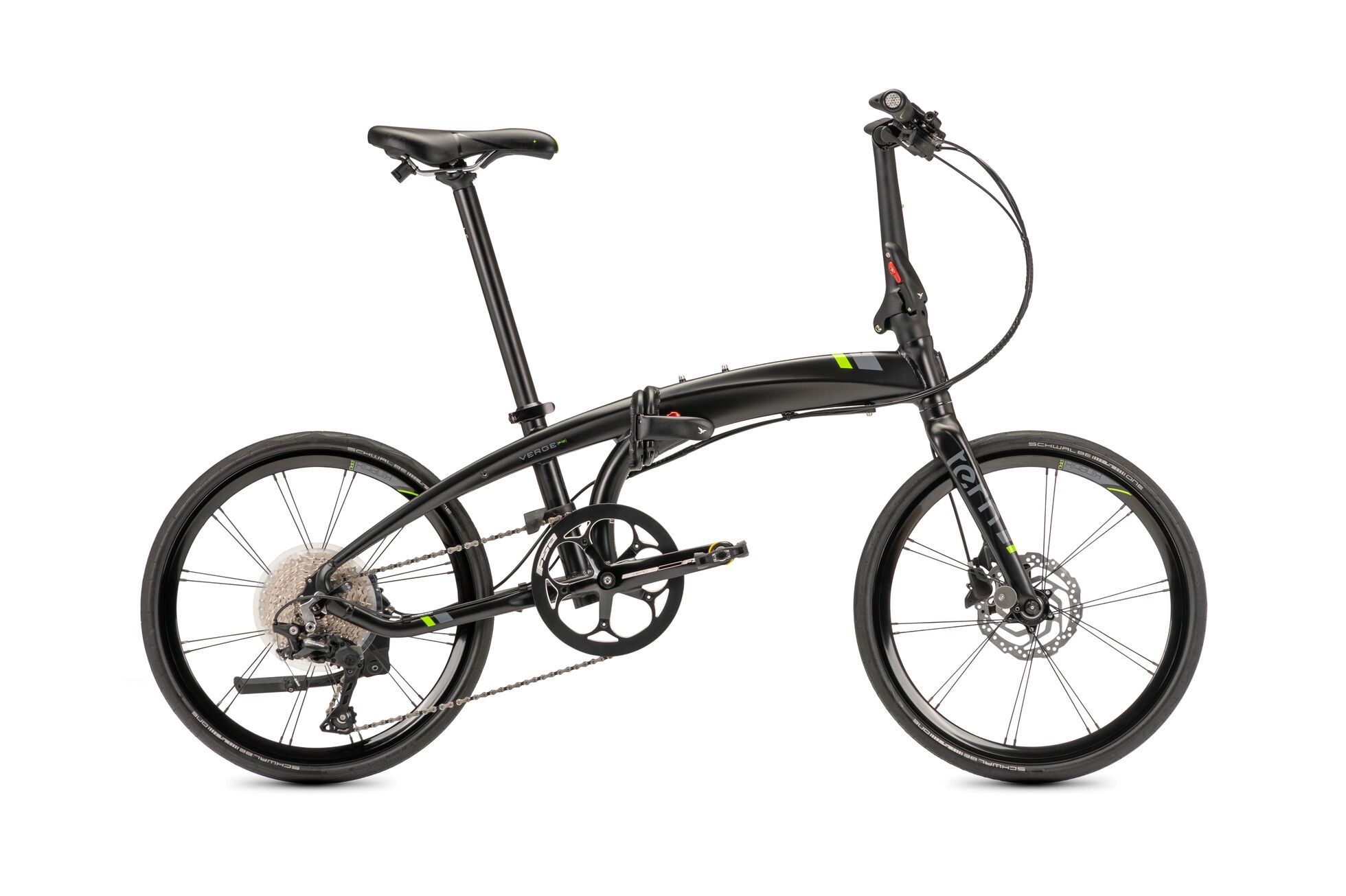

Verge P10

火箭科學

Verge P10為競速而生,配有451競速輪組及空氣動力T-Tuned™幾何,有卓越、舒適穩定的騎行感。有著可調式把立管,你能精準的調整你想要的騎行姿勢。我們甚至加入了 Porter™+座墊,讓每日通勤變得更為舒適、攜車變得更加便利。

  • 全新顏色及時髦設計
  • T-Tuned™ Geometry 穩定舒適
  • 輕量方便攜帶—只有 11.7 kg (25.8 lb)
  • 摺疊存放室內,完美防竊
  • 451 輪組,帶來一般自行車的騎行並摺疊緊密
  • Shimano Deore 1x 傳動系統,帶來超大齒比範圍
  • 451 wheels
競速車款
中階

Technology

Product Reviews

Cyclinfo.ch

Die 22-Zoll-Laufrädern erwiesen sich im Praxistext über mehr als 200 Kilometern entlang Taiwans Ostküste als tauglich für Langstrecken wie für den Stadtverkehr. (…) Insofern hat sich das Konzept im Praxistest voll bewährt. [The 22 inch wheels (451) turned out to be very suitable for riding more than 200 kilometers along the east coast of Taiwan]

Urban Cyclist

So is the Tern P10 'sick'? Well, yes, probably - especially if a little extra speed, control and comfort constitutes 'sickness'.

Specifications

General Info
Speeds:
1 x 10
Weight:
11.7 kg (25.8 lb)
Gear Inches:
26" - 95" (2.08 - 7.57 m)
Folding Size:
38 × 80 × 74 cm (15 × 31.5 × 29.1 in)
Folding Time:
10 seconds
Frame Sizes:
One size
Distance: Seatpost to Handlebar:
61 - 66 cm (24 - 26 in)
Distance: Saddle to Pedal:
65 - 91 cm (25.6 - 35.8 in)
Suggested Rider Height:
142 - 190 cm (55.9 - 74.8 in)
Max Gross Vehicle Weight:
120 kg (264.6 lb)
Max Rider Weight:
105 kg (231.5 lb)
Frame
Frame:
Tern Verge, hydroformed aluminum, OCL+ joint, 3 patented technologies
Fork:
Tern Tarsus, 6061-Al, hydroformed
Cockpit
Handlepost:
Tern Physis 3D (G2), 3D forged, 5 patented technologies, 12°, 290 mm
Stem:
Syntace VRO, adjustable, Built for Tern
Headset:
Flux, cartridge bearings, Physis integrated
Handlebar:
Kinetix Comp, double-butted 6061-Al, for VRO
Grips/Bar Tape:
BioLogic Arx
Saddle:
Tern Porter+, patented GripPad design, PrimeGel padding
Seatpost:
Tern Strut, 2014-Al, 2 bolt clamp
Seatpost Clamp:
Syntace OverLock
Brakes
Front Brake:
Shimano, hydraulic disc
Rear Brake:
Shimano, hydraulic disc
Brake Levers:
Shimano, hydraulic disc
Brake Cable & Housing:
Shimano, hydraulic
Wheels
Front Wheel:
Kinetix Pro Disc, Paired Spoke technology, Shimano Centerlock, 20H
Rear Wheel:
Kinetix Pro Disc, Paired Spoke technology, Shimano Centerlock, 20H
Tires:
Schwalbe One, 28-451, ADDIX compound, 115 psi
Transmission
Shifter(s):
Shimano Deore, 1 x 10 spd
Rear Derailleur:
Shimano Deore Shadow+
Crankset:
FSA Vero, Built for Tern, 53T
Cassette/Freewheel:
11-40T, 10 spd
Bottom Bracket:
Cartridge, sealed bearings
Chain:
KMC X10
Pedals:
LiteForm QR, alloy body, QR right/standard left
Shifter Cable & Housing:
Jagwire LEX-SL, slick treatment, alloy ferrules
Bells & Whistles
Bell:
Pitch, brass
Kickstand:
Rear mount, Pletscher design
Clip System:
Magnetix 2.0
Luggage Socket:
Yes
Rear Light:
Biologic TailLight
Accessory:
Pedal Holder

*Note: These are our standard model specifications. The bike's weight and folded dimension may not include racks and fenders. The specifications for your country may differ slightly. We do our best to ensure that the specifications listed here accurately reflect the exact parts found on our production bikes. However, component changes do occur for various reasons and there may be brief delays on site updates. We reserve the right to make component changes without prior notification, which may cause discrepancies with the information listed on the web.
