Cargo Node

La empresa de mudanzas

La Cargo Node está diseñada para las personas que viven en las ciudades. Gracias a su capacidad de carga de 160 kg. Ruedas grandes y un manubrio ultra-rígido, es considerada como una bicicleta de carga, sin embargo, se pliega a 1/3 de su volumen en sólo 10 segundos. Está diseñada para llevar en un ascensor, así que es fácil de almacenar en un apartamento, y es lo suficientemente liviana para llevar en el transporte público. Es la solución definitiva para el transporte de quienes quieren vivir sin auto

  • Bicicleta de carga, se pliega para guardar en espacios reducidos o transportar en el auto y ascensores
  • Versátil sistema de carga Xtracycle CarryAll™ para todas las condiciones meteorológicas, capacidad de carga de 22 kg en cada lado
  • Stem ajustable Andros™ para una óptima y cómoda posición de viaje
  • 2 luces frontales alimentadas por dínamo con un haz de luz 41 lux Valo™
  • Inflador incorporado dentro de la vela de asiento, por lo que nunca te vas a quedar en el camino
  • Frenos de disco hidráulico Promax para detener la bici en cualquier momento
  • Doble pata Xtracycle Kickback™ para mejor estabilidad de la bici cuando no está en movimiento
  • 160 kg de capacidad de carga, incluyendo un ciclista de hasta 115 kg.
  • Horquilla extra fuerte en Cromolio

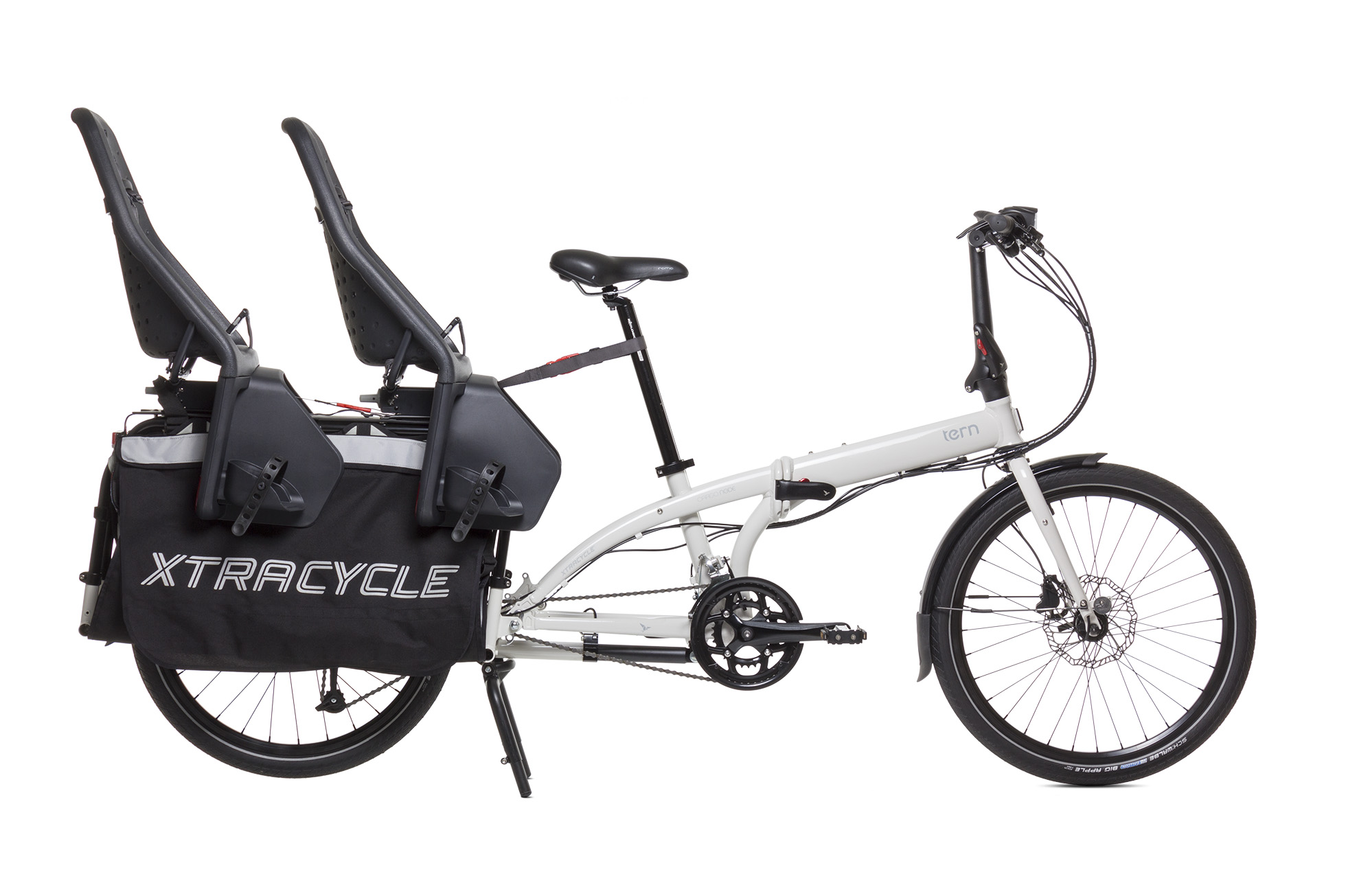

Cargo Node: Family Cargo Bike
  • 24" wheels
Alrededor de la Ciudad
Rango medio

Technology

Product Reviews

Das Rad ist robust und ordentlich verarbeitet. Und: es fährt sich gut, auch mit Ladung im Heck. [The bike is robust and well manufactured. Plus, it rides well, even with a load in the back.]

BILD Zeitung

Knapp 170 Unterstützerinnen und Unterstützer haben auf Kickstarter im Schnitt 900 Dollar zugesichert, sodass das Finanzierungsziel von 60'000 Dollar um mehr als das Doppelte übertroffen wurde. [Nearly 170 supporters pledged an average of $900 to Kickstarter, so that the funding target was exceeded by 60,000 dollars to more than double of the amount.]

Velojournal

Specifications

General Info
Speeds:
2 x 8
Weight:
24,5 kg (54 lb)
Gear Inches:
23" - 105" (1.80 - 8.36 m)
Folding Size:
520 × 1.320 × 830 mm (20,5 × 52 × 32,7 in)
Folding Time:
10 sec
Frame Sizes:
Tamaño único
Distance: Seatpost to Handlebar:
54 - 71 cm (21,3 - 28 in)
Distance: Saddle to Pedal:
79,5 - 105 cm (31,3 - 41,3 in)
Max Gross Vehicle Weight:
185 kg (407,9 lb)
Max Load Weight:
160 kg (352,7 lb)
Max Rider Weight:
105 kg (231,5 lb)
Frame
Frame:
Tern Node, aluminio, 2 tecnologías patentadas, Junta de Cuadro OCL™, Tecnología DoubleTruss™
Fork:
Tern Cargo, cromada
Cockpit
Handlepost:
Tern Physis 3D (G2), forjado 3D, 5 tecnologías patentadas
Stem:
Tern Andros (G2), ajustable, forjado, tecnología patentada
Headset:
Flux, topes de goma, Physis integrado
Handlebar:
Flat bar, 6061-Al, Andros butted
Grips/Bar Tape:
Velo ergonomic, lock-on
Saddle:
BioLogic Como DLX
Seatpost:
BioLogic PostPump 2.0
Seatpost Clamp:
SuperOversize, 6061-AL
Brakes
Front Brake:
Disco hidráulico Tektro
Rear Brake:
Disco hidráulico Tektro
Brake Levers:
Discos hidráulicos
Brake Cable & Housing:
Discos hidráulicos
Wheels
Front Hub:
Dínamo BioLogic Joule 3
Rear Hub:
Piñón de 8 velocidades, aluminio, QR
Spokes & Nipples:
Sapim Leader, acero inoxidable
Rims:
Doble pared, aluminio
Tires:
Schwalbe Big Apple, 50-507, protección anti-pinchaduras, Reflex
Transmission
Shifter(s):
Shimano, palanca de freno y cambios integrada, 2 x 8 velocidades
Front Derailleur:
Microshift, aluminio forjado, soporte de cadena
Rear Derailleur:
Shimano Altus
Crankset:
Palanca de aluminio-6061 forjado al frío, pulido a mano, 48-32T, con cubrecadena
Cassette/Freewheel:
Shimano, 11-34T, 8 velocidades
Bottom Bracket:
Cartridge, sealed bearings
Chain:
KMC 8 velocidades
Pedals:
VP estructura de aleación
Shifter Cable & Housing:
Jagwire LEX-SL, tratamiento anti manchas, terminaciones de aleación
Bells & Whistles
Bell:
Aluminio
Kickstand:
Pie Xtracycle Bipod
Clip System:
Magnetix 2.0
Luggage Socket:
Yes
Front Light:
Tern Valo 2, 41 lux/150 lumens
Rear Light:
Spanninga Solo XDS
Fenders:
RP Chromeplastic, estructura de acero inoxidable
Rack(s):
Xtracycle LEAP. Incluye incluye alforjas laterales CarryAll

*Note: These are our standard model specifications. The bike's weight and folded dimension may not include racks and fenders. The specifications for your country may differ slightly. We do our best to ensure that the specifications listed here accurately reflect the exact parts found on our production bikes. However, component changes do occur for various reasons and there may be brief delays on site updates. We reserve the right to make component changes without prior notification, which may cause discrepancies with the information listed on the web.
