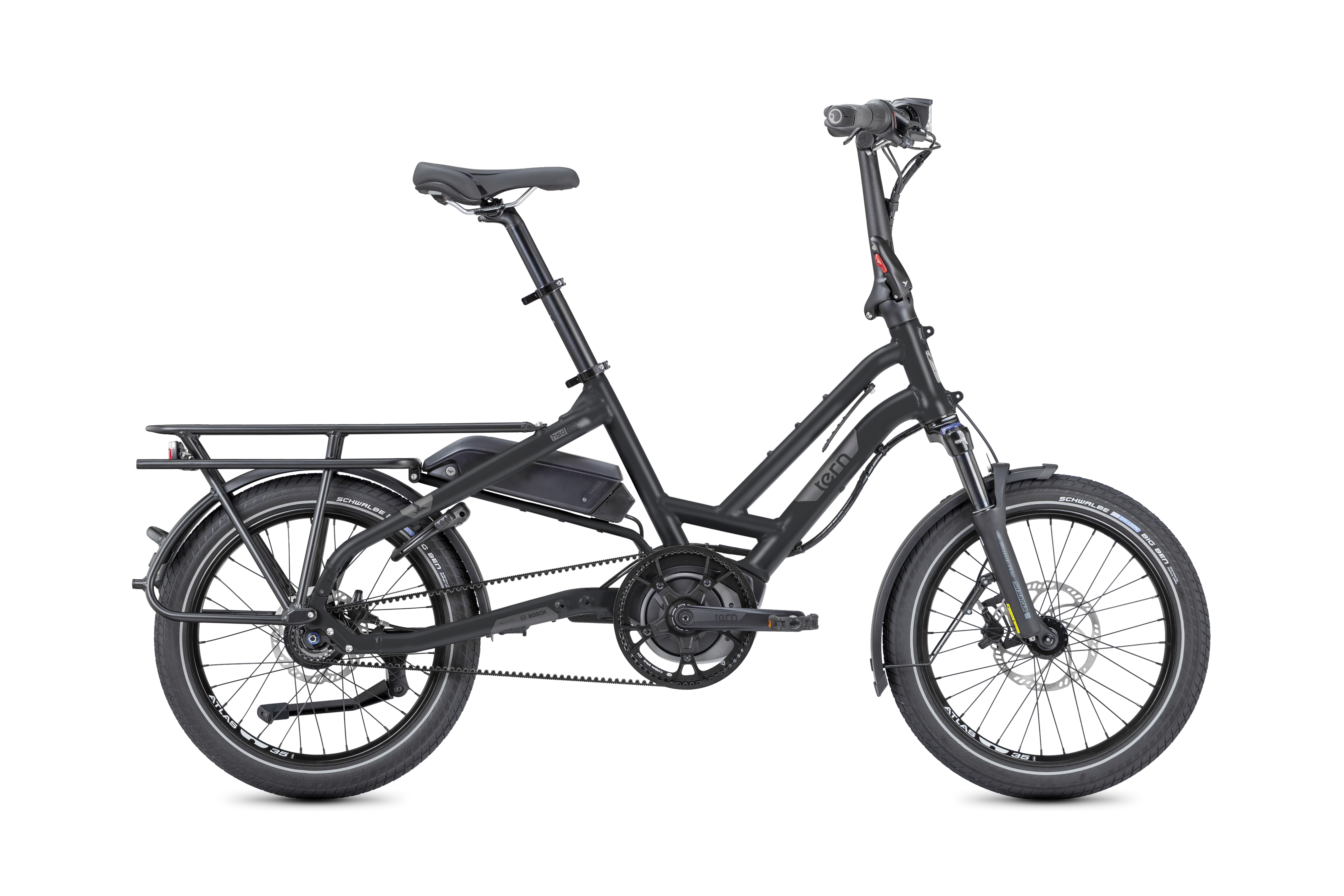

HSD S8i

HSD S8i

Enorm nützlich. Überraschend kleiner
CHF 4'199.-
  • Bosch® Active Line Plus Motor mit Purion Display
  • 400 Wh Batterie für eine Reichweite von bis zu 110 km
  • Spezifische Suntour-Federgabel
  • Shimano® Nexus 8 Integrierte Nabenschaltung
  • Hydraulische Scheibenbremsen Magura® MT4
  • Gates Carbon Drive® CDX Riemenantrieb
  • Abus® Rahmenschloss mit einheitlichen Schlüssel auch für das Batteriefach
  • Passt für Fahrer/-innen von 150 bis 190 cm
  • Kompatibel für einen Thule® Yepp Maxi, Yepp Nexxt Maxi, oder Bobike® GO Maxi Kindersitz— keine Adapter nötig
Bild kann Sonderausstattungen zeigen
Black
Tundra
20" wheels
Electric
Premium

Ausfahrt mit dem neuen HSD-Kompaktrad: Guter Mix aus Laufruhe (langer Radstand) und Agilität – ohne nervös zu sein. Aufrechtes Sitzen für Verkehrsübersicht, sensible Federgabel für Komfort, die diesen Flitzer auch tourentauglich macht.

aktiv Radfahren

In der Presse

Cycling Electric

A cleverly specced folding electric bike that can be used for commuting, school runs or load carrying.

ElektroRad

One thing is clear: despite only four months of use, I can no longer imagine life without my Tern.

ARCD Clubmagazin

This e-bike is a cool eye-catcher and a conversation starter.

Bicycling Magazine

The HSD can handle up to 374 pounds, accepts one child seat, and works with a variety of cargo accessories for the front and rear for all your commuting and errand-running pleasure.

Welt

In return, you will receive an extremely versatile and low-maintenance bike that, thanks to its many smart transport ideas, has the right solution for almost every everyday task Read more

ElektroRad

I fly past an endless queue of cars waiting for parking spaces. My worries about getting all my shopping on my bike are in vain: The panniers are well filled, but I could have packed even more.

Elektrobike

In practical tests, the small load mule convinced with good handling and pleasant riding comfort.

eBikeTips

The HSD you’d buy just as a city workhorse, and then eventually you’d realize that it was capable of doing 90% of the journeys your car did. Read more

ElektroRad

The impressive frame stability makes rear loads almost unnoticeable.

Tekniikan Maailma

Tern HSD has the same excellent cargo and transportation setups as its heavy-duty big brother, the GSD.


Ausstattung

Diverses
Color:
Black
Tundra
Wheel Size:
20" wheels
Speeds:
1 x 8
Frame Sizes:
One size
Gear Inches:
31" - 95" (2.47 - 7.56 m)
Distance: Seatpost to Handlebar:
Min: 490 mm (19.3"); Max: 590 mm (23")
Distance: Saddle to Pedal:
Min: 690 mm (27.2") Max: 1050 mm (41.3")
Folding Size:
163 x 40.5 x 86 cm (64" x 15.9" x 34")
Folding Time:
5 sec
Weight:

25.4 kg (55.9 lb)

Suggested Rider Height:
150 - 195 cm (4'11" - 6'5")
Max Rider Weight:
120 kg. (264 lbs.)
Allgemeine Informationen
Max Gross Vehicle Weight:
170 kg (374 lbs)
Rahmen
Rahmen:
Tern HSD, 6061-AL, patented design, Tern sliding dropouts, EFBE Tri-Test approved: 170 kg
Gabel:
Suntour custom for Tern, 1.5" tapered Chromoly steerer, 32 mm stanchions, Thru-axle, 70 mm travel, EFBE tested for 170 kg
Cockpit
Lenker-/Vorbau-Einheit:
Tern Physis 3D (G2), 3D forged, 5 patented technologies, 12°, 290 mm
Vorbau:
Tern Andros (G2), adjustable, forged construction, patented technology
Steuersatz:
Tern Flux Pro Taper, 1.5", angular contact bearings, Physis integrated
Lenker:
Tern Sweep, 6061-AL, Tern Andros adapted
Griffe:
Ergon
Sattel:
Tern HSD
Sattelstütze:
Tern Telescope, 34.9/30.9 mm, 2014-AL
Sattelstützen-Klemmung:
Tern Collar, 6061-AL, 2pc
Bremsen
Bremse vorne:
Magura MT4, hydraulic disc, 180 mm rotor
Bremse hinten:
Magura MT4, hydraulic disc, 160 mm rotor
Bremshebel:
Magura, hydraulic
Bremsleitung:
Magura, hydraulic
Laufräder
Front Wheel:
Tern Atlas H, cargo wheel
Rear Wheel:
Tern Atlas H, cargo wheel
Nabe vorne:
Novatec, Thru-axle, sealed bearings
Nabe hinten:
Shimano Nexus 8
Speichen und Nippel:
Stainless steel
Felgen:
Tern Atlas H, wide 35 mm
Bereifung:
Schwalbe Big Ben, 55-406, RaceGuard puncture protection, ECE-R75 ebike certification
Schaltung
Schalthebel:
Shimano Nexus 8
Kurbel:
Tern HSD custom, Gates CDX CNC machined beltring
Kassette:
Gates CDX, precision CNC machined cog
Tretlager:
Motor integrated
Kette:
Gates Carbon Drive CDX belt
Pedale:
Urban with non-slip surface
Shifter Cable & Housing:
Shimano
E-System
Motor:
Bosch Active Line Plus (Gen 3), max speed 25 kph (EU); max speed 20 mph (US)
Battery:
Bosch PowerPack 400
Anzeigen:
Bosch Purion, 4 mode selectable, walk assist
Range:
42 -110 km (26-69 mi)
Charger:
Bosch Standard Charger
Weitere Ausstattung
Klingel:
Aluminum
Kettenschutz:
Gates integrated
Ständer:
Ursus, rear mount
Gepäckaufnahme:
Combo Mount
Beleuchtung vorne:
Tern Valo Direct, 45 lux/190 lumens
Beleuchtung hinten:
Herrmans H-Trace, for eBike
Schutzbleche:
SKS, stainless hardware
Gepäckträger:
Atlas H rack, Atlas Rack Mount, 6 point mounting, max load capacity 60 kg (132 lb)
Extra:
ABUS 5650L, keyed-alike with Bosch battery
