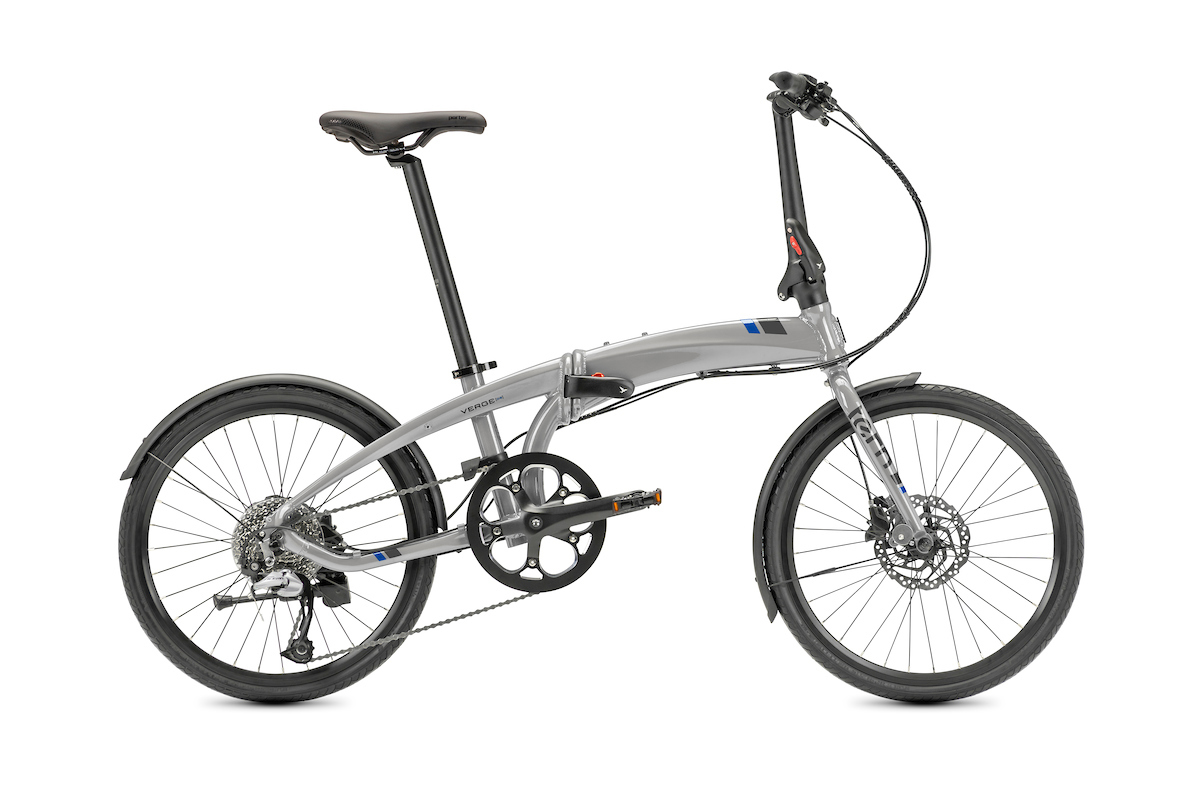

Verge D9

Technology

Giunto telaio OCL

Tecnologia pieghevole avanzata

La chiave di volta per una qualsiasi bicicletta pieghevole è il telaio e in modo specifico il giunto centrale nel mezzo del telaio. Se fatto bene unisce le due metà del telaio senza nessun indizio di movimento o di rumore. Dovrebbe essere facile da usare e in grado di fare il suo mestiere per molti anni. Il giunto OCL fa tutte queste cose ed è il punto di riferimento in fatto di telai da bicicletta pieghevoli.

N-Fold™ Technology

The faster fold

With N-Fold Technology, Tern bikes fold small and fast—in three easy steps. It’s simple enough for anybody to master. And with the handlepost folded to the outside of the package, Tern bikes can also roll when folded for easy transport.

DoubleTruss™ Technology

Stiffer by design

The rear half of Tern frames use a patented 3D structure we call DoubleTruss to build in extra stiffness. It helps resist torsional forces so our bikes flex less. That means increased stiffness and much better power transfer from the pedals to the rear wheel. The proof’s in the ride.

T-Tuned™ Geometry

Feels so good

At Tern, we endeavor to build fast-folding bikes that ride like full-sized bikes. Our T-Tuned geometry is the culmination of our commitment. We’ve tweaked the wheelbase, rake, and seat-tube angle on our bikes with T-Tuned geometry to deliver a remarkably confident and stable ride. Ride one and try it. Take your hands off the handlebars if you’re feeling bold.

Physis™ 3D Handlepost

Il nuovo punto di riferimento

Cinque brevetti e un processo produttivo alll'avanguardia fanno del Physis 3D il più robusto e rigido piantone manubrio sul mercato. Il Physis usa un processo produttivo all'avanguardia denominato Forgiatura tridimensionale che dà forma al pianotone partendo da un singolo blocco di alluminio eliminando le saldature.

Syntace VRO Stem

Trova la posizione giusta per te

La tua bicicletta dovrebbe adattarsi a te, non viceversa. Questo attacco manubrio regolabile permette di posizionare il manubrio più in là per avere una posizione in sella aggressiva oppure in su per migliorare il confort di marcia.

Shimano Shadow Derailleur

STREAMLINED SHIFTING

Originally developed for mountain bikes—for extra durability and to avoid catching on trail debris—the Shadow derailleur is streamlined and incredibly resilient, which comes in handy when you need to transport your folded bike. Whether your bike is bagged on the subway or riding in the trunk of your car, everything is neatly tucked away.

1x (“One-By”) Drivetrain

SIMPLIFIED VERSATILITY

There’s a revolution in drivetrains across the industry. Thanks to the recent introduction of hyper-wide cassettes from SRAM and Shimano, it’s possible to achieve massive gear ranges with only one chainring up front. That makes 1x an ideal configuration for folding bikes, because it reduces maintenance, weight, and complexity. Enjoy all the range of a 20-speed drivetrain, with none of the complications.

Recensioni di prodotto

City Ride Online

Rarement nous avons eu entre les mains un pliant aussi pêchu…

[Rarely have we got on hands a folding bike as “punchy...]

Bicycle Retailer

Tern’s new 451 Verge family of bikes feature new larger wheels, more stable geometry and single-chainring drivetrains with wide-range cassettes.

Specifiche tecniche

Informazioni generali

Colore:

Black/Grey/Red

Red/Black/White

Wheel Size:

451 wheels

Rapporti:

1 x 9

Peso:

12.2 kg (26.9 lb)

Dimensioni bici piegate:

44 x 80 x 74 cm (17.3" x 31.5" x 29.1")

Tempo per piegare la bici:

10 seconds

Frame Sizes:

One size

Gear Inches:

30" - 97" (2.36 - 7.72 m)

Distance: Seatpost to Handlebar:

Min. 620 mm (24.4"); Max: 670 mm (26.4")

Distance: Saddle to Pedal:

Min: 700 mm (27.6"); Max: 960 mm (37.8")

Suggested Rider Height:

142 - 190 cm (4'8" - 6'3")

Max Load Weight:

105 kg (230 lb)

Telaio

Telaio:

Tern Verge, hydroformed aluminum, 3 patented technologies

Fork:

Integrated, hi-tensile steel

Cockpit

Handlepost:

Tern Physis 3D, 3D forged, 5 patented technologies

Stem:

Syntace VRO, adjustable, Built for Tern

Headset:

Flux, cartridge bearings, Physis integrated

Handlebar:

Flat bar, 6061-Al

Grips/Bar Tape:

Velo ergonomic, lock-on

Saddle:

Tern Porter, patented GripPad design

Seatpost:

SuperOversize, 6061-Al, micro-adjust clamp

Seatpost Clamp:

SuperOversize, 6061-Al

Freni

Front Brake:

V, aluminum, linear spring

Rear Brake:

V, aluminum, linear spring

Brake Levers:

V, aluminum bracket/lever

Brake Cable & Housing:

Anti-compression housing, slick cables

Ruote

Front Hub:

Mini, aluminum, QR

Rear Hub:

Formula, 9 spd cassette

Spokes and Nipples:

Stainless steel

Rims:

Doublewall aluminum

Tires:

CST, 37-451, light skinwall, 60 tpi

Trasmissione

Shifter(s):

Shimano, trigger, 1 x 9 spd

Rear Derailleur:

Shimano Acera Shadow

Crankset:

Forged 6061 aluminum, 53T

Cassette/Freewheel:

11-36T, 9 spd

Bottom Bracket:

Cartridge, sealed bearings

Chain:

KMC 9 spd

Pedals:

Folding, alloy body

Shifter Cable & Housing:

SP

Bells & Whistles

Bell:

Aluminum

Kickstand:

Deluxe rear mount

Clip System:

Magnetix 2.0

Luggage Socket:

Yes

Fenders:

Opt: RP Chromeplastic, stainless hardware

*Note: These are our standard model specifications. The bike's weight and folded dimension may not include racks and fenders. The specifications for your country may differ slightly. We do our best to ensure that the specifications listed here accurately reflect the exact parts found on our production bikes. However, component changes do occur for various reasons and there may be brief delays on site updates. We reserve the right to make component changes without prior notification, which may cause discrepancies with the information listed on the web.
