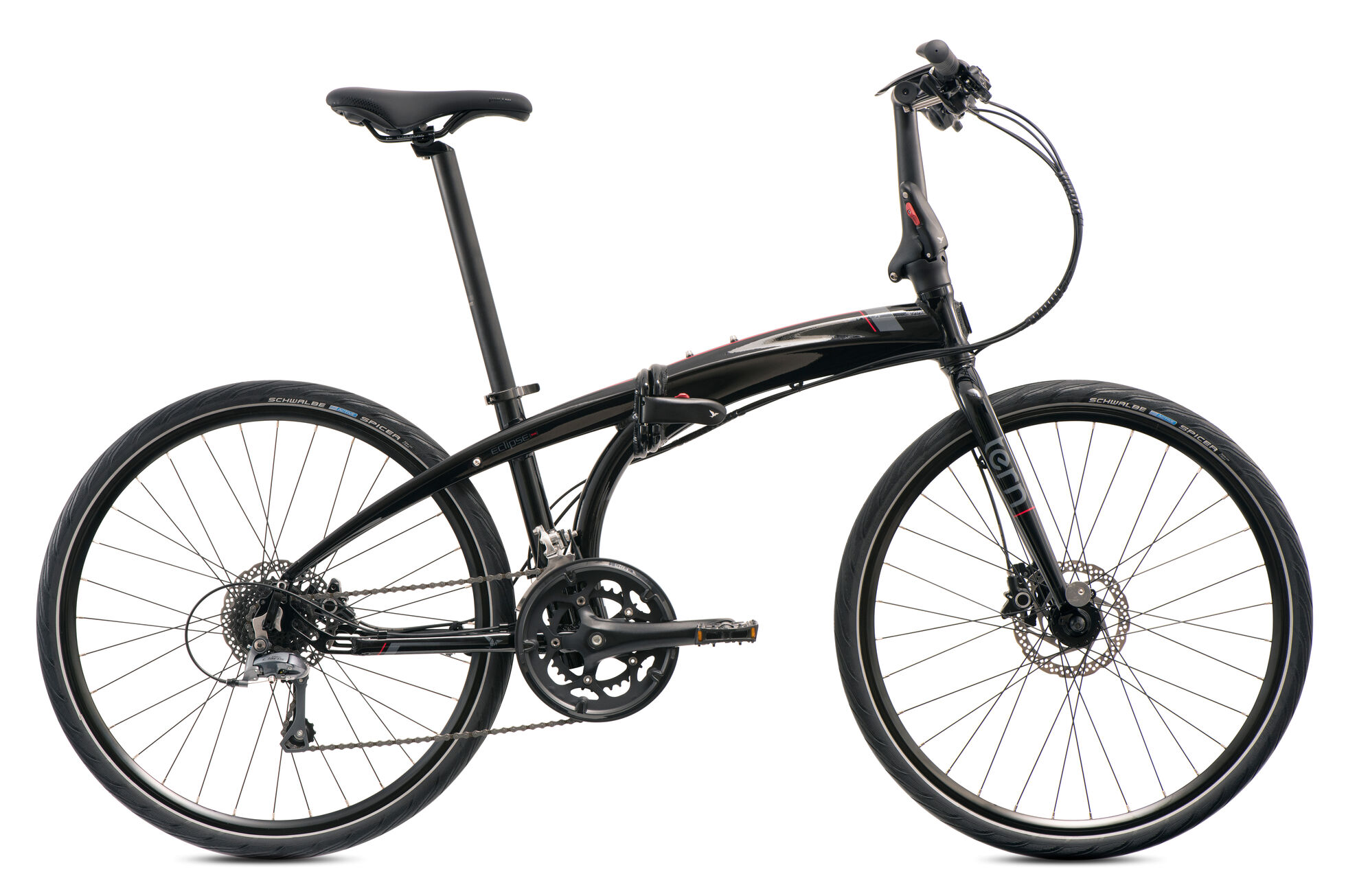

Eclipse D16

Critical Mass

The Eclipse D16 delivers the best price-to-performance ratio of any bike in our lineup. Designed with full-sized 26” wheels, a height adjustable stem, hydraulic disc brakes, and a massively stiff hydroformed Eclipse frame, it ticks all the boxes. Somehow, we managed to get it all in there at an amazing price.

  • Best-riding introductory bike in our lineup, thanks to large 26” wheels and our unique folding technology
  • Folds in 10 seconds or less—store it indoors or transport it in your car
  • Resizes in seconds to fit a wide range of riders
  • Tool-free adjustable handlebar stem lets you change riding positions on the fly
  • Optional fenders for rainy days
  • 26" wheels
Alto Rendimiento
Rango medio

Technology

Specifications

General Info
Speeds:
2 x 9
Weight:
14,8 kg (32,6 lb)
Gear Inches:
29" - 115" (2.28 - 9.14 m)
Folding Size:
44 × 91 × 75 cm (17,3 × 35,8 × 29,5 en)
Folding Time:
10 seconds
Frame Sizes:
One size
Distance: Seatpost to Handlebar:
63 - 70 cm (24,8 - 27,6 in)
Distance: Saddle to Pedal:
79,5 - 105 cm (31,3 - 41,3 in)
Suggested Rider Height:
148 - 195 cm (58,3 - 76,8 in)
Max Gross Vehicle Weight:
120 kg (264,6 lb)
Max Rider Weight:
105 kg (231,5 lb)
Frame
Frame:
Tern Eclipse, hydroformed aluminum, OCL+ joint, 3 patented technologies
Fork:
Integrated, hi-tensile steel
Cockpit
Handlepost:
Tern Physis 3D (G2), 3D forged, 5 patented technologies, 12°, 250 mm
Stem:
Tern Andros (G2), adjustable, forged construction, patented technology
Headset:
Flux, cartridge bearings, Physis integrated
Handlebar:
Flat bar, 6061-Al
Grips/Bar Tape:
Velo ergonomic, lock-on
Saddle:
Tern Porter, patented GripPad design
Seatpost:
SuperOversize, 6061-Al, micro-adjust clamp
Seatpost Clamp:
SuperOversize, 6061-Al
Brakes
Front Brake:
Shimano, hydraulic disc
Rear Brake:
Shimano, hydraulic disc
Brake Levers:
Shimano, hydraulic disc
Brake Cable & Housing:
Shimano
Wheels
Front Hub:
Shimano, Centerlock disc
Rear Hub:
Shimano, Centerlock disc
Spokes and Nipples:
Stainless steel
Rims:
Doublewall aluminum, disc only
Tires:
Schwalbe Spicer, 40-559, puncture protection, Reflex
Transmission
Shifter(s):
Shimano, 2 x 9 spd, trigger
Front Derailleur:
Microshift
Rear Derailleur:
Shimano Sora
Crankset:
Forged 6061 aluminum crank, 50/34T
Cassette/Freewheel:
Shimano, 11-32T, 9 spd
Bottom Bracket:
Cartridge, sealed bearings
Chain:
KMC 9 spd
Pedals:
Folding, alloy body
Shifter Cable & Housing:
SP
Bells & Whistles
Bell:
Aluminum
Kickstand:
Deluxe center mount
Clip System:
Magnetix 2.0
Luggage Socket:
Yes
Fenders:
Opt: RP Chromeplastic, stainless hardware

*Note: These are our standard model specifications. The bike's weight and folded dimension may not include racks and fenders. The specifications for your country may differ slightly. We do our best to ensure that the specifications listed here accurately reflect the exact parts found on our production bikes. However, component changes do occur for various reasons and there may be brief delays on site updates. We reserve the right to make component changes without prior notification, which may cause discrepancies with the information listed on the web.
