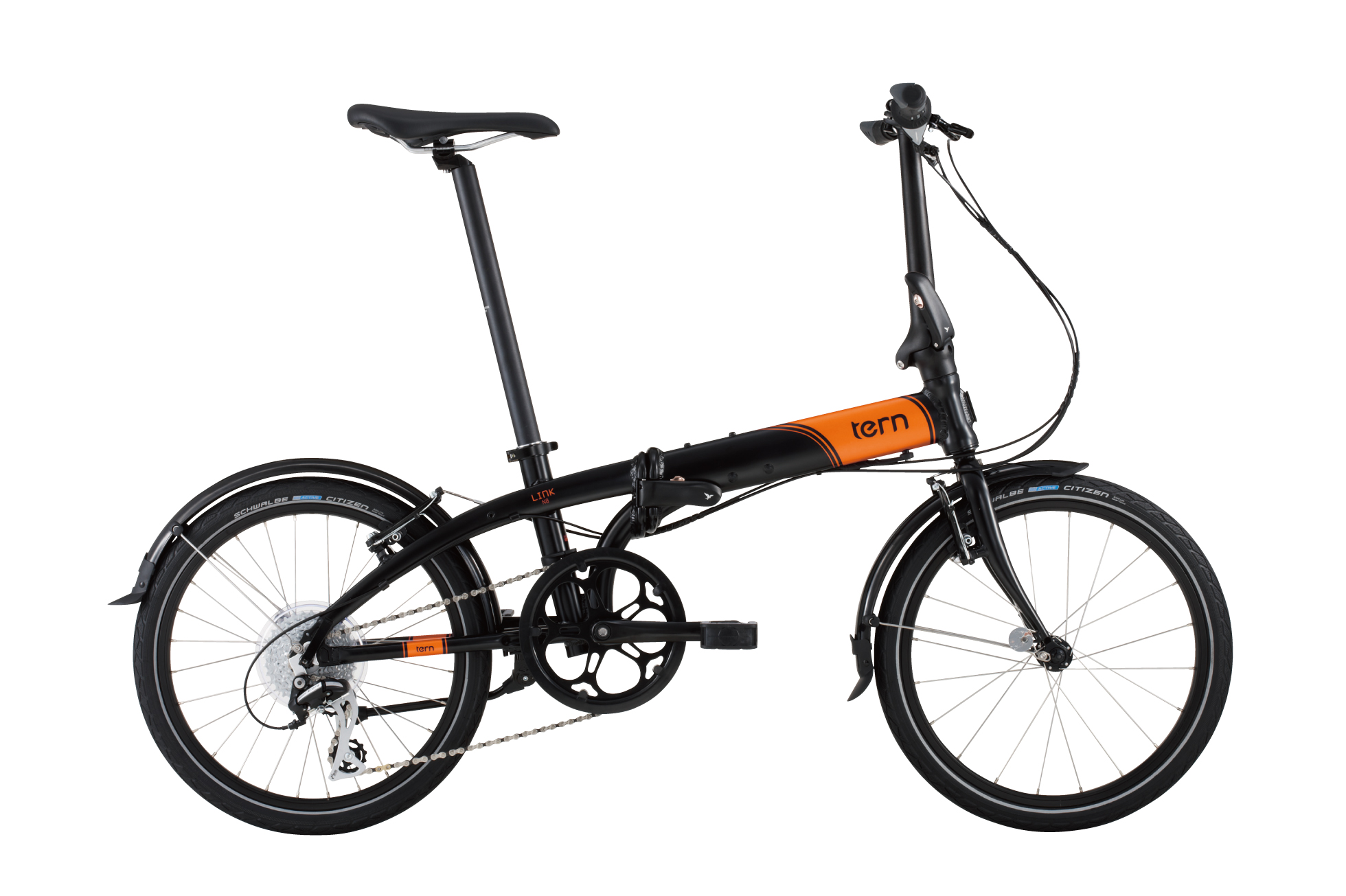

Link N8
萬事通
350mm豎管、560mm車把手，非常適合東方人的體型，可搭配Tern專利的Trolley Rack，更加方便拖行攜帶，並附有檔泥板。
SPECIFICATIONS
General Info
Generation:
Gen 2
Speeds:
8
Weight:
12.2 kg (26.9 lb)
Gear Inches:
33" – 89" (2.23 – 7.1 m)
Frame Sizes:
One size
Folding Size:
380 × 790 × 720 mm (15 × 31.1 × 28.3 in)
Folding Time:
10 sec
Distance: Seatpost to Handlebar:
59 - 63 cm (23.2 - 24.8 in)
Distance: Saddle to Pedal:
70 - 96 cm (27.6 - 37.8 in)
Suggested Rider Height:
142 - 190 cm (55.9 - 74.8 in)
Max Load Weight:
110 kg (242.5 lb)
Frame
Frame:
Link, 6061-AL, patented OCL Joint, DoubleTruss
Fork:
Integrated, hi-tensile steel
Cockpit
Handlepost:
Physis QR, 3D forged aluminum, black/350mm/12°
Headset:
Flux, cartridge bearings, Tri-seal technology
Handlebar:
Flat bar, 6061-AL, balck/560mm/25.4mm
Grips/Bar Tape:
BioLogic Ergo, kraton
Saddle:
Sport
Seatpost:
SuperOversize, 6061-AL, casted clamp, black/580mm/33.9mm
Seatpost Clamp:
SuperOverize, 6061-AL
Brakes
Front Brake:
V, aluminum
Rear Brake:
V, aluminum
Brake Levers:
V, aluminum
Brake Cable & Housing:
Anti-compression housing, slick cables
Wheels
Front Hub:
Mini by Formula, aluminum, QR/20H
Rear Hub:
Formula, cassette, QR,8spd./28H
Spokes & Nipples:
Stainless steel, brass nipples
Rims:
Aluminum, ground sidewalls, black
Tires:
Schwalbe Citizen, Reflex, all black, 406, 20×1.60 F/V
Transmission
Shifter:
SRAM MRX Comp for shimano, Twist, 8 spd.
Rear Derailleur:
Shimano RD-M360-L, Acera 8spd.
Crankset:
Cold-forged 6061-AL, hand-polished/52T
Cassette/Freewheel:
Shimano CS-HG-41-8 spd., 11-32T
Bottom Bracket:
Semi-cartridge
Chain:
KMC Z, 8 spd.
Pedals:
Folding, alloy body
Shifter Cable & Housing:
SIS-SP, DuPont L3 lubricant
Bells & Whistles
Kickstand:
Aluminum, Dacromet bolt, black/255mm
Clip System:
Magnetix 2.0
Luggage Socket:
Yes
Fenders:
RP, stainless hardware
*Note: These are our standard model specifications. The bike's weight and folded dimension may not include racks and fenders. The specifications for your country may differ slightly. We do our best to ensure that the specifications listed here accurately reflect the exact parts found on our production bikes. However, component changes do occur for various reasons and there may be brief delays on site updates. We reserve the right to make component changes without prior notification, which may cause discrepancies with the information listed on the web.
