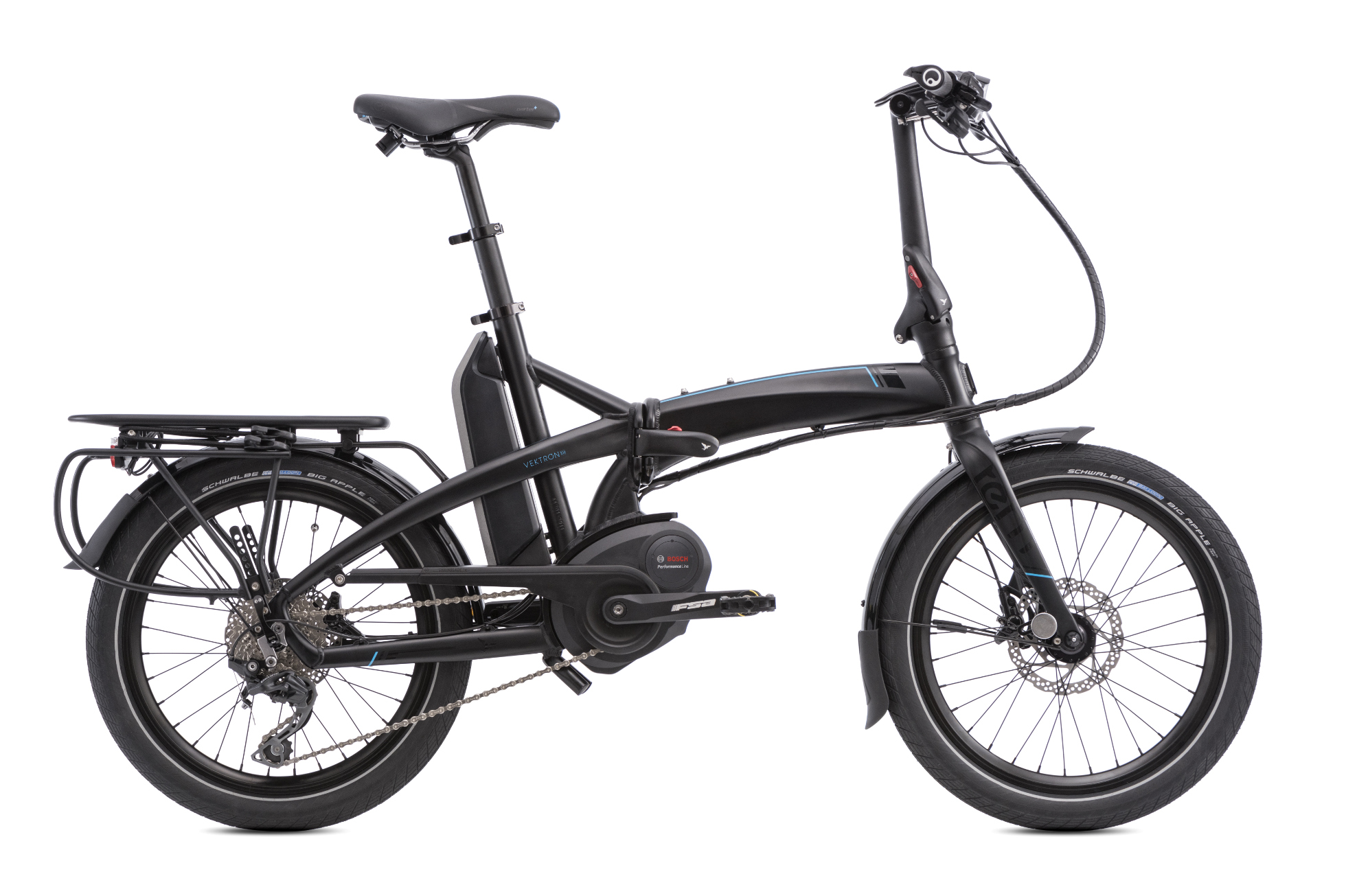

Vektron S10

The Accelerator

Az eljutás módja A-ból B-be az egész világon változik. Az autózás csúcsán, a megosztáson alapuló közlekedés és elektromos járművek terjedése egyre komolyabb mértéket ölt.. Ehhez a fejlődéshez szerettünk volna hozzájárulni mikor megalkottuk a világ legkompaktabb, Bosch motoros e-kerékpárját. A Tern Vektron minden előnnyel rendelkezik, amivel az összecsukható kerékpárok (könnyen szállítható és tárolható), de pluszban elektro-motoros rásegítése is van. Többet szeretnél tudni? Olvasd el a GYIK-et.



  • Könnyen elfér a buszon, metrón, vagy kocsi csomagtartójában, hogy ezeket a közlekedési módokat kombinálhasd is
  • Az egész családnak megfelelő, mert 147-195 cm magasságig mindenkinek testre szabható, ráadásul pár másodperc alatt
  • Elfér az íróasztal alatt, hogy ne kelljen az utcán hagyni és aggódni a lopás miatt, ráadsul a drága, nehéz lakatra sincs így szükség
  • Kettő is elférhet a csomagtartóban ha kiruccannál egy hétvégi tekerésre
  • Piacvezető Bosch elektromos hajtás, mely a jelenlegi legfejlettebb technológia
  • T-Tuned™ geometria a tökéletes stabilitás és kényelem érdekében
  • Valo™ világítás 150 lumen fényerővel
  • Hátsó Cargo Rack™ csomagtartó, mely kompatibilis a Yepp gyerek ülésekkel (Maxi Easyfit és Junior Easyfit)
  • 20" wheels
Elektromos
Felső kategória
EBR Choice Product Award Logo
Focus DE 2017 Vektron Logo

Technology

Product Reviews

The biggest deal with [the Vektron] is that it features a high-quality gold standard Bosch electric drivetrain [...]. It's well worth reading our page on electric bikes, highlighted above, to understand why the battery and motor choice really make a difference on ride quality of e-bikes, but in summary: you get what you pay for.

Cycling Weekly

The e-folding bike Vektron S10 from Tern meets the highest demands. It convinces with easy handling and good riding characteristics.

TCS Touring

The Vektron is the Mercedes S-Class of electric bikes. It’s beautifully built, with a high-quality feel to all of the mechanisms. It’s extremely comfortable to ride, even over longer distances, thanks to a strong motor and 10 gears that make hills a breeze.

Auto Express

The [Vektron S10] 'pack mule': Great everyday suitability thanks to a wide range of luggage carrying options. Absolutely safe handling.

Auto Touring

It’s not super often that I ride a folding bike and am able to forget it’s a folding bike. (...) The Tern Vektron S10 is a rare exception to this rule.

Electric Bike Report

Specifications

General Info
Speeds:
1 x 10
Gear Inches:
30" - 93" (2.40 - 7.43 m)
Folding Size:
410 × 860 × 650 mm (16,1 × 33,9 × 25,6 ebben)
Folding Time:
10 sec
Frame Sizes:
One size
Distance: Seatpost to Handlebar:
63 - 69 cm (24,8 - 27,2 in)
Distance: Saddle to Pedal:
74 - 114 cm (29,1 - 44,9 in)
Suggested Rider Height:
147 - 195 cm (57,9 - 76,8 in)
Max Load Weight:
105 kg (231,5 lb)
Frame
Frame:
Tern Vektron, hydroformed 7005-Al, 3 patented technologies
Fork:
Tern Tarsus, 6061-Al, hydroformed
Cockpit
Handlepost:
Tern Physis 3D, 3D forged, 5 patented technologies
Stem:
Tern Andros, adjustable, forged construction, patented technology
Headset:
Flux Pro, angular contact bearings, Physis integrated
Handlebar:
Kinetix Comp, double-butted 6061-Al
Grips/Bar Tape:
Ergon GP10
Saddle:
Tern Porter+, patented GripPad design, PrimeGel padding
Seatpost:
Tern Telescopic, 2014-Al, 2 pc.
Seatpost Clamp:
Syntace OverLock
Brakes
Front Brake:
Shimano Deore, hydraulic disc
Rear Brake:
Shimano Deore, hydraulic disc
Brake Levers:
Shimano Deore, hydraulic disc
Brake Cable & Housing:
Shimano, hydraulic
Wheels
Front Hub:
Shimano disc
Rear Hub:
Shimano disc
Spokes & Nipples:
Stainless, double-butted
Rims:
Kinetix Comp, for disc
Tires:
Schwalbe Big Apple, 55-406, puncture protection, Reflex
Transmission
Shifter(s):
Shimano Deore, 1x10 spd
Rear Derailleur:
Shimano Deore Shadow
Crankset:
FSA for Bosch
Cassette/Freewheel:
Shimano 11-34T, 10 spd
Bottom Bracket:
Bosch
Chain:
10 spd, DHT for eBike, GST corrosion resistant coating
Pedals:
LiteForm QR, alloy body, QR right/standard left
E-System
Motor:
Bosch Performance, 36 V/250 W, max speed 25 kph
Battery:
Bosch 400 Wh
Display:
Bosch Purion, 4 mode selectable, walk assist
Range:
up to 45-100 km
Bells & Whistles
Bell:
Pitch, brass
Chainguard:
SKS Chainblade
Kickstand:
Rear mount, Pletscher design
Clip System:
Magnetix 2.0
Luggage Socket:
Yes
Front Light:
Tern Valo Direct, integrated, 41 lux/150 lumens
Rear Light:
Herrmans H-Trace, for eBike
Fenders:
SplashGuard, stainless hardware
Rack(s):
Tern Cargo Rack
Accessory:
Pedal Holder

*Note: These are our standard model specifications. The bike's weight and folded dimension may not include racks and fenders. The specifications for your country may differ slightly. We do our best to ensure that the specifications listed here accurately reflect the exact parts found on our production bikes. However, component changes do occur for various reasons and there may be brief delays on site updates. We reserve the right to make component changes without prior notification, which may cause discrepancies with the information listed on the web.
