Vektron S10

l'acceleratore

In tutto il mondo, la modalità con cui ci muoviamo da A a B sta cambiando. Stiamo vivendo l’ascesa dell’auto-mobilità, della condivisione e l’arrivo di veicoli elettrici per tutti. Per supportare questo cambiamento, abbiamo sviluppato la bicicletta con trasmissione Bosch più compatta al mondo. La Tern Vektron prende tutti i vantaggi di una bicicletta pieghevole – è multimodale, è portatile per viaggiare e per difendersi dai furti – e li accelera. Got more questions? Read our FAQs.



  • Sale su autobus e treni in modo facile permettendo un commuting multimodal “elettrico”
  • Si apre in pochi secondi permettendo di accomodare persone con altezza compresa tra 147 e 195 cm. In questo modo la bici può essere usata da più persone nella famiglia.
  • Sta sotto la scrivania al sicuro dai ladri, non c’è bisogno di portarsi in giro un lucchetto pesante.
  • Mettine un paio nel bagagliaio della macchina per una gita durante il weekend.
  • Trasmissione Active di Bosch – leader mondiale nella trasmissione per biciclette a pedalata assistita.
  • Geometria T-Tuned™ per una posizione in sella comoda e stabile
  • Sistema di illuminazione Valo™ con 150 lumens di potenza per una visibilità ottimale lungo tutto il giorno.
  • Portapacchi posteriore Cargo Rack™ funzione senza alcun problema con il seggiolino per bambini Yepp Maxi Easyfit o Yepp Junior Easyfit

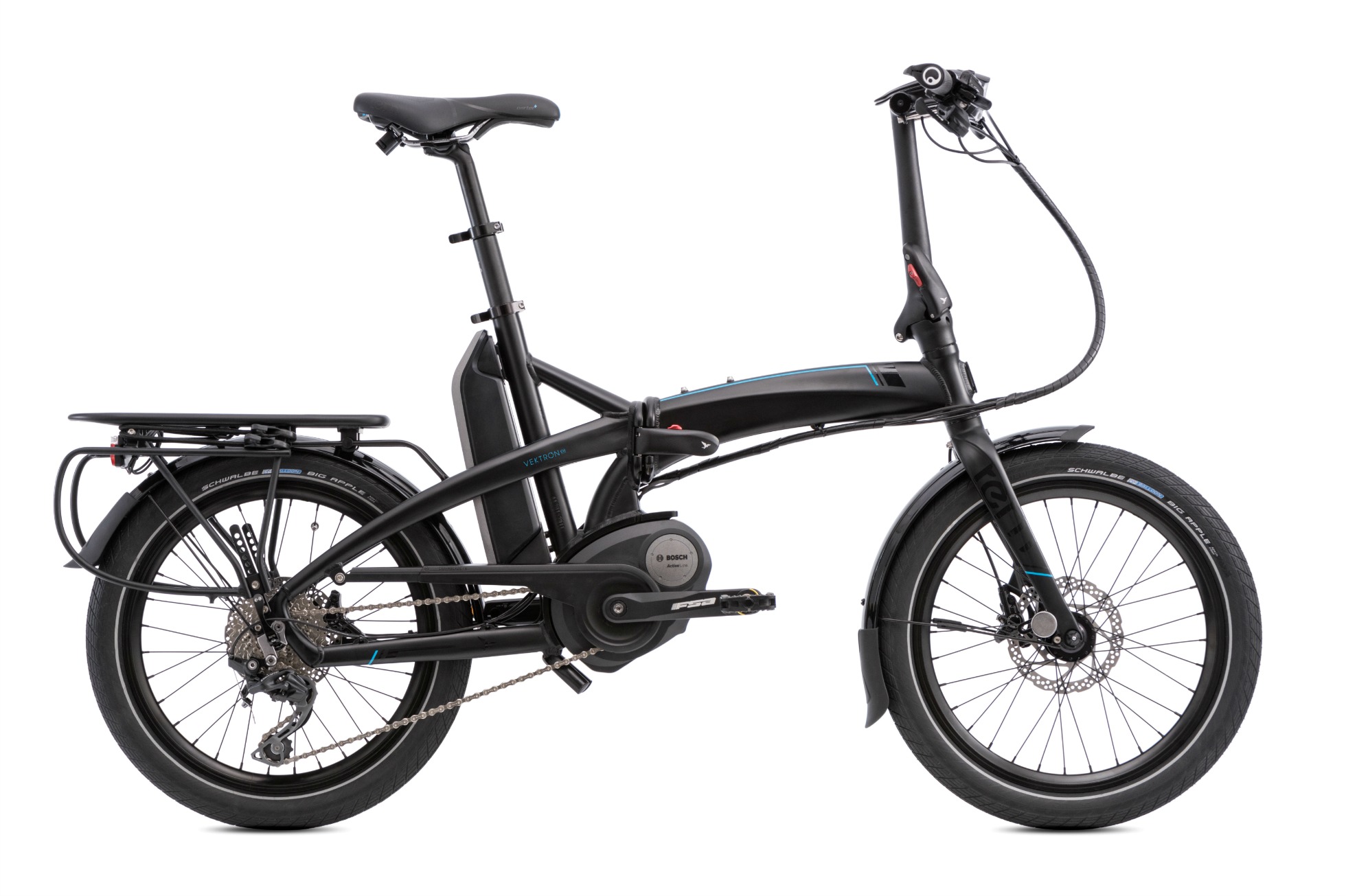

Vektron S10: Our Best Bosch Folding Electric Bike
  • 20" wheels
Elettriche
Alto livello
EBR Choice Product Award Logo
Focus DE 2017 Vektron Logo

Technology

Product Reviews

The biggest deal with [the Vektron] is that it features a high-quality gold standard Bosch electric drivetrain [...]. It's well worth reading our page on electric bikes, highlighted above, to understand why the battery and motor choice really make a difference on ride quality of e-bikes, but in summary: you get what you pay for.

Cycling Weekly

The Vektron is the Mercedes S-Class of electric bikes. It’s beautifully built, with a high-quality feel to all of the mechanisms. It’s extremely comfortable to ride, even over longer distances, thanks to a strong motor and 10 gears that make hills a breeze.

Auto Express

Specifications

General Info
Speeds:
1 x 10
Gear Inches:
30" - 93" (2.40 - 7.43 m)
Folding Size:
410 × 860 × 650 mm (16,1 × 33,9 × 25,6 in)
Folding Time:
10 sec
Frame Sizes:
One size
Distance: Seatpost to Handlebar:
63 - 69 cm (24,8 - 27,2 in)
Distance: Saddle to Pedal:
74 - 114 cm (29,1 - 44,9 in)
Suggested Rider Height:
147 - 195 cm (57,9 - 76,8 in)
Max Load Weight:
105 kg (231,5 lb)
Frame
Frame:
Tern Vektron, hydroformed 7005-Al, 3 patented technologies
Fork:
Tern Tarsus, 6061-Al, hydroformed
Cockpit
Handlepost:
Tern Physis 3D, 3D forged, 5 patented technologies
Stem:
Tern Andros, adjustable, forged construction, patented technology
Headset:
Flux Pro, angular contact bearings, Physis integrated
Handlebar:
Kinetix Comp, double-butted 6061-Al
Grips/Bar Tape:
Ergon GP10
Saddle:
Tern Porter+, patented GripPad design, PrimeGel padding
Seatpost:
Tern Telescope, 2014-Al, 2 pc.
Seatpost Clamp:
Syntace OverLock
Brakes
Front Brake:
Shimano Deore, hydraulic disc
Rear Brake:
Shimano Deore, hydraulic disc
Brake Levers:
Shimano Deore, hydraulic disc
Brake Cable & Housing:
Shimano, hydraulic
Wheels
Front Hub:
Shimano disc
Rear Hub:
Shimano disc
Spokes & Nipples:
Stainless, double-butted
Rims:
Kinetix Comp, for disc
Tires:
Schwalbe Big Apple, 55-406, puncture protection, Reflex
Transmission
Shifter(s):
Shimano Deore, 1x10 spd
Rear Derailleur:
Shimano Deore Shadow
Crankset:
FSA for Bosch
Cassette/Freewheel:
Shimano 11-34T, 10 spd
Bottom Bracket:
Bosch
Chain:
10 spd, DHT for eBike, GST corrosion resistant coating
Pedals:
LiteForm QR, alloy body, QR right/standard left
E-System
Motor:
Bosch Active, 36 V/250 W, max speed 25 kph
Battery:
Bosch 400 Wh
Display:
Bosch Purion, 4 mode selectable, walk assist
Range:
up to 50 - 100 km
Bells & Whistles
Bell:
Pitch, brass
Chainguard:
SKS Chainblade
Kickstand:
Rear mount, Pletscher design
Clip System:
Magnetix 2.0
Luggage Socket:
Yes
Front Light:
Tern Valo Direct, integrated, 41 lux/150 lumens
Rear Light:
Herrmans H-Trace, for eBike
Fenders:
SplashGuard, stainless hardware
Rack(s):
Tern Cargo Rack
Accessory:
Pedal Holder

*Note: These are our standard model specifications. The bike's weight and folded dimension may not include racks and fenders. The specifications for your country may differ slightly. We do our best to ensure that the specifications listed here accurately reflect the exact parts found on our production bikes. However, component changes do occur for various reasons and there may be brief delays on site updates. We reserve the right to make component changes without prior notification, which may cause discrepancies with the information listed on the web.
