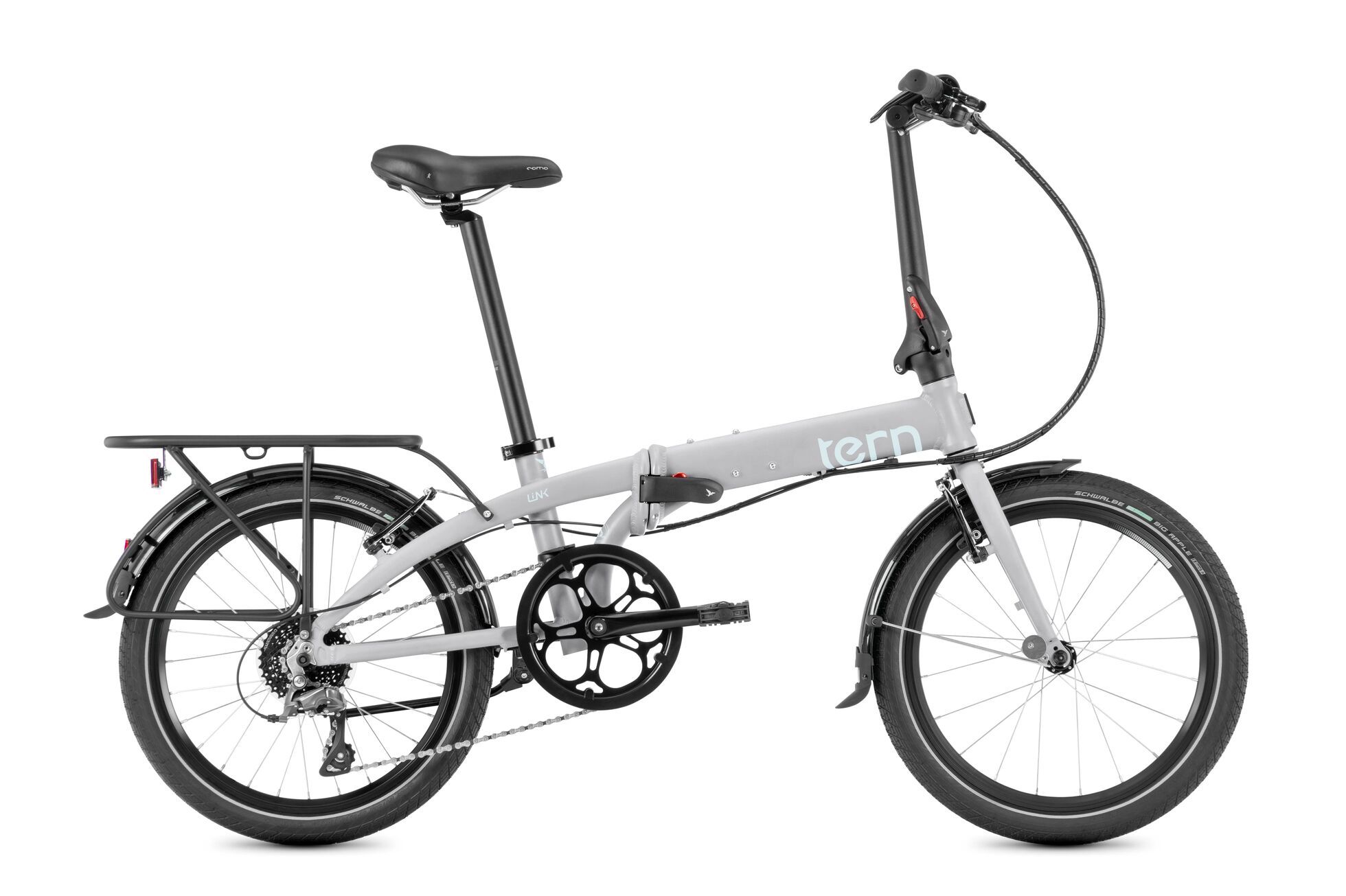

Link D8

The Jack of All Trades
Why Link
Specs
Accessories
Support
Find a Dealer
Buy

Cellulari, ombrelli, fotocamere compatte: il naturale corso dell’evoluzione procede verso una portabilità sempre maggiore, e la bicicletta non fa eccezione. La Link D8 è la tua compagna di viaggio quotidiana, sia che ti sposti esclusivamente su due ruote, sia che combini la bicicletta con autobus, treni o automobili.

  • Trasmissione a 8 velocità, con tutta la gamma di rapporti necessaria in città
  • Attacco manubrio Andros™ per regolare la posizione di guida al volo, senza l’uso di attrezzi
  • Cambio posteriore Shimano Claris per cambiate rapide e reattive
  • Pneumatici Schwalbe Big Apple con protezione antiforatura in Kevlar
  • Si piega in meno di 10 secondi e può essere riposta sotto una scrivania
  • Il sistema di blocco Magnetix™ 2.0 mantiene la bicicletta in posizione quando è piegata
  • Portapacchi posteriore, parafanghi e illuminazione integrata disponibili come optional in alcuni Paesi

Può essere riposta facilmente in qualsiasi piccolo armadio di un appartamento.

Momentum Magazine

Technology

SPECIFICATIONS

General Info
Generation:
Gen 4
Color(s):
Speeds:
1 x 8
Weight:
12,1 kg (26,7 lb)
Gear Inches:
33" - 87" (2.60 - 6.94 m)
Frame Sizes:
One size
Folding Size:
380 × 790 × 720 mm (15 × 31,1 × 28,3 in)
Folding Time:
10 sec
Distance: Seatpost to Handlebar:
62 - 69 cm (24,4 - 27,2 in)
Distance: Saddle to Pedal:
70 - 96 cm (27,6 - 37,8 in)
Suggested Rider Height:
142 - 190 cm (55,9 - 74,8 in)
Max Gross Vehicle Weight:
120 kg (264,6 lb)
Max Load Weight:
105 kg (231,5 lb)
Max Rider Weight:
105 kg (231,5 lb)
Frame
Frame:
Tern Link, aluminum, OCL Joint, 3 patented technologies
Fork:
Integrated, hi-tensile steel
Cockpit
Handlepost:
Tern Physis 3D (G2), 3D forged, 5 patented technologies, 12°, 350 mm
Stem:
Tern Andros (G2), adjustable, forged construction, patented technology
Headset:
Flux, cartridge bearings, Physis integrated
Handlebar:
Flat bar, 6061-Al, Andros butted
Grips/Bar Tape:
Velo ergonomic, lock-on
Saddle:
BioLogic Como DLX
Seatpost:
SuperOversize, 6061-AL, micro-adjust clamp
Seatpost Clamp:
SuperOversize, 6061-AL
Brakes
Front Brake:
V, aluminum, linear spring
Rear Brake:
V, aluminum, linear spring
Brake Levers:
V, aluminum bracket/lever
Brake Cable & Housing:
Anti-compression housing, slick cables
Wheels
Front Hub:
Mini, aluminum, QR Opt: Panasonic dynamo
Rear Hub:
Formula, 8 spd cassette
Spokes & Nipples:
Sapim Leader, stainless steel
Rims:
Doublewall aluminum
Tires:
Schwalbe Big Apple, 50-406, puncture protection, Reflex
Transmission
Shifter:
Shimano trigger, 1 x 8 spd
Rear Derailleur:
Shimano Claris
Crankset:
Forged 6061 aluminum crank arms, hand-polished
Cassette/Freewheel:
11-32T, 8 spd
Bottom Bracket:
Cartridge, sealed bearings
Chain:
8 spd.
Pedals:
Folding, alloy body
Shifter Cable & Housing:
SP
Bells & Whistles
Bell:
Aluminum
Kickstand:
Deluxe center mount
Clip System:
Magnetix 2.0
Luggage Socket:
Yes
Front Light:
Opt: Tern Valo 2, integrated, 41 lux/150 lumens
Rear Light:
Opt: Deluxe LED
Fenders:
Opt: RP Chromeplastic, stainless hardware
Rack:
Opt: Tern Loader Rack

*Note: These are our standard model specifications. The bike's weight and folded dimension may not include racks and fenders. The specifications for your country may differ slightly. We do our best to ensure that the specifications listed here accurately reflect the exact parts found on our production bikes. However, component changes do occur for various reasons and there may be brief delays on site updates. We reserve the right to make component changes without prior notification, which may cause discrepancies with the information listed on the web.
