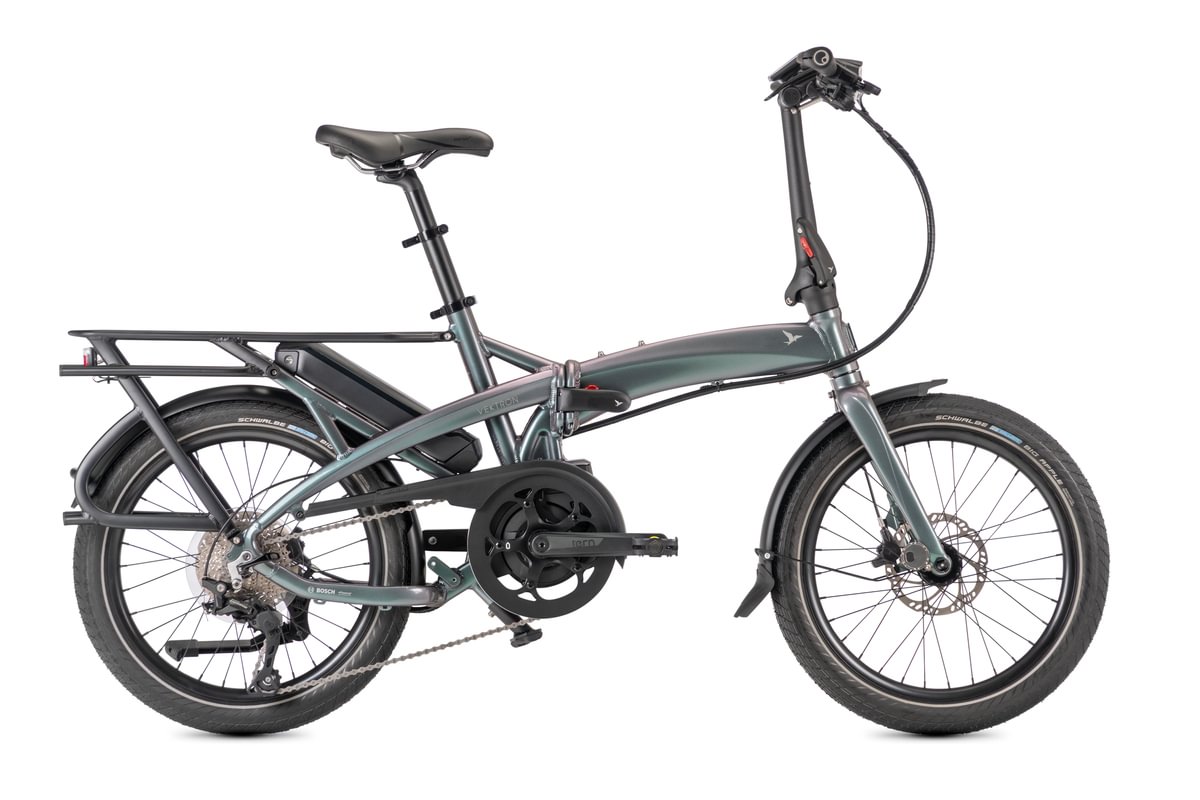

Vektron P10
Pedala, piega, vai oltre
Cosa la rende una P10?
- Il potente motore Bosch Performance fornisce fino a 75 Nm di coppia e supporto del 340%
- Il display Intuvia 100 e il telecomando LED offrono informazioni chiare e un facile controllo a portata di pollice
- La batteria PowerPack 545/400 Wh ti consente di viaggiare fino a 120 km (75 mi)/87 km (54 mi) con una sola carica
- Il mozzo Shimano Deore 1 x 10 velocità garantisce cambiata fluida ed efficiente su terreni variabili
Caratteristiche del Vektron
- Il Bosch Smart System offre funzionalità intelligenti come eBike Lock, personalizzazione della corsa, aggiornamenti over-the-air e navigazione
- Aggiungi il ConnectModule opzionale per migliorare ulteriormente la tua esperienza con funzioni avanzate come Smart Alarm e tracciamento GPS
- Il telaio rigido e la geometria ottimizzata garantiscono una guida che supererà molte biciclette di dimensioni standard
- Si piega in modo compatto in 10 secondi per adattarsi a auto, treni e armadi
- Rimane in piedi e rotola quando è piegata—facile da spostare, facile da riporre
- Il manubrio regolabile si adatta in pochi secondi per adattarsi comodamente a ciclisti alti 147 - 195 cm (4’10” - 6’5”)
- Freni a disco idraulici per potere di arresto in tutte le condizioni atmosferiche
- Portapacchi Atlas V con capacità di carico di 27 kg, compatibile con KLICKfix, Racktime SNAPIT 2.0 e sistemi Ortlieb Quick-Lock 2.1 & 2.2
- Certificata UL 2849 e testata in conformità con la EN 15194, soddisfacendo rigorosi standard di sicurezza per eBike
SPECIFICATIONS
General Info
Color(s):
Speeds:
1 x 10
Weight:
20 kg (44,1 lb)
Gear Inches:
30" - 97" (2.36 - 7.72 m)
Frame Sizes:
One size
Folding Size:
41 × 86 × 68 cm (16,1 × 33,9 × 26,8 in)
Folding Time:
10 sec
Distance: Seatpost to Handlebar:
62 - 69 cm (24,4 - 27,2 in)
Distance: Saddle to Pedal:
67 - 110 cm (26,4 - 43,3 in)
Suggested Rider Height:
147 - 195 cm (57,9 - 76,8 in)
Max Gross Vehicle Weight:
125 kg (275,6 lb)
Max Rider Weight:
105 kg (231,5 lb)
Frame
Frame:
Tern Vektron, 6061-AL, hydroformed aluminum, OCL+ joint, 3 patented technologies
Fork:
Tern Tarsus, 6061-Al, hydroformed
Cockpit
Handlepost:
Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 320 mm
Stem:
Tern Andros, adjustable, forged construction, patented technology
Headset:
Tern Flux by FSA, cartridge bearings, Physis integrated
Handlebar:
Kinetix Comp, double-butted 6061-AL, Tern Andros adapted
Grips/Bar Tape:
Ergon
Saddle:
Tern Porter+ by Velo, patented GripPad design, PrimeGel padding
Seatpost:
Tern Telescope, 34.9/30.9 mm
Seatpost Clamp:
Tern Collar
Brakes
Front Brake:
Magura MT4, hydraulic disc
Rear Brake:
Magura MT4, hydraulic disc
Brake Levers:
Magura, hydraulic disc
Brake Cable & Housing:
Magura, hydraulic disc
Wheels
Front Hub:
Novatec, sealed cartridge bearing, disc
Rear Hub:
Novatec, sealed cartridge bearing, disc
Spokes & Nipples:
Stainless steel, double-butted
Rims:
Kinetix Comp, for disc
Tires:
Schwalbe Big Apple, Performance Line, 55-406, puncture protection, Reflex
Transmission
Shifter:
Shimano Deore, 1 x 10 spd
Rear Derailleur:
Shimano Deore Shadow+
Crankset:
Tern custom, forged 6061-AL crankarm
Cassette/Freewheel:
Shimano 11-36T, 10 spd
Bottom Bracket:
Motor integrated
Chain:
10 spd, DHT for eBike, GST corrosion resistant coating
Pedals:
MKS EZY
Shifter Cable & Housing:
Jagwire LEX-SL, slick treatment, alloy ferrules
E-System
Motor:
Bosch Performance, max speed 25 kph (EU); max speed 20 mph (US)
Battery:
Bosch PowerPack
Display:
Bosch Intuvia 100 w/ LED remote, 4 mode selectable, walk assist, connectivity with Bosch eBike Flow app, electronic bike lock
Range:
545 Wh: 55-120 km (34-75 mi) 400 Wh: 40-87 km (25-54 mi)
Charger:
100-240V, 2A
Bells & Whistles
Chainguard:
SKS Chainblade
Kickstand:
URSUS, rear mount
Clip System:
Magnetix 3.0
Luggage Socket:
Yes
Front Light:
Tern Valo Direct, 190 lumens
Rear Light:
Herrmans H-Trace, for eBike
Fenders:
SplashGuard, stainless hardware
Rack:
Atlas V Rack, integrated 8 point mounting, 27 kg capacity
*Note: These are our standard model specifications. The bike's weight and folded dimension may not include racks and fenders. The specifications for your country may differ slightly. We do our best to ensure that the specifications listed here accurately reflect the exact parts found on our production bikes. However, component changes do occur for various reasons and there may be brief delays on site updates. We reserve the right to make component changes without prior notification, which may cause discrepancies with the information listed on the web.
