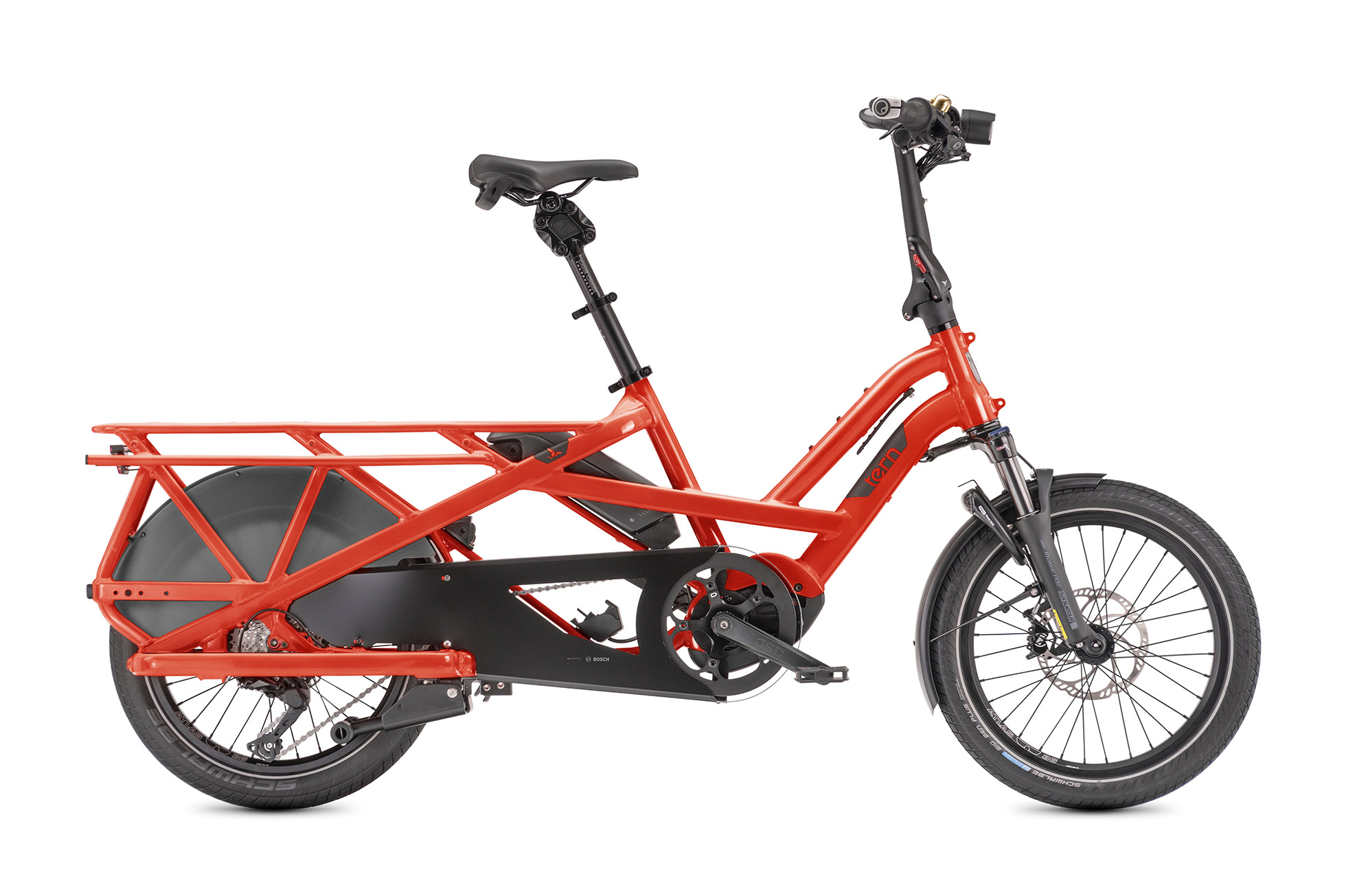

GSD S10 LX

Still Small. Even More Useful.
RRP AU$8495
  • Bosch® Cargo Line Motor provides up to 85 Nm of torque and 400% support
  • Bosch dual-battery system (500/1000 Wh) for a range of up to 206 km (128 mi)
  • Shimano® Deore 1 × 10-speed hub for smooth, efficient shifting
  • Super tough Atlas Lockstand™ auto-locks when engaged—just press a button on the handlebars to unlock
  • Heavy-duty frame-integrated rear rack and integrated lower decks
  • Powerful and responsive Magura® MT5 eSTOP 4-piston hydraulic disc brakes
  • Always-on RearStop™ Brake Light helps you safely signal stops
  • Upgraded Atlas Wheels™ with custom CNC machined hubs for extra strength and durability
  • Cane Creek® Thudbuster ST Suspension Seatpost for an extra-cushy ride
  • Ultra-bright Ignis™ Headlight ensures 24/7 visibility, no matter the weather
  • 20" wheels
Electric
Top-Tier

Product Reviews

With the GSD S10, anyone and everyone can really get going right away and need not fear getting into awkward situations, such as cumbersome turning maneuvers due to an unusually large turning circle.

LifeCycle

The Tern GSD is funny-looking. But use it once, and in short order, you’ll realized its brilliance. Notice I said, “use it” instead of “ride it.” [...] The GSD is a tool, an appliance, a life accessory. It could replace a car for, I’d estimate, over 90-percent of my day-to-day needs.

Bicycling Magazine Newsletter

With a length of 1.85 meters, at least, it can be steered well and also parked in the garage in any corner. This can even be done upright to save space, because the engineers have designed several "parking feet" at the rear end of the rack, on which the bike can be jacked upright. The handlebars can also be folded away in a few easy steps. Extremely practical!

Süddeutsche Zeitung

Roadworthy additions on the LX and R14 models include a high-/low-beam headlight and, on all models, an always-on brake light that intensifies when you squeeze the Magura MT5 eStop levers.

Bicycling Magazine

Specifications

General Info
Speeds:
1 x 10
Weight:
33.58 kg (74 lb)
Gear Inches:
26" - 99" (2.08 - 7.91 m)
Folding Size:
176 × 40.5 × 87 cm (69.3 × 15.9 × 34.3 in)
Folding Time:
5 sec
Frame Sizes:
One size
Distance: Seatpost to Handlebar:
49 - 59 cm (19.3 - 23.2 in)
Distance: Saddle to Pedal:
69 - 105 cm (27.2 - 41.3 in)
Suggested Rider Height:
150 - 195 cm (59.1 - 76.8 in)
Max Gross Vehicle Weight:
200 kg (440.9 lb)
Max Rider Weight:
120 kg (264.6 lb)
Frame
Frame:
Tern GSD, 6061-AL, patented MultiTruss design, EFBE Tri-Test approved: 200 kg
Fork:
Suntour custom for Tern, 1.5" tapered Chromoly steerer, 32 mm stanchions, Thru-axle, 70 mm travel, EFBE approved: 200 kg
Cockpit
Handlepost:
Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 290 mm
Stem:
Tern Andros, adjustable, forged construction, patented technology
Headset:
Tern Flux Pro Taper, 1.5", angular contact bearings, Physis integrated
Handlebar:
Tern Sweep, 6061-AL, Tern Andros adapted
Grips/Bar Tape:
Ergon
Saddle:
Tern GSD by Velo, with rear handle
Seatpost:
Cane Creek Thudbuster G4, Tern Telescope, 34.9/30.9 mm
Seatpost Clamp:
Tern Collar, 6061-AL, 2pc
Brakes
Front Brake:
Magura MT5, 4-piston hydraulic disc, 180 mm rotor, Sport pads
Rear Brake:
Magura MT5, 4-piston hydraulic disc, 180 mm rotor, Sport pads
Brake Levers:
Magura MT5 e-stop, hydraulic, with brake sensor
Brake Cable & Housing:
Magura, hydraulic
Wheels
Front Wheel:
Tern Atlas, heavy duty cargo wheel
Rear Wheel:
Tern Atlas, heavy duty cargo wheel
Front Hub:
Tern Atlas, Boost Thru-Axle, Cargo-optimized design, sealed cartridge bearing
Rear Hub:
Tern Atlas, Boost Thru-Axle, Syntace X-12 standard, Cargo-optimized design
Spokes and Nipples:
Stainless steel, 13G
Rims:
Tern Atlas, ultra wide 36 mm, dual reinforced joint
Tires:
F: Schwalbe Big Ben Plus, 55-406, Green Guard puncture protection, Reflex R: Tern x Schwalbe Super Moto-X, 62-406, Green Guard puncture protection, Reflex
Transmission
Shifter(s):
Shimano Deore, 1 x 10 spd
Rear Derailleur:
Shimano Deore Shadow+
Crankset:
Tern GSD custom, forged 6061-AL DH crankarm
Cassette/Freewheel:
Shimano 11-36T, 10 spd
Bottom Bracket:
Motor integrated
Chain:
10 spd, DHT for eBike, GST corrosion resistant coating
Pedals:
Urban with non-slip surface, sealed bearings
Shifter Cable & Housing:
Jagwire LEX-SL, slick treatment, alloy ferrules
E-System
Motor:
Bosch Cargo Line, 400% Assist, 85 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US)
Battery:
Bosch Dual Battery system, 500 Wh/1000 Wh
Display:
Bosch Purion
Range:
500 Wh: 52-105 km (32-65 mi); 1000 Wh: 102-206 km (63-128 mi)
Charger:
220V, 4A (EU); 100-240V, 4A (US)
Bells & Whistles
Bell:
Pitch Plus, brass
Chainguard:
Tern Custom, full chain cover
Kickstand:
Atlas Lockstand, w/ remote unlock, patented technology
Luggage Socket:
Combo Mount
Front Light:
Ignis Headlight, Ultra wide 700 lumens, Hi/Lo Beam
Rear Light:
RearStop Brake Light, Always on brake light
Fenders:
Integrated Wheel Guard, AL6061, w/ Side Skirt
Rack(s):
Frame integrated, heavy duty design; Max load weight: 100 kg (220 lb)
Accessory:
ABUS, keyed-alike with Bosch battery

*Note: These are our standard model specifications. The bike's weight and folded dimension may not include racks and fenders. The specifications for your country may differ slightly. We do our best to ensure that the specifications listed here accurately reflect the exact parts found on our production bikes. However, component changes do occur for various reasons and there may be brief delays on site updates. We reserve the right to make component changes without prior notification, which may cause discrepancies with the information listed on the web.
