GSD S10 LX

GSD S10 LX

Still Small. Even More Useful.
  • 200 kg (440 lb) Maximum Gross Vehicle Weight
  • Bosch® Cargo Line Motor provides up to 85 Nm of torque and 400% support
  • Bosch dual-battery system (500/1000 Wh) for a range of up to 206 km (128 mi)
  • Shimano® Deore 1 × 10-speed hub for smooth, efficient shifting
  • Adjustable cockpit comfortably fits riders 150 – 195 cm (4’11” – 6’5”)
  • Super tough Atlas Lockstand™ auto-locks when engaged—just press a button on the handlebars to unlock
  • Heavy-duty frame-integrated rear rack and integrated lower decks
  • Powerful and responsive Magura® MT5 eSTOP 4-piston hydraulic disc brakes
  • Always-on RearStop™ Brake Light helps you safely signal stops
  • Integrated Abus® Wheel Lock, keyed-alike with the battery
  • Upgraded Atlas Wheels with custom CNC machined hubs for extra strength and durability
  • Cane Creek® Thudbuster ST Suspension Seatpost for an extra-cushy ride
  • Ultra-bright Ignis™ Headlight ensures 24/7 visibility, no matter the weather
  • Wide range of cargo- and passenger-carrying accessories
  • Fits two Thule® Yepp Maxi seats, no adapters needed
Photo may show optional accessories.
Dragon Fruit

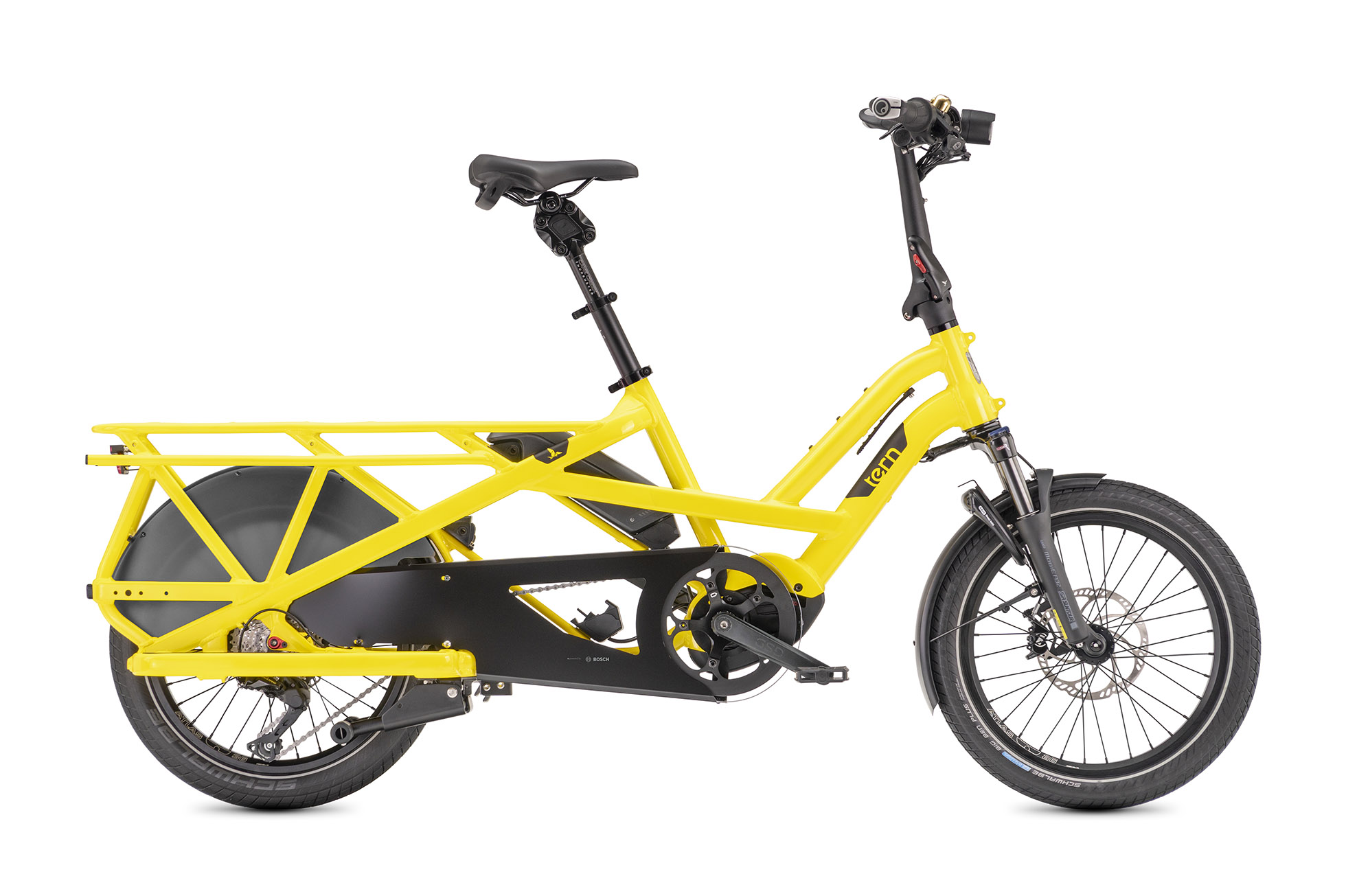

School Bus Yellow
20" wheels
Electric
Top-Tier

Product Reviews

Cycling Electric

If you buy this as a family e-bike we suspect your main problem will be competition for ride time.

Electrek

The days of using bikes exclusively for recreation are over. The advent of electric bikes has opened a wide variety of uses, and the GSD is the king of the hill. Read more


Specifications

General Info
Color:
Dragon Fruit
School Bus Yellow
Wheel Size:
20" wheels
Speeds:
1 x 10
Weight:

33.58 kg (74.03 lb)

Folding Size:
176 x 40.5 x 87 cm (69.3" x 15.9" x 34.3")
Folding Time:
5 sec
Frame Sizes:
One size
Gear Inches:
26" - 99" (2.08 - 7.91 m)
Distance: Seatpost to Handlebar:
Min: 490 mm (19.3") Max: 590 mm (22")
Distance: Saddle to Pedal:
Min: 690 mm (27.2") Max: 1050 mm (41.3")
Suggested Rider Height:
150 - 195 cm (4'11" - 6'5")
Max Gross Vehicle Weight:
200 kg (440 lb)
Max Rider Weight:
120 kg (264 lb)
Frame
Frame:
Tern GSD, 6061-AL, patented MultiTruss design, EFBE Tri-Test approved: 200 kg
Fork:
Suntour custom for Tern, 1.5" tapered Chromoly steerer, 32 mm stanchions, Thru-axle, 70 mm travel, EFBE approved: 200 kg
Cockpit
Handlepost:
Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 290 mm
Stem:
Tern Andros, adjustable, forged construction, patented technology
Headset:
Tern Flux Pro Taper, 1.5", angular contact bearings, Physis integrated
Handlebar:
Tern Sweep, 6061-AL, Tern Andros adapted
Grips/Bar Tape:
Ergon
Saddle:
Tern GSD by Velo, with rear handle
Seatpost:
Cane Creek Thudbuster G4, Tern Telescope, 34.9/30.9 mm
Seatpost Clamp:
Tern Collar, 6061-AL, 2pc
Brakes
Front Brake:
Magura MT5, 4-piston hydraulic disc, 180 mm rotor, Sport pads
Rear Brake:
Magura MT5, 4-piston hydraulic disc, 180 mm rotor, Sport pads
Brake Levers:
Magura MT5 e-stop, hydraulic, with brake sensor
Brake Cable & Housing:
Magura, hydraulic
Wheels
Front Wheel:
Tern Atlas, heavy duty cargo wheel
Rear Wheel:
Tern Atlas, heavy duty cargo wheel
Front Hub:
Tern Atlas, Boost Thru-Axle, Cargo-optimized design, sealed cartridge bearing
Rear Hub:
Tern Atlas, Boost Thru-Axle, Syntace X-12 standard, Cargo-optimized design
Spokes and Nipples:
Stainless steel, 13G
Rims:
Tern Atlas, ultra wide 36 mm, dual reinforced joint
Tires:
F: Schwalbe Big Ben Plus, 55-406, Green Guard puncture protection, Reflex R: Tern x Schwalbe Super Moto-X, 62-406, Green Guard puncture protection, Reflex
Transmission
Shifter(s):
Shimano Deore, 1 x 10 spd
Rear Derailleur:
Shimano Deore Shadow+
Crankset:
Tern GSD custom, forged 6061-AL DH crankarm
Cassette/Freewheel:
Shimano 11-36T, 10 spd
Bottom Bracket:
Motor integrated
Chain:
10 spd, DHT for eBike, GST corrosion resistant coating
Pedals:
Urban with non-slip surface, sealed bearings
Shifter Cable & Housing:
Jagwire LEX-SL, slick treatment, alloy ferrules
E-System
Motor:
Bosch Cargo Line, 400% Assist, 85 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US)
Battery:
Bosch Dual Battery system, 500 Wh/1000 Wh
Display:
Bosch Purion
Range:
500 Wh: 52-105 km (32-65 mi); 1000 Wh: 102-206 km (63-128 mi)
Charger:
220V, 4A (EU); 100-240V, 4A (US)
Bells & Whistles
Bell:
Pitch Plus, brass
Chainguard:
Tern Custom, full chain cover
Kickstand:
Atlas Lockstand, w/ remote unlock, patented technology
Luggage Socket:
Combo Mount
Front Light:
Ignis Headlight, Ultra wide 700 lumens, Hi/Lo Beam
Rear Light:
RearStop Brake Light, Always on brake light
Fenders:
Integrated Wheel Guard, AL6061, w/ Side Skirt
Rack(s):
Frame integrated, heavy duty design
Accessory:
ABUS, keyed-alike with Bosch battery
