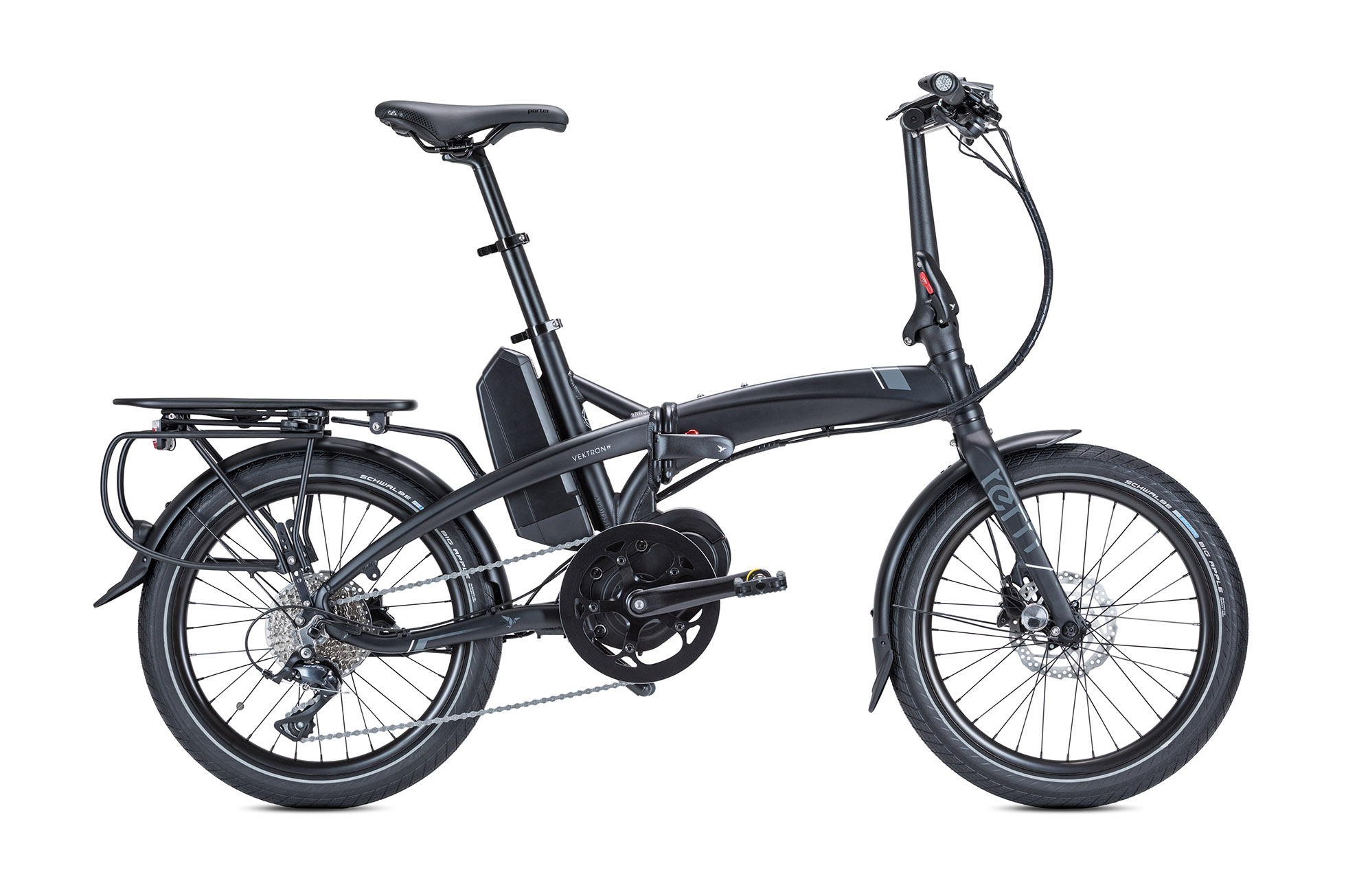

Vektron P9

Vektron P9

L'acceleratore

La Vektron è la prima della classe tra le biciclette a pedalata assistita che si piegano in 10 secondi per accompagnart su treni, automobili o sotto la scrivania. Con la trasmissione elettrica le ruote da 20” vanno veloci come quelle da 700c. Questo significa che puoi prendere vataggio da tutti i benefici delle ruote da 20” (compattezza, baricentro basso, accelerazione, manovrabilità, tanta capacità di carico) e combinarla con la velocità delle ruote grandi.

La Vektron P9 è equipaggiata con un cambio Shimano Sora a 9 velocità per affrontare ogni andatura in città. Il portpacchi Tern Cargo Rack, la luce Valo Direct e i parafanghi anteriori e posteriori la rendono perfetta per il commuting lungo tutto l’arco dell’anno.

  • Bafang M400 Drive System—250 watts di potenza affidabile
  • Deragliatore Shimano Sora per cambiate senza incertezze
  • Freni a disco idraulici per potenza frenante in ogni condizione atmosferica
  • Luce Tern Valo Direct, 150 lumens di potenza per una visibilità h-24
  • batteria da 400 Wh per un autonomia fino a 90 km
  • Andros stem, permette di accomodare persone di altezza compresa tra i 147 e i 195 cm
  • portapacchi Tern Cargo Rack™ per trasportare le tue cose lontano
La foto può mostrare accessori opzionali
Black/Dark Grey
Ruota da 20”
Electric
Medio livello

Technology

Recensioni di prodotto

CityRide

Nous voilà séduits par les performances du moteur central Bafang Max Drive.

Sur le plan du pilotage le Vektron p9 procure beaucoup de Plaisir. Son coté compact lui permet de se faufiler aisément dans le flot de la circulation tout en restant bien stable grace à un centre de gravité bas. Quant à la position de pilotage, elle est confortable et ne procure pas la moindre tension musculaire.

[We are seduced by the performance of the mid-motor Bafang Max Drive.

In terms of riding the Vektron p9 provides a lot of fun. Its compact size allows it to sneak easily into the traffic flow while remaining stable thanks to a low center of gravity. As for the steering position, it is comfortable and does not provide the slightest muscle tension.]

Read more

Elektrobike

62 E-Bikes in 8 Kategorien hat die Elektrobike-Test-Crew auf der Straße getestet (…). Alle Testsieger aus dem Elektrobike-Test im Überblick:
(…)
Kompakt-E-Bike: Tern Vektron P9

[The Elektrobike Test Crew has tested 62 ebikes in 8 categories (…). All test winners at a glance:
(…)
Best compact ebike: Tern Vektron P9]

Read more

Elektrobike

Auf seinen kleinen Rädern rollt das Tern Vektron sehr wendig, aber nicht nervös. […] Für Komfort sorgen die voluminösen Reifen und die ergonomische Sattel-Lenker-Kombination. […] Das Vektron sichert sich den Kompakt-Testsieg.

[On its small wheels, the Tern Vektron is agile, but not nervous. […] Comfort is ensured by the voluminous tires and an ergonomic cockpit. […] The Vektron wins our the compact category test.]

Read more

Focus.de

Egal für welche Motorvariante man sich entscheiden mag, handelt es sich beim Vektron um ein erfreulich gut gemachtes E-Bike, welches als Besonderheiten hochvariable Einstellmöglichkeiten für Lenker und Sattel sowie einen Faltmechanismus bietet, der raumoptimiertes Verstauen und den einfachen Transport erlaubt.

[No matter which variant of engine you choose, the Vektron is a pleasingly well-made e-bike that offers highly variable adjustment options for the handlebar and saddle as well as a folding mechanism that allows space-optimized stowage and easy transport.]

Read more

ElektroRad

Das Vektron P9 ist sehr variabel einsetzbar – ein wirklich praktisches Rad zum attraktiven Preis.

[The Vektron P9 is very versatile – a really practical bike at an attractive price point.]

Read more

Velomotion

Das Tern Vektron P9 regt nicht nur Verkehrsexperten zum Träumen an, es funktioniert auch richtig gut.

[Not only is the Vektron P9 an urban-planner’s dream, it also rides really well.]

Read more

BikeBiz

With a fleet of 100 Tern Vektron e-bikes spread across 13 ships, over 2,200 Grand Circle Cruise Line and OAT customers have had enjoyed the e-bike tour while on holiday.
Read more

MyBusinessLab

Tern per i possessori di eBike è anche garanzia di sicurezza, dato che la bici pieghevole è sempre al seguito e non necessita di essere lasciata in strada.

[Tern for e-bike owners is also a guarantee of safety since the folding bike is always with you and doesn’t have to left on the street.]

ElectricBikeReview.com

. . . has plenty of cargo space, and there’s just this stiffness feel . . . a very solid feel. . . .

Read more


Specifiche tecniche

Miscellanea
Color:
Black/Dark Grey
Speeds:
1 x 9
Folding Size:
41 x 86 x 68 cm (16.1" x 33.9" x 26.8")
Folding Time:
10 sec
Weight:

22.6 kg (49.8 lb)

Informazioni generali
Wheel Size:
Ruota da 20”
Frame Sizes:
One size
Gear Inches:
33" - 97" (2.65 - 7.72 m)
Distance: Seatpost to Handlebar:
Min. 620 mm (24.4") Max: 690 mm (27.2")
Distance: Saddle to Pedal:
Min. 680 mm (26.8") Max: 1110 mm (43.7")
Suggested Rider Height:
147 - 195 cm (4'10" - 6'5")
Max Load Weight:
105 kg (230 lb)
Telaio
Telaio:
Tern Vektron, hydroformed aluminum, OCL+ joint, 3 patented technologies
Fork:
Tern Tarsus, 6061-Al, hydroformed
Cockpit
Handlepost:
Tern Physis 3D (G2), 3D forged, 5 patented technologies, 12°, 320 mm
Stem:
Tern Andros (G2), adjustable, forged construction, patented technology
Headset:
Tern Flux, cartridge bearings, Physis integrated
Handlebar:
Flat bar, 6061-Al, Tern Andros adapted
Grips/Bar Tape:
BioLogic Arx
Saddle:
Tern Porter, patented GripPad design
Seatpost:
Tern Telescope, 34.9 mm, Lite 2014-AL
Seatpost Clamp:
Oversize, 6061-Al, 2 pc
Freni
Front Brake:
Shimano, hydraulic disc
Rear Brake:
Shimano, hydraulic disc
Brake Levers:
Shimano, hydraulic disc
Brake Cable & Housing:
Shimano, hydraulic disc
Ruote
Front Hub:
Shimano disc
Rear Hub:
Shimano disc
Spokes and Nipples:
Stainless steel
Rims:
Kinetix Comp, for disc
Tires:
Schwalbe Big Apple, Performance Line, 55-406, puncture protection, Reflex
Trasmissione
Shifter(s):
Shimano, 1 x 9 spd, trigger
Rear Derailleur:
Shimano Sora
Crankset:
Vektron custom, forged 6061-AL crankarm
Cassette/Freewheel:
Shimano 11-32T, 9 spd
Bottom Bracket:
Motor integrated
Chain:
9 spd, DHT for eBike, GST corrosion resistant coating
Pedals:
LiteForm QR, alloy body, QR right/standard left
Shifter Cable & Housing:
Jagwire LEX-SL, slick treatment, alloy ferrules
E-System
Motor:
Bafang M400 Drive System, 36 V/250 W, max speed 25 kph (EU); max speed 20 mph (US), max torque 80 Nm
Battery:
Bafang M400 Drive System Battery, 400 Wh, Panasonic cells
Display:
Bafang M400 Drive System Display, 5 mode selectable, walk assist
Range:
40-90 km (25-56 mi)
Bells & Whistles
Bell:
Aluminum
Chainguard:
n/a
Kickstand:
DoubleStand, center mount
Clip System:
Magnetix 2.0
Luggage Socket:
Yes
Front Light:
Tern Valo Direct, integrated, 41 lux/150 lumens
Rear Light:
Herrmans H-Trace / H-Trace Mini, for eBike
Fenders:
SplashGuard, stainless hardware
Rack(s):
Opt: Tern Cargo Rack
Accessory:
Pedal Holder
