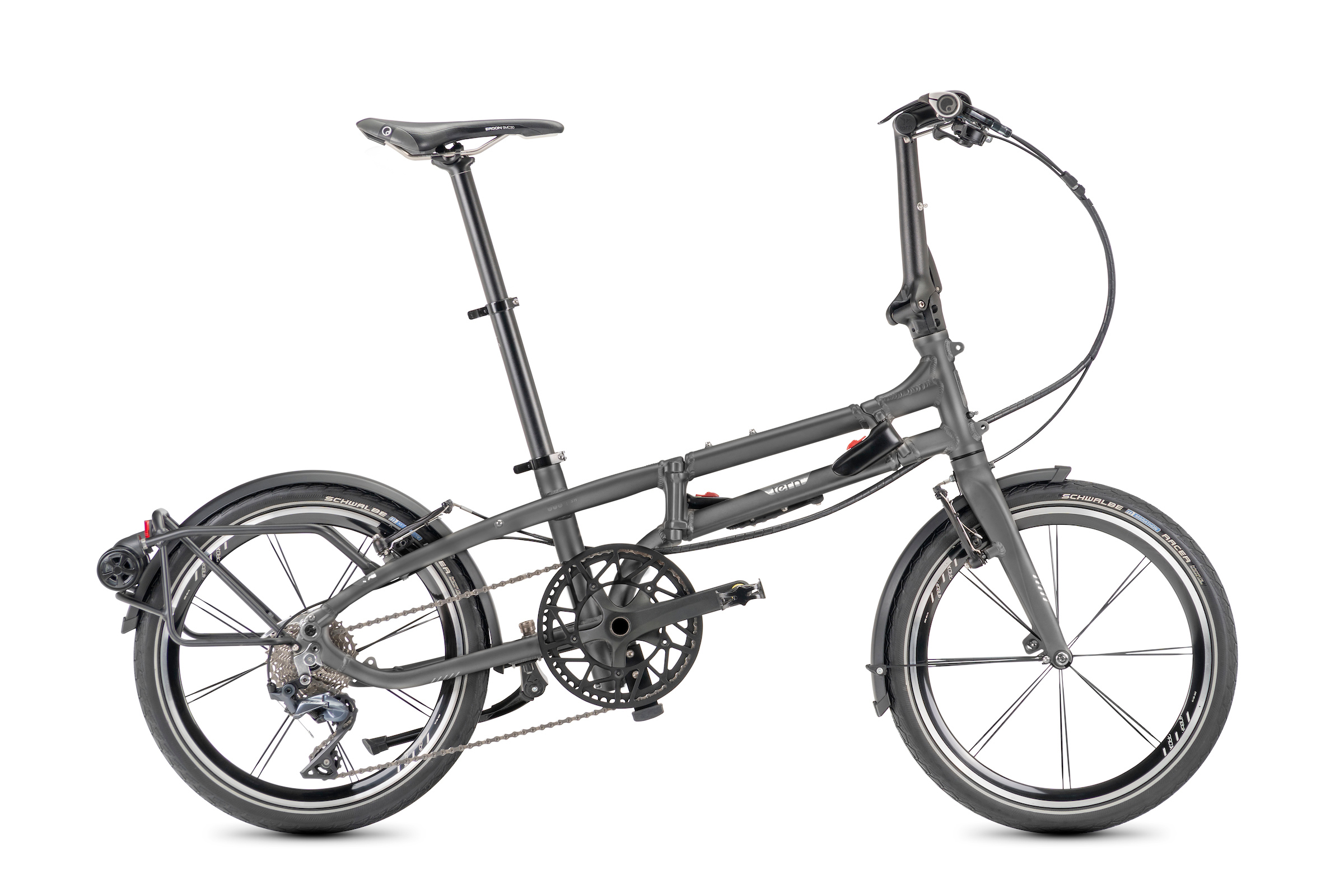

BYB S11

BYB S11

당신의 자전거를 가지고 가세요
  • 기존의 20인치 접이식 자전거보다 30퍼센트 작게 접힙니다.
  • 사물함, 옷장 또는 좁은 공간에 편리하게 수납 할 수 있습니다.
  • 휠이 달려있는 메트로 트랜짓 랙이 달려있어 끌고다니기 편리합니다.
  • 147cm ~ 195cm(4’10인치 – 6’5인치)의 탑승자에게 적합합니다.
  • TFL 조인트에는 3D 인터페이스, 데드볼트 설계 및 SpringLock 기술이 적용되어 있습니다.
  • 새로운 3D 단조 방식의 RF 핸들포스트
  • 스포크 테크놀러지가 적용된 Kinetix Pro X 휠셋을 장착하였습니다.
  • 시마노 울테그라 11단, 쉐도우 RD 구동계를 사용하였습니다.
옵션 액세서리 사진
Matte Silver
20인치 휠
도심
상급

제품 리뷰

4 stars

Bikeradar

The BYB S11 offers one of the best rides of any folding bike out there thanks to its stiff frame design, long wheelbase and 20-inch wheels.

Read more

Bike World News

Its compact size, yet full size ride feel is a great way to get around a city.

Read more

Radwelt

“Ein besonderer Clou sind die Rollen am Gepäckträger. Aufgerichtet und am ausgefalteten Lenker lässt es sich wie ein Trolley ziehen und erspart so längere Tragestrecken.”

[A special highlight are the spinner wheels on the rear rack. The folded bike can be pulled by the unfolded handlebars like a trolley and thus saves longer carrying distances.]

Bicycling

The BYB’s larger wheels give it a smooth, uncompromised ride and better stability than smaller-diameter wheels.

Read more

Bicycling Magazine

The BYB is definitely the heartiest folding bike I’ve ever ridden. There’s an overriding sensation of stability I’ve not found in other folding bikes, and the ride feels more like a non-folding bike.
Read more

4 stars

Bike Radar

One of the best handling folders around, if you want ride quality over everything else get this.
Read more

Radfahren.de

Das Tern BYB kann mehr als nur Pendler-Einsätze. Sogar Ausflüge sind drin.
[The Tern BYB can do more than commuter missions. Even bike touring is possible.]
Read more

Forbes

And, highly unusual for the bicycle industry, the BYB will be available to buy just a few weeks after launch. Normally, new bicycle models are launched some months before availability.
Read more

Focus Online

An Klapprädern mit großen Laufrädern stört meist ein üppiges Packmaß. Das neue BYB von Tern macht da eine erfreuliche Ausnahme.
[On folding bikes with large wheels, the unreasonable folded package is annoying. The new BYB from Tern is a pleasant exception.]
Read more

Karl magazine

Für Stadtradler, die kurze Pendlerstrecken mit öffentlichen Verkehrsmitteln kombinieren, ist das Rad richtig praktisch.

[For urban cyclists combining short commutes with public transport, this bike is the right (and practical) choice.]


제원

Miscellaneous
Color:
Matte Silver
Wheel Size:
20인치 휠
Speeds:
1 x 11
Frame Sizes:
One size
Gear Inches:
32" - 94" (2.57 - 7.48 m)
Distance: Seatpost to Handlebar:
Min: 630 mm (24.8"); Max: 675 mm (26.6")
Distance: Saddle to Pedal:
Max: 1035 mm (40.7")
Folding Size:
33 x 81 x 51 cm (13.0" x 31.9" x 20.1")
Folding Time:
30 seconds
Weight:

12.7 kg (27.9 lb) fully-equipped

Suggested Rider Height:
147 - 195 cm (4'10" - 6'5")
기본자료
Max Load Weight:
105 kg (231 lb)
차체
차체:
Tern BYB, Aluminum, TriFold patented technology, EFBE tested: ISO 4210
포크:
Tern Tarsus, 6061-AL, hydroformed
조종계통
핸들포스트:
Tern Physis RF, 3D forged, 5 patented technologies
스템:
Tern Andros (G2), adjustable, forged construction, patented technology
헤드셑:
Flux Pro, angular contact bearings, Physis integrated
핸들바:
Kinetix Pro X, double-butted 7050-AL, Andros adapted
그립/바테잎:
Ergon GS1 Leichtbau
안장:
Ergon SMC30 Pro, TiNox Rails
시트포스트:
Tern Telescope, 34.9/30.9 mm, 2014-AL
시트포스트 클램프:
Oversize, 6061-AL, 2pc
브레이크계통
앞 브레이크:
Tektro V, swivel link, race pad
뒤 브레이크:
Tektro V, swivel link, race pad
브레이크 레버:
Shimano
브레이크 케이블과 하우징:
Jagwire, anti-compression housing, slick cables, Slick Lube liner, alloy ferrules
휠계통
Front Wheel:
Kinetix Pro X, Paired Spoke technology, straight-pull design, 16H
Rear Wheel:
Kinetix Pro X, Paired Spoke technology, straight-pull design, 16H
타이어:
Schwalbe Marathon Racer, 40-406, puncture protection, Reflex
구동계통
기어장치:
Shimano Ultegra, 1 x 11 spd
앞 변속기:
n/a
뒤 변속기:
Shimano Ultegra, Shadow RD
크랭크세트:
Crankset, FSA Gossamer Pro, 54T MegaEVO BB386
카셋트/프리휠:
Shimano 105, 11-32T
바텀 브라켓:
FSA, BB-EVO8681
체인:
Shimano, 11 spd
페달:
MKS UB-LITE EZY
변속 케이블과 하우징:
Jagwire LEX-SL, slick treatment, alloy ferrules
Bells & Whistles
Bell:
Pitch, brass
체인가드:
Hebie
킥스탠드:
Premium center mount
클립 시스템:
AnchorBolt
러기지 소켓:
Yes
흙받이:
SKS, stainless hardware
짐받이:
Tern Metro Transit Rack
악세서리:
Pedal Holder
