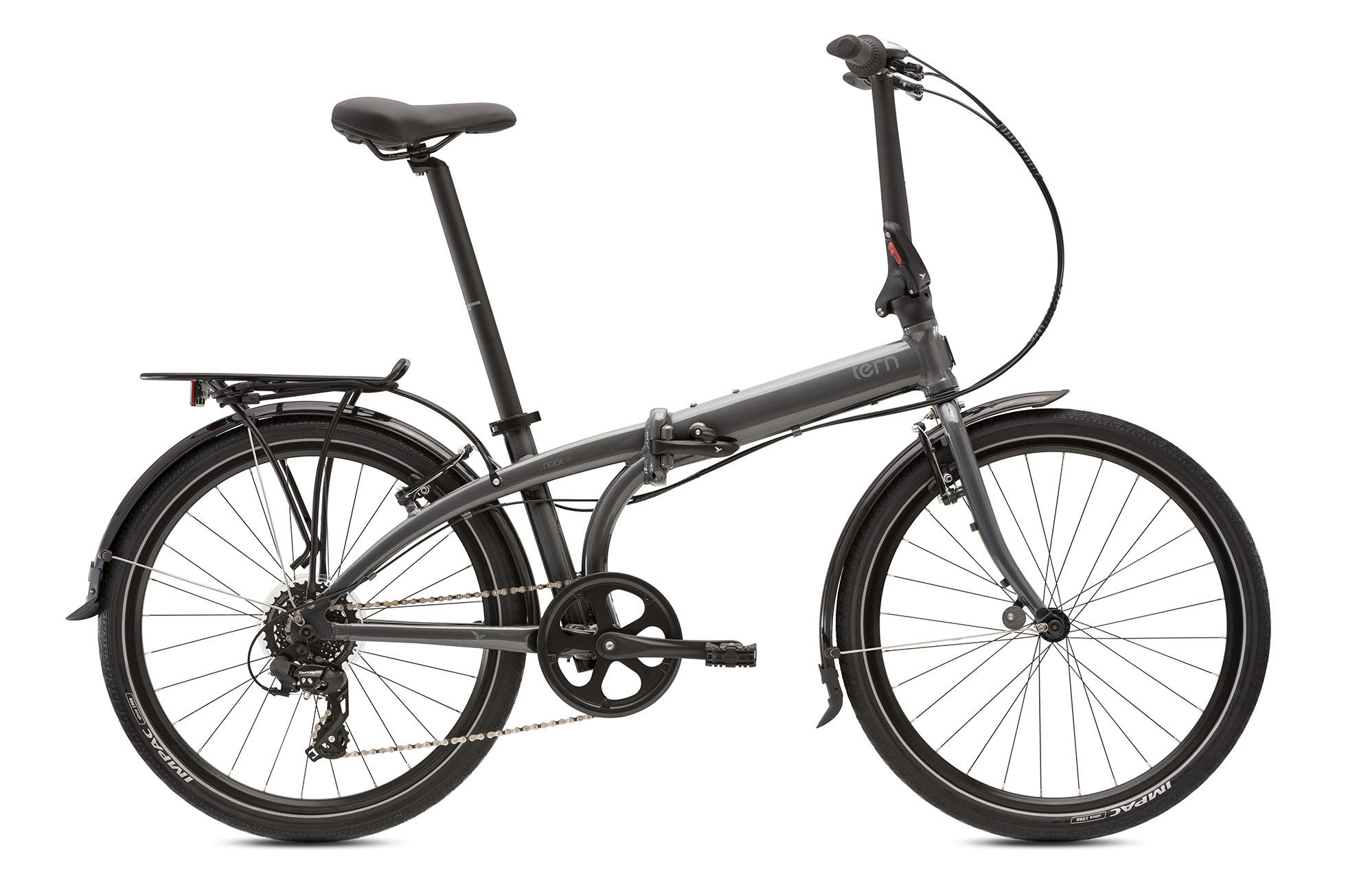

Node C8

De kostwinner
UVP 949,- €

De Node C8 geeft je het gevoel dat zelfs de grootste stad menselijke proporties heeft. Dankzij de 24” wielen beweegt hij flitsend door stadsstraten en rijdt u met zelfvertrouwen over brede boulevards. En toch is ook deze fiets compact op te vouwen om elke plek te kunnen bereiken die u wilt.

  • In minder dan 10 seconden opvouwbaar voor vervoer in trein en auto of voor opslag onder het bureau
  • Fietst als een normale fiets dankzij onze unieke technologie
  • 24” wielen geven een volwaardig rijgevoel met een minimale impact op de vouwmaat.
  • 8-speed aandrijving is ruim voldoende voor stadsgebruik
  • Tourney TX derailleur voor betrouwbaar en duurzaam schakelgedrag
  • Optioneel verkrijgbaar met drager drager, spatborden, geïntegreerde verlichting en naafdynamo
  • 24" wheels
Around Town
Entry-Level

Technology

ALGEMENE INFO

General Info
Speeds:
1 x 8
Gewicht:
14 kg (30,9 lb)
Gear Inches:
33" - 100" (2.59 - 8.01 m)
Folding Size:
390 × 860 × 840 mm (15,4 × 33,9 × 33,1 in)
Folding Time:
10 sec
Frame Sizes:
One size
Distance: Seatpost to Handlebar:
79,5 - 105 cm (31,3 - 41,3 in)
Distance: Saddle to Pedal:
79,5 - 105 cm (31,3 - 41,3 in)
Suggested Rider Height:
148 - 195 cm (58,3 - 76,8 in)
Max Gross Vehicle Weight:
120 kg (264,6 lb)
Max Load Weight:
105 kg (231,5 lb)
Max Rider Weight:
105 kg (231,5 lb)
Frame
Frame:
Tern Node, aluminum, FBL 2 joint, 3 patented technologies
Voorvork:
Integrated, hi-tensile steel
Cockpit
Stuurkolom:
Tern Physis 3D (G2), 3D forged, 5 patented technologies
Stuurpen:
Fixed height, forged QR
Balhoofdlagers:
Flux, cartridge bearings, Physis integrated
Stuur:
Flat bar, 6061-Al
Handvatten/Stuurlint:
BioLogic Ergo, Kraton
Zadel:
Velo Comfort
Zadelpen:
SuperOversize, 6061-Al, micro-adjust clamp
Zadelpenklem:
SuperOverize, 6061-Al
REMMEN
Voorrem:
V, aluminum, linear spring
Achterrem:
V, aluminum, linear spring
Remhendels:
V, aluminum bracket/lever
Brake Cable & Housing:
Anti-compression housing, slick cables
WIELEN
Voornaaf:
Aluminum; Opt: BioLogic Joule II dynamo
Achternaaf:
8 spd, aluminum
Spaken en nippel:
Sapim Leader, stainless steel
Velgen:
Doublewall aluminum
Banden:
Impac Big Pac, 50-507, Reflex
AANDRIJVING
Verstellers:
Shimano, twist, 1 x 8 spd
Rear Derailleur:
Shimano Tourney TX
Crankstel:
Forged 6061 aluminum
Cassette/Freewheel:
Shimano 11-34T, 8 spd
Trapas:
Two-piece
Ketting:
8 spd
Pedalen:
Folding, alloy body, Folding, alloy body
Versnellingskabels:
SP
OVERIGE ONDERDELEN
Fietsbel:
Aluminum
Fietsstandaard:
Deluxe center mount
Clip System:
Magnetix 2.0
Bagagedrager:
Yes
Koplamp:
Opt: Trelock mini
Achterlicht:
Opt: Deluxe LED
Spatborden:
Opt: RP Chromeplastic, stainless hardware
Drager(s):
Optional

*Note: These are our standard model specifications. The bike's weight and folded dimension may not include racks and fenders. The specifications for your country may differ slightly. We do our best to ensure that the specifications listed here accurately reflect the exact parts found on our production bikes. However, component changes do occur for various reasons and there may be brief delays on site updates. We reserve the right to make component changes without prior notification, which may cause discrepancies with the information listed on the web.
