GSD S10

Still Small. Even More Useful.
  • 200 kg zulässiges Gesamtgewicht
  • Bosch® Cargo Line-Antrieb mit 85 Nm Drehmoment und bis zu 400% Unterstützungsgrad
  • Bosch® DualBattery-System – ab Werk mit 500 Wh für bis zu 100 km Reichweite; optional erweiterbar um 500 Wh
  • Shimano® Deore 1×10fach-Kettenschaltung für geschmeidige Schaltfunktion und effiziente Kraftübertragung
  • Einstellbares Cockpit – passt Fahrer:innen von 150 bis 195 cm
  • Super-stabiler Atlas Lockstand™ mit Auto-Lock-Funktion – der Ständer rastet automatisch ein und wird per Lenker-Fernbedienung beim Losfahren bequem ausgelöst
  • Rahmenfester Schwerlast-Gepäckträger mit integrierten Trittbrettern
  • Bärenstarke und zugleich fein dosierbare Magura® MT5 eSTOP Vier-Kolben-Scheibenbremsen
  • Permanent aktives RearStop™-Bremslicht für mehr Sicherheit im Straßenverkehr
  • Gabel-integriertes Abus®-Schloss, schlüsselgleich mit Akku
  • Optimierte Atlas-Laufräder™ mit speziell CNC-bearbeiteten Naben – für noch höhere Stabilität und Langlebigkeit
  • Große Auswahl an Zubehör für jegliche Transportbedürfnisse – von Passagieren bis Einkäufe & Lasten
  • Auf den Gepäckträger passen zwei Thule® Yepp Maxi-Kindersitze – ohne Adapter

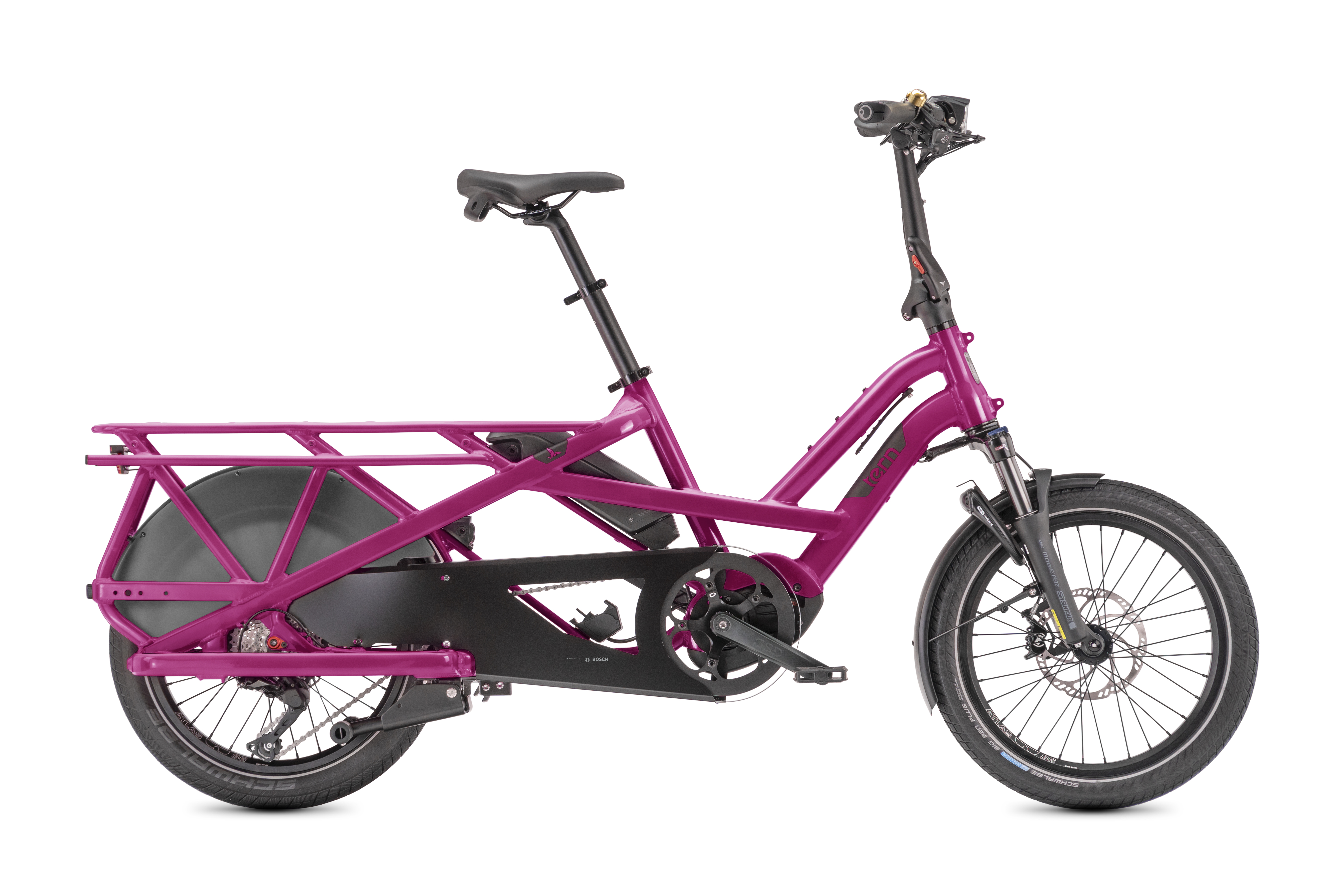

GSD S10: Our Most Popular Electric Cargo Bike
  • 20" wheels
Electric
Premium
ebt-CargoEBOTY-winner_ GSD S10.jpg

Product Reviews

I love that I arrive at the kindergarten completely relaxed and not sweaty, and on the way back I carry another box of water and all my purchases. I love that I meet Frankfurters, lots of them, because I am sure to get attention with the yellow [GSD].

Ökotest

For me, it’s the incredible versatility of the GSD that really impresses. I can cycle into town, do all my shopping and cycle back, and it’s quicker and cheaper than driving in and parking, there’s no worrying about the narrow car park size plus there’s the benefit of incidental exercise.

The Bath & Wiltshire Parent

Specifications

General Info
Speeds:
1 x 10
Weight:
33.58 kg (74 lb)
Gear Inches:
26" - 99" (2.08 - 7.91 m)
Folding Size:
176 × 40.5 × 83 cm (69.3 × 15.9 × 32.7 in)
Folding Time:
5 sec
Frame Sizes:
One size
Distance: Seatpost to Handlebar:
49 - 59 cm (19.3 - 23.2 in)
Distance: Saddle to Pedal:
69 - 105 cm (27.2 - 41.3 in)
Suggested Rider Height:
150 - 195 cm (59.1 - 76.8 in)
Max Gross Vehicle Weight:
200 kg (440.9 lb)
Max Rider Weight:
120 kg (264.6 lb)
Frame
Frame:
Tern GSD, 6061-AL, patented MultiTruss design, EFBE Tri-Test approved: 200 kg
Fork:
Suntour custom for Tern, 1.5" tapered Chromoly steerer, 32 mm stanchions, Thru-axle, 70 mm travel, EFBE approved: 200 kg
Cockpit
Handlepost:
Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 290 mm
Stem:
Tern Andros, adjustable, forged construction, patented technology
Headset:
Tern Flux Pro Taper, 1.5", angular contact bearings, Physis integrated
Handlebar:
Tern Sweep, 6061-AL, Tern Andros adapted
Grips/Bar Tape:
Ergon
Saddle:
Tern GSD by Velo, with rear handle
Seatpost:
Tern Telescope, 34.9/30.9 mm, 2014-AL
Seatpost Clamp:
Tern Collar, 6061-AL, 2pc
Brakes
Front Brake:
Magura MT5, 4-piston hydraulic disc, 180 mm rotor, Sport pads
Rear Brake:
Magura MT5, 4-piston hydraulic disc, 180 mm rotor, Sport pads
Brake Levers:
Magura MT5 e-stop, hydraulic, with brake sensor
Wheels
Front Hub:
Tern Atlas, Boost Thru-Axle, Cargo-optimized design, sealed cartridge bearing
Rear Hub:
Tern Atlas, Boost Thru-Axle, Syntace X-12 standard, Cargo-optimized design
Spokes & Nipples:
Stainless steel, 13G
Rims:
Tern Atlas, ultra wide 36 mm, dual reinforced joint
Tires:
F: Schwalbe Big Ben Plus, 55-406, Green Guard puncture protection, Reflex R: Tern x Schwalbe Super Moto-X, 62-406, Green Guard puncture protection, Reflex
Transmission
Shifter(s):
Shimano Deore, 1 x 10 spd
Rear Derailleur:
Shimano Deore Shadow+
Crankset:
Tern GSD custom, forged 6061-AL DH crankarm
Cassette/Freewheel:
Shimano 11-42T, 10 spd
Bottom Bracket:
Motor integrated
Chain:
10 spd, DHT for eBike, GST corrosion resistant coating
Pedals:
Urban with non-slip surface, sealed bearings
Shifter Cable & Housing:
Jagwire LEX-SL, slick treatment, alloy ferrules
E-System
Motor:
Bosch Cargo Line, 400% Assist, 85 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US)
Battery:
Bosch Dual Battery system, 400 Wh/900 Wh
Display:
Bosch Purion, 4 mode selectable, walk assist
Range:
400 Wh: 42-85 km (26-53 mi); 900 Wh: 97-195 km (60-121 mi)
Charger:
220V, 4A (EU); 100-240V, 4A (US)
Bells & Whistles
Bell:
Pitch Plus, brass
Chainguard:
Tern Custom, full chain cover
Kickstand:
Atlas Lockstand, w/ remote unlock, patented technology
Luggage Socket:
Combo Mount
Front Light:
Tern Valo Direct, 190 lumens
Rear Light:
RearStop Brake Light, Always on brake light
Fenders:
Integrated Wheel Guard, AL6061, w/ Side Skirt
Rack(s):
Frame integrated, heavy duty design; Max load weight: 100 kg (220 lb)
Accessory:
ABUS, keyed-alike with Bosch battery

*Note: These are our standard model specifications. The bike's weight and folded dimension may not include racks and fenders. The specifications for your country may differ slightly. We do our best to ensure that the specifications listed here accurately reflect the exact parts found on our production bikes. However, component changes do occur for various reasons and there may be brief delays on site updates. We reserve the right to make component changes without prior notification, which may cause discrepancies with the information listed on the web.
