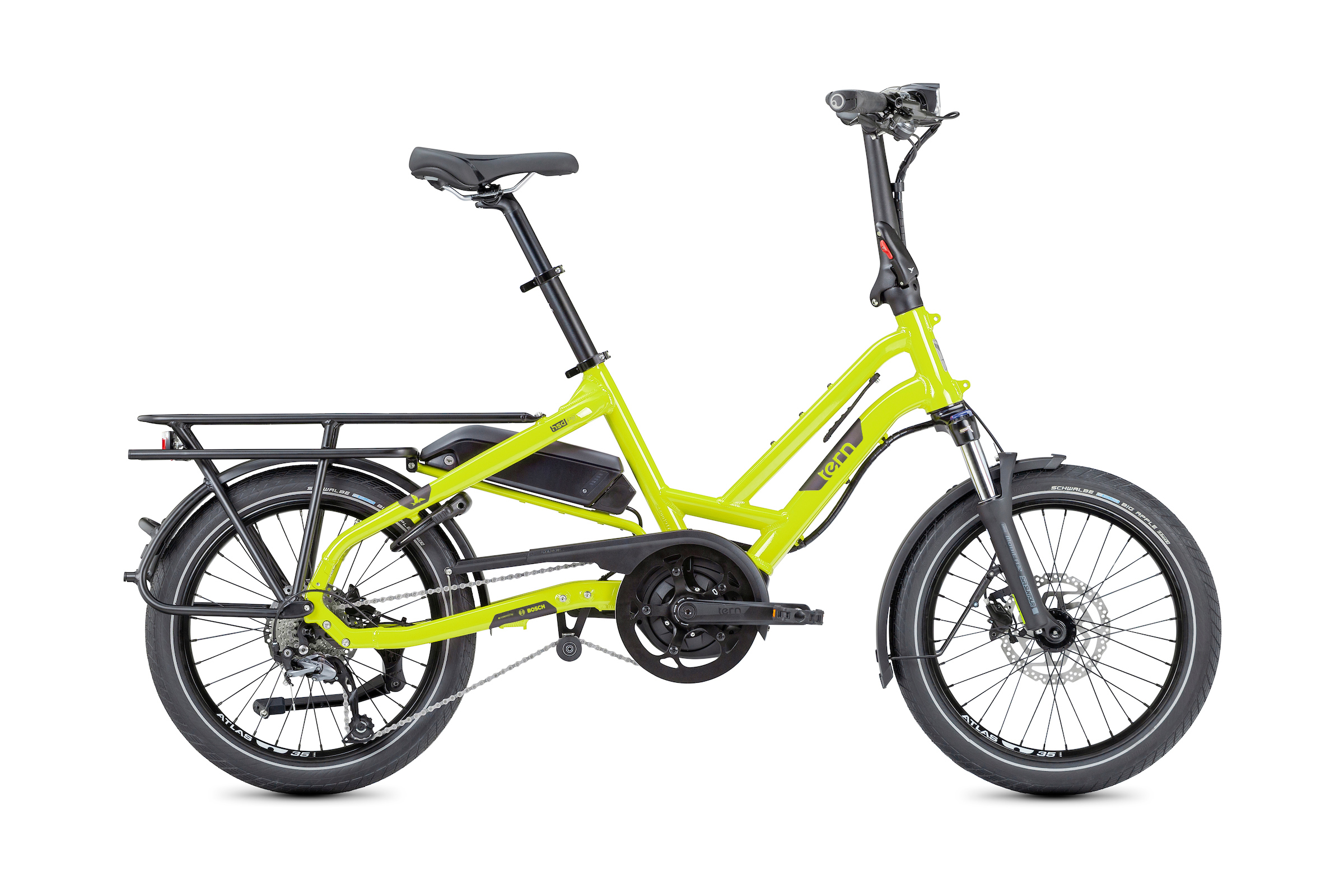

HSD P9

HSD P9

Enorm nuttig. Verrassend klein.
  • Bosch® Active Line Plus Motor met Purion Display
  • 500 Wh accu voor een bereik van maximaal 118 km
  • Custom Suntour voorvork
  • 9-speed Shimano® Alivio Shadow RD schakelsysteem
  • Shimano hydraulische remmen
  • Abus® gelijksluitend slot
  • Geschikt voor gebruikers van 150 tot 190 cm
  • Geschikt voor Thule® Yepp Maxi, Yepp Nexxt Maxi, of Bobike® GO Maxi kinderzitje — geen adapters nodig
Photo may show optional accessories.
HSD Blue
HSD Red
20" wheels
Electric
Top-Tier

Een uitgebalanceerde mix van soepel rijgedrag en wendbaarheid - zonder dat de fiets nerveus aanvoelt. De rechtop zitpositie biedt goed overzicht over het verkeer en de gevoelig werkende geveerde voorvork brengt comfort zodat hij ook geschikt is voor toerritjes.

aktiv Radfahren

Product Reviews

MYBIKE

The stiff frame gives a safe riding feeling, even cyclists over 100 kg should be able to handle the Tern well.

Bike Shop Girl Family Cyclery

I believe the HSD will change peoples’ minds about what they can do daily by bike.Read more

4.5 stars

WIRED

Tern’s folding, compact commuter ebikes have gotten even better.
Read more

Ebiketips

Riding the bike is simplicity itself.

Read more

Electrek

The HSD comes in multiple flavors designed to hit a wide range of price points. The most advanced version even offers automatic shifting thanks to a new partnership with Enviolo.

Read more

Elektrobike

With the new HSD, Tern has created an interesting e-bike which forms a convenient combination of compact dimensions and high load capacity—and which rides harmoniously and comfortably.

Read more

Cyclinfo

The loadmasters among bikes need a lot of space. Not so with the HSD, because it can be stowed vertically on its end.

WIRED

Tern’s small, fat wheels and low rack means that it has a much lower center of gravity than the average electric cargo bike. It’s also shorter than the average road bike, which makes it much easier to maneuver and to store. Read more

Bike Rumor

The new HSD is the smaller sibling to the dual-battery GSD e-cargo bike, opting for a smaller footprint in your garage and livelier feeling ride.

Read more


Specifications

Diverse
Color:
HSD Blue
HSD Red
Wheel Size:
20" wheels
Speeds:
1 x 9
Frame Sizes:
One size
Gear Inches:
33" - 97" (2.65 - 7.72 m)
Distance: Seatpost to Handlebar:
Min: 490 mm (19.3"); Max: 590 mm (23")
Distance: Saddle to Pedal:
Min: 690 mm (27.2") Max: 1050 mm (41.3")
Folding Size:
163 x 40.5 x 86 cm (64" x 15.9" x 34")
Folding Time:
5 sec
Weight:

25.7 kg (56.5 lb)

Suggested Rider Height:
150 - 195 cm (4'11" - 6'5")
Max Rider Weight:
120 kg. (264 lbs.)
Algemene informatie
Max Gross Vehicle Weight:
170 kg (374 lbs)
Frame
Frame:
Tern HSD, 6061-AL, patented design, Tern sliding dropouts, EFBE Tri-Test approved: 170 kg
Vork:
Suntour custom for Tern, 1.5" tapered Chromoly steerer, 32 mm stanchions, Thru-axle, 70 mm travel, EFBE tested for 170 kg
Cockpit
Stuurkolom:
Tern Physis 3D (G2), 3D forged, 5 patented technologies, 12°, 320 mm
Voorbouw:
Tern Andros (G2), adjustable, forged construction, patented technology
Balhoofdlagers:
Tern Flux, cartridge bearings, Physis integrated
Stuur:
Tern Sweep, 6061-AL, Tern Andros adapted
Handvatten/Stuurlint:
Ergon
Zadel:
Tern HSD
Zadelpen:
Tern Telescope, 34.9/30.9 mm, 2014-AL
Zadelpenklem:
Tern Collar, 6061-AL, 2pc
Remmen
Voorrem:
Shimano, hydraulic disc, 180 mm rotor
Achterrem:
Shimano, hydraulic disc, 160 mm rotor
Remhendels:
Shimano, hydraulic disc
Remkabels:
Shimano, hydraulic disc
Wielen
Front Wheel:
Tern Atlas H, cargo wheel
Rear Wheel:
Tern Atlas H, cargo wheel
Voornaaf:
Novatec, Thru-axle, sealed bearings
Achternaaf:
Shimano disc
Spaken en nippels:
Stainless steel
Velgen:
Tern Atlas H, wide 35 mm
Banden:
Schwalbe Big Apple, 55-406, puncture protection, Reflex
Aandrijving
Verstellers:
Shimano Alivio, 1 x 9 spd, trigger
Achterderailleur:
Shimano Alivio Shadow
Crankset:
Tern HSD custom
Cassette/Freewheel:
Shimano 11-32T, 9 spd
Trapas:
Motor integrated
ketting:
9 spd, DHT for eBike, GST corrosion resistant coating
Pedalen:
Urban with non-slip surface
Versnellingskabels:
Jagwire LEX-SL, slick treatment, alloy ferrules
E-System
Motor:
Bosch Active Line Plus (Gen 3), max speed 25 kph (EU); max speed 20 mph (US)
Battery:
Bosch PowerPack 500
Weergave:
Bosch Purion, 4 mode selectable, walk assist
Bereik:
500 Wh: 59-146 km (37-93 mi)
Charger:
Bosch Standard Charger
Bells & Whistles
Bell:
Aluminum
Kettingscherm:
SKS Chainblade
Standaard:
Ursus, rear mount
Montageplaat:
Combo Mount
Koplamp:
Tern Valo 2.1, 45 lux/190 lumens
Achterlicht:
Herrmans H-Trace, for eBike
Spatborden:
SKS, stainless hardware
Drager(s):
Atlas H rack, Atlas Rack Mount, 6 point mounting, max load capacity 60 kg (132 lb)
Accessoire:
ABUS 5650L, keyed-alike with Bosch battery
