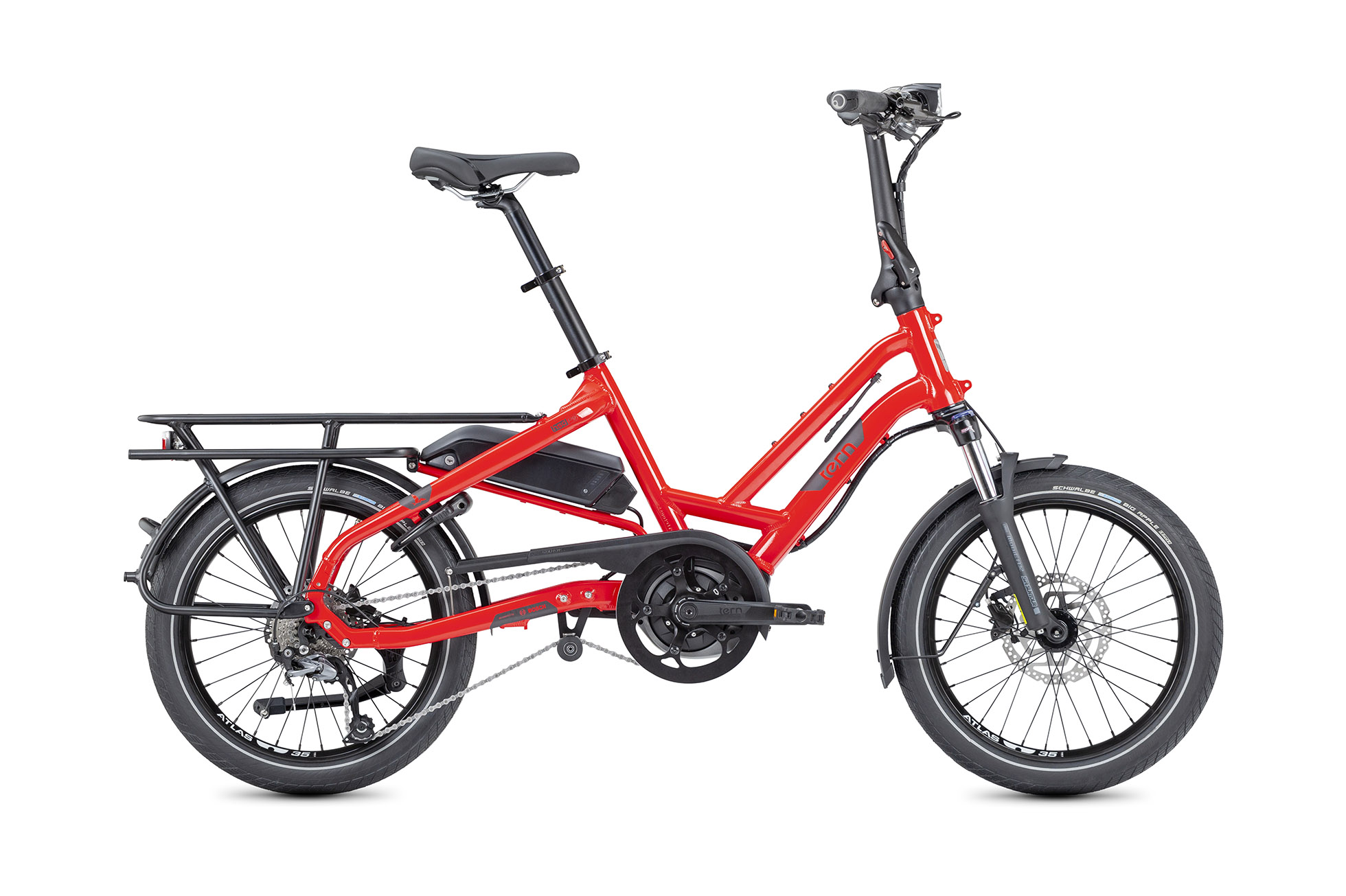

HSD P9

HSD P9

Enormously Useful. Surprisingly Smaller.
$4,199.00
  • Bosch® Active Line Plus motor with Purion display
  • 400 Wh battery for a range of up to 110 km (69 mi)
  • Custom Suntour suspension fork
  • 9-speed Shimano® Alivio Shadow RD derailleur
  • Shimano hydraulic disc brakes
  • Abus® keyed-alike frame lock
  • Fits riders from 150 to 195 cm (4’11” – 6’5”)
  • Fits one Thule® Yepp Maxi, Yepp Nexxt Maxi, or Bobike® GO Maxi child seat—no adapters needed
  • ETA early 2020
Photo may show optional accessories.
HSD Blue
HSD Red
20" wheels
Electric
Top-Tier

A balanced mix of smooth riding and agility—without feeling twitchy. An upright position to see over traffic and a sensitive suspension fork for comfort make it suitable for touring as well.

aktiv Radfahren

Product Reviews

Elektrobike

With the new HSD, Tern has created an interesting e-bike which forms a convenient combination of compact dimensions and high load capacity—and which rides harmoniously and comfortably.

Read more


Specifications

General Info
Color:
HSD Blue
HSD Red
Wheel Size:
20" wheels
Speeds:
1 x 9
Weight:

25.7 kg (56.5 lb)

Folding Size:
163 x 40.5 x 86 cm (64" x 15.9" x 34")
Folding Time:
5 sec
Frame Sizes:
One size
Gear Inches:
33" - 97" (2.65 - 7.72 m)
Distance: Seatpost to Handlebar:
Min: 490 mm (19.3"); Max: 590 mm (22")
Distance: Saddle to Pedal:
Min: 690 mm (27.2") Max: 1050 mm (41.3")
Suggested Rider Height:
150 - 195 cm (4'11" - 6'5")
Max Gross Vehicle Weight:
170 kg (374 lbs)
Max Rider Weight:
120 kg. (264 lbs.)
Frame
Frame:
Tern HSD, 6061-AL, patented design, Tern sliding dropouts, EFBE Tri-Test approved: 170 kg
Fork:
Suntour custom for Tern, Chromoly steerer, 32 mm stanchions, Thru-axle, EFBE tested for 170 kg
Cockpit
Handlepost:
Tern Physis 3D (G2), 3D forged, 5 patented technologies, 12°, 290 mm
Stem:
Tern Andros (G2), adjustable, forged construction, patented technology
Headset:
Tern Flux, cartridge bearings, Physis integrated
Handlebar:
Tern Sweep, 6061-AL, Tern Andros adapted
Grips/Bar Tape:
Ergon
Saddle:
Tern HSD
Seatpost:
Tern Telescope, 34.9/30.9 mm, 2014-AL
Seatpost Clamp:
Tern Collar, 6061-AL, 2pc
Brakes
Front Brake:
Shimano, hydraulic disc, 180 mm rotor
Rear Brake:
Shimano, hydraulic disc, 160 mm rotor
Brake Levers:
Shimano, hydraulic disc
Brake Cable & Housing:
Shimano, hydraulic disc
Wheels
Front Wheel:
Tern Atlas H, cargo wheel
Rear Wheel:
Tern Atlas H, cargo wheel
Front Hub:
Novatec, Thru-axle, sealed bearings
Rear Hub:
Shimano disc
Spokes and Nipples:
Stainless steel
Rims:
Tern Atlas H, wide 35 mm
Tires:
Schwalbe Big Apple, 55-406, puncture protection, Reflex
Transmission
Shifter(s):
Shimano Alivio, 1 x 9 spd, trigger
Rear Derailleur:
Shimano Alivio Shadow
Crankset:
Tern HSD custom
Cassette/Freewheel:
Shimano 11-32T, 9 spd
Bottom Bracket:
Motor integrated
Chain:
9 spd, DHT for eBike, GST corrosion resistant coating
Pedals:
Urban with non-slip surface
Shifter Cable & Housing:
Jagwire LEX-SL, slick treatment, alloy ferrules
E-System
Motor:
Bosch Active Line Plus (Gen 3), max speed 25 kph (EU); max speed 20 mph (US)
Battery:
Bosch PowerPack 400
Display:
Bosch Purion, 4 mode selectable, walk assist
Range:
42 -110 km (26-69 mi)
Bells & Whistles
Bell:
Aluminum
Chainguard:
SKS Chainblade
Kickstand:
Ursus, rear mount
Luggage Socket:
Combo Mount
Front Light:
Tern Valo 2.1, 45 lux/190 lumens
Rear Light:
Herrmans H-Trace, for eBike
Fenders:
SKS, stainless hardware
Rack(s):
Atlas H rack, Atlas Rack Mount, 6 point mounting
Accessory:
ABUS 5650L, keyed-alike with Bosch battery
