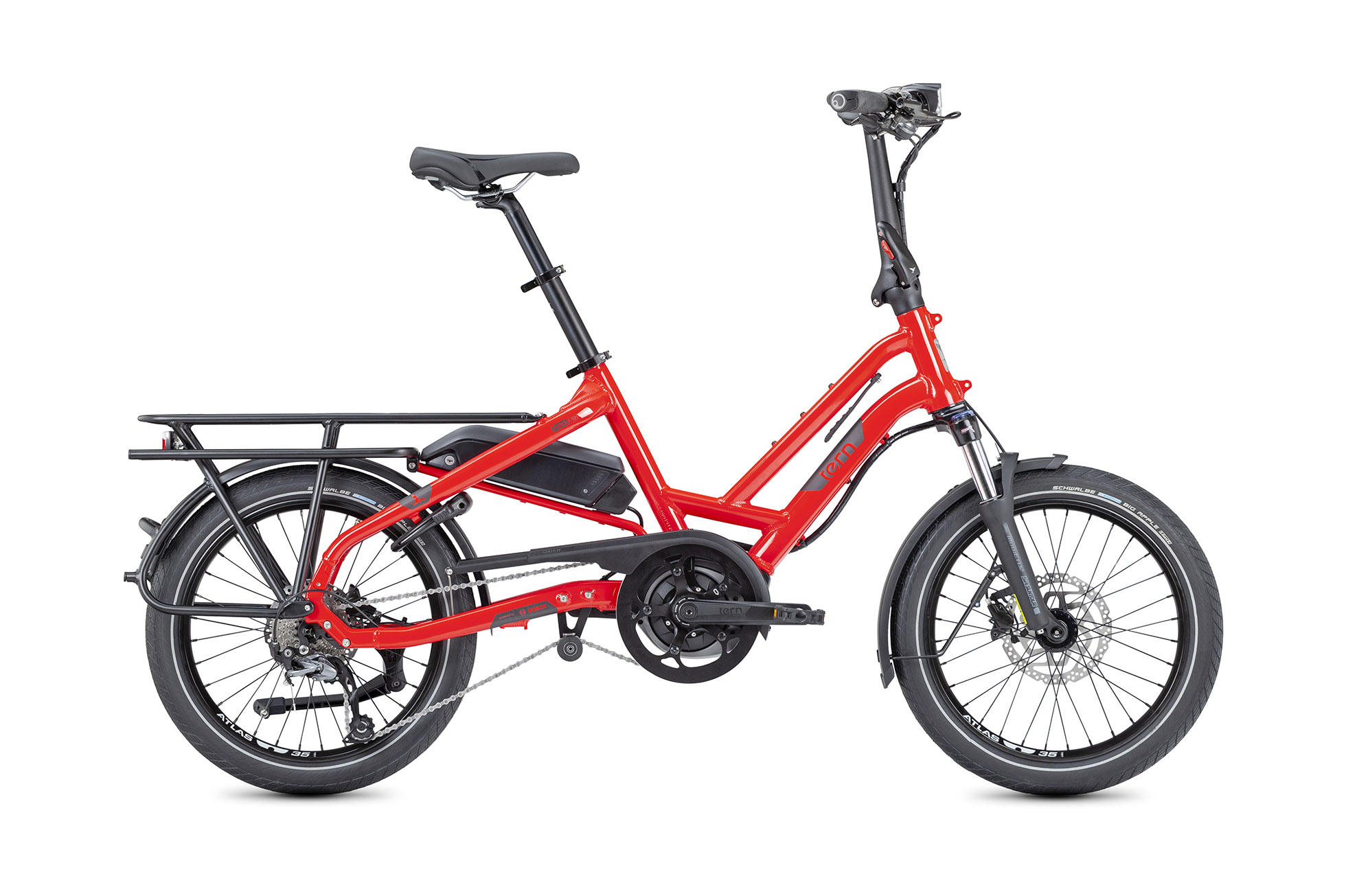

HSD P9

HSD P9

Énormément utile. Étonnamment petit
  • Moteur Bosch® Active Line Plus avec display Purion
  • Batterie de 400 Wh pour une autonomie allant jusqu‘à 110 km
  • Fourche suspension spécifique Suntour
  • 9. Vitesse Shimano® Alivio Shadow RD Wechsel
  • Freins hydrauliques à disque Shimano
  • Serrure de cadre Abus® avec clé identique à celle de la batterie
  • Convient aux cyclistes de 150 à 195 cm
  • Compatible avec un siège enfant Thule® Yepp Maxi, Yepp Nexxt Maxi ou Bobike® GO Maxi – aucun adaptateur requis
Photo non contractuelle. Certains accessoires peuvent être vendus séparément.
HSD Blue
HSD Red
Tarragon
20" wheels
Electric
Haut de gamme

A balanced mix of smooth riding and agility—without feeling twitchy. An upright position to see over traffic and a sensitive suspension fork for comfort make it suitable for touring as well.

aktiv Radfahren

Commentaires Presse

Pedelec Monitor

The inconspicuous family organizer—only when the HSD is no longer available does one notice what it accomplishes in everyday life.Read more

MYBIKE

The stiff frame gives a safe riding feeling, even cyclists over 100 kg should be able to handle the Tern well.

Bike Shop Girl Family Cyclery

I believe the HSD will change peoples’ minds about what they can do daily by bike. Read more

4.5 stars

WIRED

Tern’s folding, compact commuter ebikes have gotten even better.
Read more

Ebiketips

Riding the bike is simplicity itself.

Read more

Electrek

The HSD comes in multiple flavors designed to hit a wide range of price points. The most advanced version even offers automatic shifting thanks to a new partnership with Enviolo.

Read more

Elektrobike

With the new HSD, Tern has created an interesting e-bike which forms a convenient combination of compact dimensions and high load capacity—and which rides harmoniously and comfortably.

Read more

Süddeutsche Zeitung

And the HSD is amazingly comfortable: the upright seating position ensures a good overview in trafficRead more

The Strategist (New York Magazine)

‘The HSD can carry your kid from one year old until they are ready to bike on their own,’ Nolte says. ‘The bike can easily adapt and change as your family does.’Read more

Electrek

Both the Tern GSD and HSD passed the new German standard test up to their claimed maximum loads of 200 kg (440 lb) for the GSD and 170 kg (374 lb) for the HSD, which means they meet and exceed the German cargo bike standard. Read more


Caractéristiques

Divers
Color:
HSD Blue
HSD Red
Tarragon
Weight:

25.7 kg (56.5 lb)

Info Générales
Wheel Size:
20" wheels
Speeds:
1 x 9
Folding Size:
163 x 40.5 x 86 cm (64" x 15.9" x 34")
Folding Time:
5 sec
Frame Sizes:
One size
Gear Inches:
33" - 97" (2.65 - 7.72 m)
Distance: Seatpost to Handlebar:
Min: 490 mm (19.3"); Max: 590 mm (23")
Distance: Saddle to Pedal:
Min: 690 mm (27.2") Max: 1050 mm (41.3")
Suggested Rider Height:
150 - 195 cm (4'11" - 6'5")
Max Gross Vehicle Weight:
170 kg (374 lbs)
Max Rider Weight:
120 kg. (264 lbs.)
Cadre
Cadre:
Tern HSD, 6061-AL, patented design, Tern sliding dropouts, EFBE Tri-Test approved: 170 kg
Fourche:
Suntour custom for Tern, Chromoly steerer, 32 mm stanchions, Thru-axle, EFBE tested for 170 kg
Cockpit
Potence:
Tern Physis 3D (G2), 3D forged, 5 patented technologies, 12°, 290 mm
Potence Ajustable:
Tern Andros (G2), adjustable, forged construction, patented technology
Jeu De Direction:
Tern Flux, cartridge bearings, Physis integrated
Guidon:
Tern Sweep, 6061-AL, Tern Andros adapted
Poignees/Rubans Guidon:
Ergon
Selle:
Tern HSD
Tige De Selle:
Tern Telescope, 34.9/30.9 mm, 2014-AL
Collier De Selle:
Tern Collar, 6061-AL, 2pc
Freins
Frein Avant:
Shimano, hydraulic disc, 180 mm rotor
Frein Arriere:
Shimano, hydraulic disc, 160 mm rotor
Leviers De Freins:
Shimano, hydraulic disc
Cables & Gaines De Freins:
Shimano, hydraulic disc
Roues
Front Wheel:
Tern Atlas H, cargo wheel
Rear Wheel:
Tern Atlas H, cargo wheel
Moyeu Avant:
Novatec, Thru-axle, sealed bearings
Moyeu Arriere:
Shimano disc
Rayons Et Ecrous:
Stainless steel
Jantes:
Tern Atlas H, wide 35 mm
Pneus:
Schwalbe Big Apple, 55-406, puncture protection, Reflex
Transmission
Commandes:
Shimano Alivio, 1 x 9 spd, trigger
Derailleur Arriere:
Shimano Alivio Shadow
Pedalier:
Tern HSD custom
Cassette/Roue Libre:
Shimano 11-32T, 9 spd
Boitier De Pedalier:
Motor integrated
Chaine:
9 spd, DHT for eBike, GST corrosion resistant coating
Pédales:
Urban with non-slip surface
Cables & Gaines:
Jagwire LEX-SL, slick treatment, alloy ferrules
E-System
Motor:
Bosch Active Line Plus (Gen 3), max speed 25 kph (EU); max speed 20 mph (US)
Battery:
Bosch PowerPack 400
Affichage:
Bosch Purion, 4 mode selectable, walk assist
Intervalle:
42 -110 km (26-69 mi)
Charger:
Bosch Compact Charger
Bells & Whistles
Sonnette:
Aluminum
Chainguard:
SKS Chainblade
Béquille:
Ursus, rear mount
Inserts Porte-Bagage:
Tern Valo Direct, 45 lux/190 lumens
Eclairage avant:
Tern Valo Direct, 45 lux/190 lumens
Eclairage Arriere:
Herrmans H-Trace, for eBike
Garde-boue:
SKS, stainless hardware
Porte-bagages:
Atlas H rack, Atlas Rack Mount, 6 point mounting
Accessory:
ABUS 5650L, keyed-alike with Bosch battery
