HSD P9

HSD P9

Enormously Useful. Surprisingly Smaller.
$3,199.00
  • Bosch® Active Line Plus motor with Purion display
  • 400 Wh battery for a range of up to 110 km (69 mi)
  • Custom Suntour suspension fork
  • 9-speed Shimano® Alivio Shadow RD derailleur
  • Shimano hydraulic disc brakes
  • Abus® keyed-alike frame lock
  • Fits riders from 150 to 195 cm (4’11” – 6’5”)
  • Fits one Thule® Yepp Maxi, Yepp Nexxt Maxi, or Bobike® GO Maxi child seat—no adapters needed
  • ETA early 2020

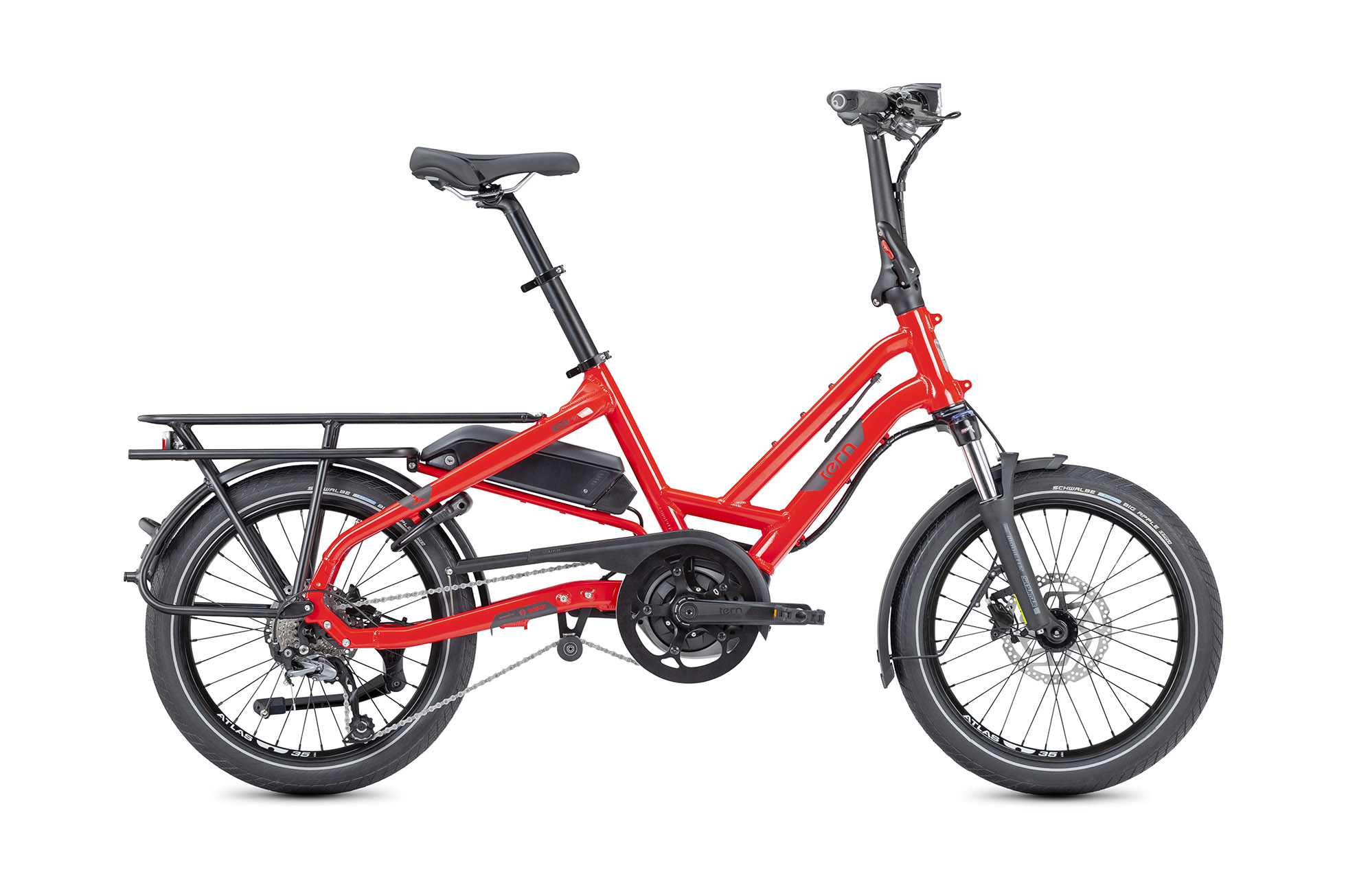

Photo may show optional accessories.
Dune
HSD Red
20" wheels
Electric
Top-Tier

A balanced mix of smooth riding and agility—without feeling twitchy. An upright position to see over traffic and a sensitive suspension fork for comfort make it suitable for touring as well.

aktiv Radfahren

Product Reviews

Ebiketips

Riding the bike is simplicity itself.

Read more

Electrek

The HSD comes in multiple flavors designed to hit a wide range of price points. The most advanced version even offers automatic shifting thanks to a new partnership with Enviolo.

Read more

Elektrobike

With the new HSD, Tern has created an interesting e-bike which forms a convenient combination of compact dimensions and high load capacity—and which rides harmoniously and comfortably.

Read more

Bike Rumor

The new HSD is the smaller sibling to the dual-battery GSD e-cargo bike, opting for a smaller footprint in your garage and livelier feeling ride.

Read more


Specifications

General Info
Color:
Dune
HSD Red
Wheel Size:
20" wheels
Speeds:
1 x 9
Weight:

25.7 kg (56.5 lb)

Folding Size:
163 x 40.5 x 86 cm (64" x 15.9" x 34")
Folding Time:
5 sec
Frame Sizes:
One size
Gear Inches:
33" - 97" (2.65 - 7.72 m)
Distance: Seatpost to Handlebar:
Min: 490 mm (19.3"); Max: 590 mm (22")
Distance: Saddle to Pedal:
Min: 690 mm (27.2") Max: 1050 mm (41.3")
Suggested Rider Height:
150 - 195 cm (4'11" - 6'5")
Max Gross Vehicle Weight:
170 kg (374 lbs)
Max Rider Weight:
120 kg. (264 lbs.)
Frame
Frame:
Tern HSD, 6061-AL, patented design, Tern sliding dropouts, EFBE Tri-Test approved: 170 kg
Fork:
Suntour custom for Tern, Chromoly steerer, 32 mm stanchions, Thru-axle, EFBE tested for 170 kg
Cockpit
Handlepost:
Tern Physis 3D (G2), 3D forged, 5 patented technologies, 12°, 290 mm
Stem:
Tern Andros (G2), adjustable, forged construction, patented technology
Headset:
Tern Flux, cartridge bearings, Physis integrated
Handlebar:
Tern Sweep, 6061-AL, Tern Andros adapted
Grips/Bar Tape:
Ergon
Saddle:
Tern HSD
Seatpost:
Tern Telescope, 34.9/30.9 mm, 2014-AL
Seatpost Clamp:
Tern Collar, 6061-AL, 2pc
Brakes
Front Brake:
Shimano, hydraulic disc, 180 mm rotor
Rear Brake:
Shimano, hydraulic disc, 160 mm rotor
Brake Levers:
Shimano, hydraulic disc
Brake Cable & Housing:
Shimano, hydraulic disc
Wheels
Front Wheel:
Tern Atlas H, cargo wheel
Rear Wheel:
Tern Atlas H, cargo wheel
Front Hub:
Novatec, Thru-axle, sealed bearings
Rear Hub:
Shimano disc
Spokes and Nipples:
Stainless steel
Rims:
Tern Atlas H, wide 35 mm
Tires:
Schwalbe Big Apple, 55-406, puncture protection, Reflex
Transmission
Shifter(s):
Shimano Alivio, 1 x 9 spd, trigger
Rear Derailleur:
Shimano Alivio Shadow
Crankset:
Tern HSD custom
Cassette/Freewheel:
Shimano 11-32T, 9 spd
Bottom Bracket:
Motor integrated
Chain:
9 spd, DHT for eBike, GST corrosion resistant coating
Pedals:
Urban with non-slip surface
Shifter Cable & Housing:
Jagwire LEX-SL, slick treatment, alloy ferrules
E-System
Motor:
Bosch Active Line Plus (Gen 3), max speed 25 kph (EU); max speed 20 mph (US)
Battery:
Bosch PowerPack 400
Display:
Bosch Purion, 4 mode selectable, walk assist
Range:
42 -110 km (26-69 mi)
Bells & Whistles
Bell:
Aluminum
Chainguard:
SKS Chainblade
Kickstand:
Ursus, rear mount
Luggage Socket:
Combo Mount
Front Light:
Tern Valo 2.1, 45 lux/190 lumens
Rear Light:
Herrmans H-Trace, for eBike
Fenders:
SKS, stainless hardware
Rack(s):
Atlas H rack, Atlas Rack Mount, 6 point mounting
Accessory:
ABUS 5650L, keyed-alike with Bosch battery
