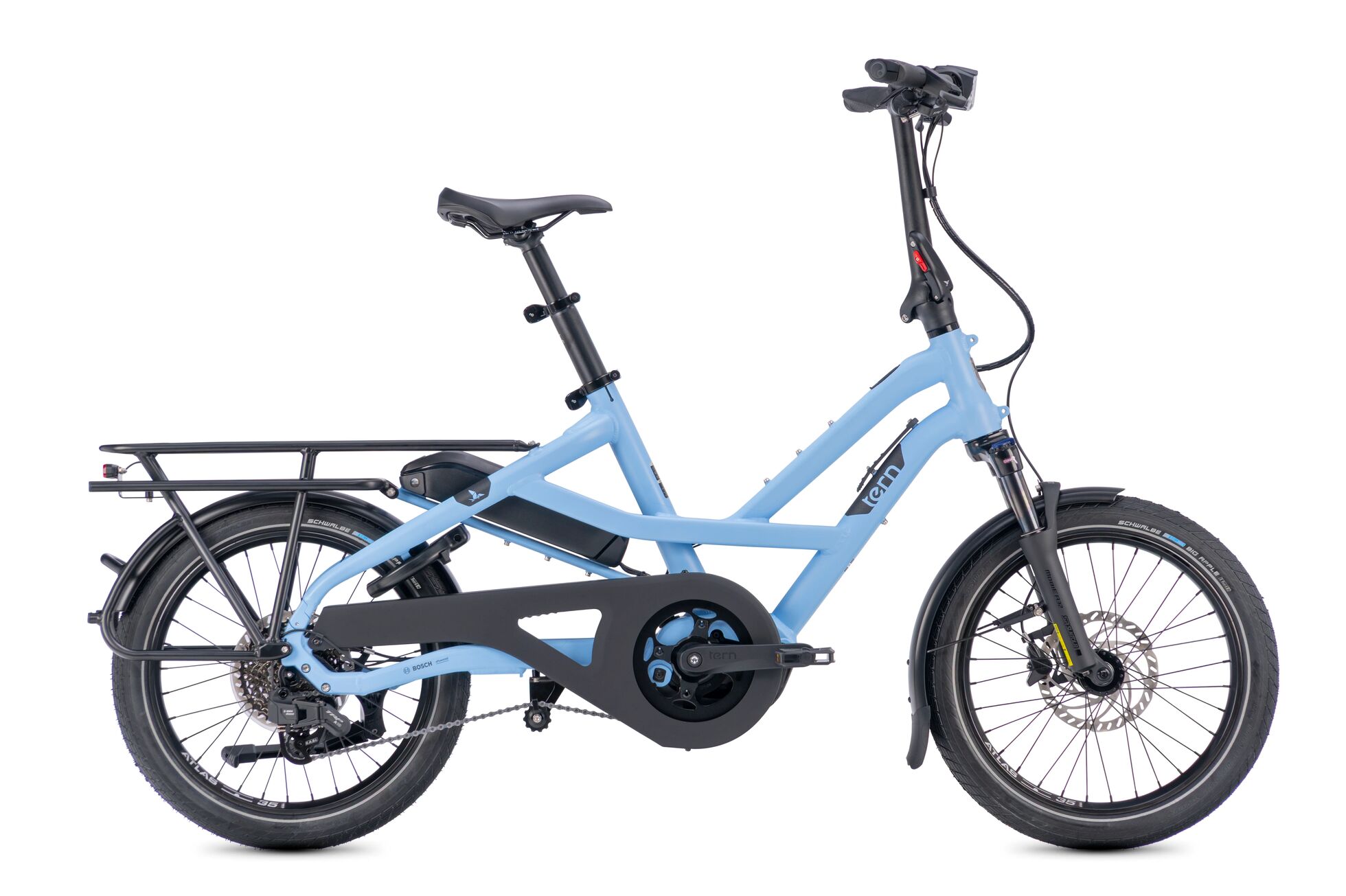

HSD P10e Sport
MIGHTY BUT MINI
$5,499
What makes it a P10e Sport?
- Bosch Performance Sport motor delivers up to 90 Nm of torque and 600% pedal assist with Performance Upgrade 2.0, supporting a max speed of 28 mph (Class 3)
- Bosch Smart System delivers a fully connected ride with eBike Lock, ride customization, over-the-air updates, and more
- Minimal, compact Purion 200 display lets you control all features with your thumb and keeps the cockpit clutter-free
- Bosch eShift automatically shifts for you based on your preferred cadence and starting gear, with a wireless design that reduces maintenance
- Custom TRP E.A.S.I. A10, 10-speed derailleur
- Bosch PowerPack 545 battery provides long range of up to 67 mi (107 km)
HSD Highlights
- Best-in-class hauling capacity, rated to a maximum gross vehicle weight of 419 lb (190 kg) with a rear rack load capacity of 176 lb (80 kg)
- Optimized frame geometry, a longer wheelbase, and a low center of gravity keep rides stable, even with heavy loads or at higher speeds
- Magura hydraulic disc brakes deliver precise and responsive stopping power
- Custom Suntour suspension fork absorbs road shocks for a smoother, more comfortable ride
- Easy-sharing cockpit adjusts without tools to fit riders 4'11" - 6'7" (150 - 200 cm ) tall and weighing up to 287 lb (130 kg)
- Third-party tested and certified to UL 2849 (complete e-bike system) and EN 17860 (frame and fork, 419 lb) for proven cargo e-bike safety and reliability
SPECIFICATIONS
General Info
Generation:
Gen 3
Color(s):
Speeds:
1 x 10
Weight:
28.4 kg (62.6 lb)
Gear Inches:
27 - 97" (2.18 - 7.72 m)
Frame Sizes:
One size
Bike Size:
174 × 112.5 × 68 cm (68.5 × 44.3 × 26.8 in)
Wheelbase:
119 cm (46.9 in)
Standover Height:
48.5 cm (19.1 in)
Folding Size:
166 × 42 × 87 cm (65.4 × 16.5 × 34.3 in)
Folding Time:
5 seconds
Distance: Seatpost to Handlebar:
52 - 59 cm (20.5 - 23.2 in)
Distance: Saddle to Pedal:
68 - 101 cm (26.8 - 39.8 in)
Suggested Rider Height:
150 - 200 cm (59.1 - 78.7 in)
Max Gross Vehicle Weight:
190 kg (418.9 lb)
Max Rider Weight:
130 kg (286.6 lb)
Frame
Frame:
Tern HSD, 6061-AL, patented design, EN17860 certified: 190 kg
Fork:
Suntour custom for Tern, 32 mm stanchions, Thru-axle, EN17860 certified: 190 kg
Cockpit
Handlepost:
Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 320 mm
Stem:
Tern Andros, adjustable, forged construction, patented technology
Headset:
Tern Flux Pro Taper by FSA, 1.5", angular contact bearings, Physis integrated
Handlebar:
Tern Sweep, 6061-AL, Tern Andros adapted
Grips/Bar Tape:
Ergon
Saddle:
Tern by Velo
Seatpost:
Tern VLT 40/34.9mm, with LightAction levers
Seatpost Clamp:
Tern Collar
Brakes
Front Brake:
Magura, hydraulic disc, 180 mm rotor
Rear Brake:
Magura, hydraulic disc, 180 mm rotor
Brake Levers:
Magura, hydraulic disc
Brake Cable & Housing:
Magura, hydraulic disc
Wheels
Front Wheel:
Tern Atlas H, cargo wheel
Rear Wheel:
Tern Atlas H, cargo wheel
Front Hub:
Novatec, Thru-axle, sealed bearings
Rear Hub:
Novatec, disc, sealed bearings
Spokes & Nipples:
Stainless steel
Rims:
Tern Atlas H, cargo
Tires:
Schwalbe Big Apple, 55-406, puncture protection, Reflex
Transmission
Shifter:
TRP E.A.S.I., wireless e-shifter, w/ Bosch eShift
Rear Derailleur:
TRP E.A.S.I. A10, w/ Bosch eShift, 10 spd, Built for Tern
Crankset:
Tern HSD
Cassette/Freewheel:
Shimano CUES, Linkglide 11-39T, 10 spd
Bottom Bracket:
Motor integrated
Chain:
KMC eGlideS, 10 spd, EPT corrosion resistant coating
Pedals:
Urban with non-slip surface, sealed bearings
Shifter Cable & Housing:
Wireless
E-System
Motor:
Bosch Performance Sport (BDU34, 600% Assist, 90 Nm Torque, max speed 28 mph (US)
Battery:
Bosch PowerPack 545
Display:
Bosch Purion 200, connectivity with Bosch eBike Flow app, electronic bike lock
Range:
545 Wh: 56-107 km (35-67 mi)
Charger:
Fast Charging, 220V, 4A (EU); 100-240V, 4A (US)
Bells & Whistles
Bell:
Pitch Plus, brass
Chainguard:
Tern Custom, full chain cover
Kickstand:
Ursus, rear mount
Luggage Socket:
Tern Combo Mount
Front Light:
Tern Valo Direct, 190 lumens
Rear Light:
Herrmans LED
Fenders:
Aluminum, stainless hardware
Rack:
Atlas H rack, 6 point mounting, ISO 11243:2023 certification: 80 kg
Frame Lock:
AXA, keyed-alike with Bosch battery
*Note: These are our standard model specifications. The bike's weight and folded dimension may not include racks and fenders. The specifications for your country may differ slightly. We do our best to ensure that the specifications listed here accurately reflect the exact parts found on our production bikes. However, component changes do occur for various reasons and there may be brief delays on site updates. We reserve the right to make component changes without prior notification, which may cause discrepancies with the information listed on the web.
