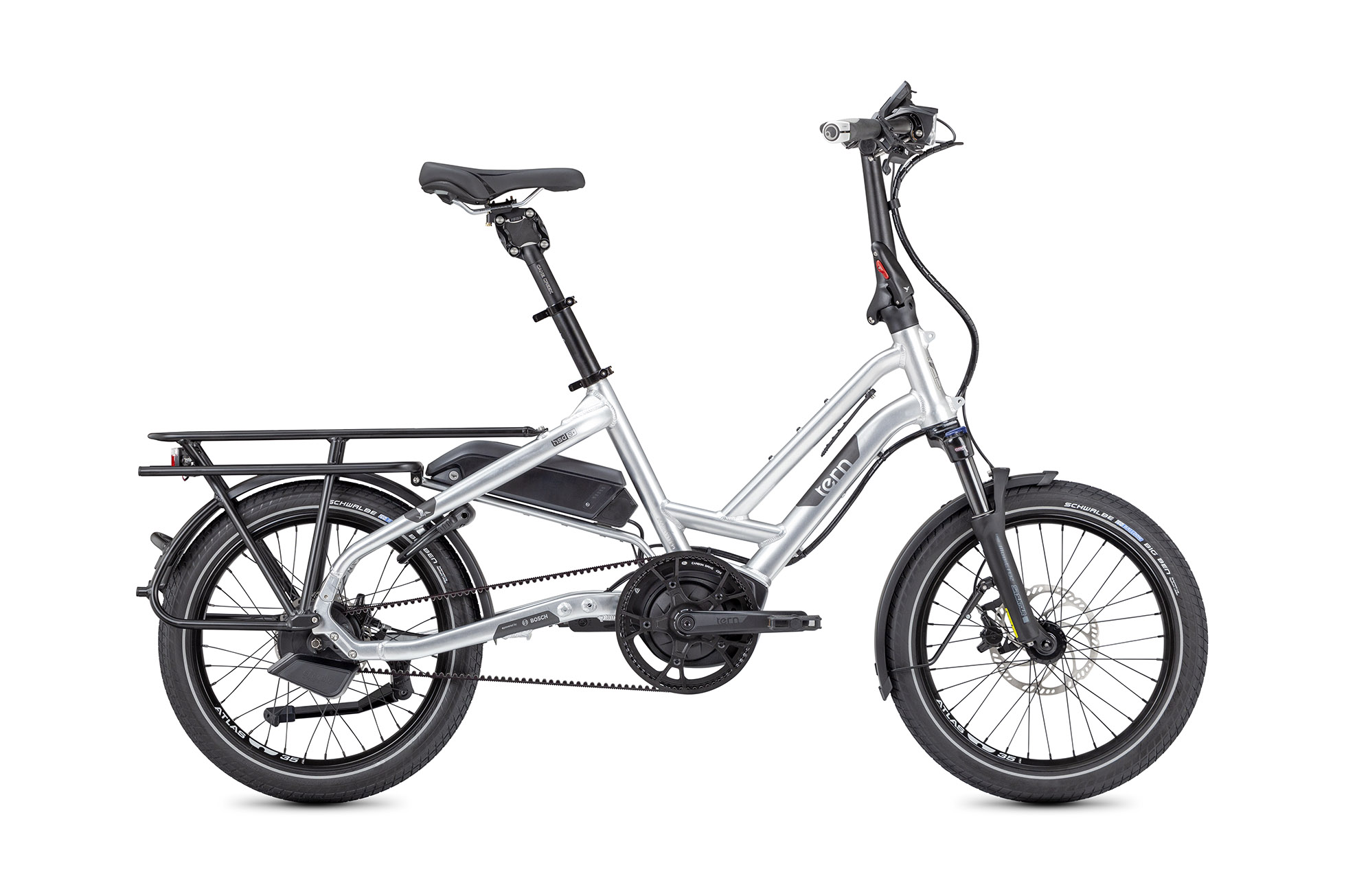

HSD S+

HSD S+

Énormément utile. Étonnamment petit
  • Moteur Bosch® Performance Line nouvelle génération avec écran Intuvia
  • Batterie de 500 Wh pour une autonomie allant jusqu‘à 118 km
  • Changement de vitesse automatique intégré
  • Enviolo Sport 380 moyeu
  • Fourche suspension spécifique Suntour
  • Tige de selle suspendue Cane Creek® Thudbuster ST
  • Freins hydrauliques à disque Magura® MT4
  • Entainement par courroie Gates
  • Serrure de cadre Abus® avec clé identique à celle de la batterie
  • Convient aux cyclistes de 150 à 195 cm
  • Compatible avec un siège enfant Thule® Yepp Maxi, Yepp Nexxt Maxi ou Bobike® GO Maxi – aucun adaptateur requis
Photo non contractuelle. Certains accessoires peuvent être vendus séparément.
Shake Polish
20" wheels
Electric
Haut de gamme

A balanced mix of smooth riding and agility—without feeling twitchy. An upright position to see over traffic and a sensitive suspension fork for comfort make it suitable for touring as well.

aktiv Radfahren

Commentaires Presse

Radelbande

The Tern HSD S+ is very agile with its small 20-inch wheels and powerful motor, and it remains stable and easy to handle at all times. Read more

ElektroRad

Ingenious all-rounder for city & country.

MyBike

The HSD S+ combines the advantages of a cargo bike with a compact design

Ebiketips

Riding the bike is simplicity itself.

Read more

CyclingTips

The new 2020 Tern HSD was the CyclingTips team bus for Eurobike. I’d ride this the 12km or so between Eurobike and our accommodation, loaded with everyone else’s bags and gear. It’s quite impressive just how much stuff this can carry.

Read more

Electrek

The HSD comes in multiple flavors designed to hit a wide range of price points. The most advanced version even offers automatic shifting thanks to a new partnership with Enviolo.

Read more

Elektrobike

With the new HSD, Tern has created an interesting e-bike which forms a convenient combination of compact dimensions and high load capacity—and which rides harmoniously and comfortably.

Read more

Financial Times

‘With bikes like the GSD, we’ve got families getting rid of their cars and doing everything on their ebikes,’ says Parsons. ‘It costs almost nothing to run: it’s three pence to charge and that gives you a range of 50 miles.’ Try getting that fuel economy in a car.Read more

Süddeutsche Zeitung

And the HSD is amazingly comfortable: the upright seating position ensures a good overview in trafficRead more

Electrek

Both the Tern GSD and HSD passed the new German standard test up to their claimed maximum loads of 200 kg (440 lb) for the GSD and 170 kg (374 lb) for the HSD, which means they meet and exceed the German cargo bike standard. Read more


Caractéristiques

Divers
Color:
Shake Polish
Weight:

26.7 kg (58.7 lb)

Info Générales
Wheel Size:
20" wheels
Speeds:
∞/9 spd manual
Folding Size:
163 x 40.5 x 86 cm (64" x 15.9" x 34")
Folding Time:
5 sec
Frame Sizes:
One size
Gear Inches:
29" - 111" (2.34 - 8.89 m)
Distance: Seatpost to Handlebar:
Min: 490 mm (19.3"); Max: 590 mm (22")
Distance: Saddle to Pedal:
Min: 690 mm (27.2") Max: 1050 mm (41.3")
Suggested Rider Height:
150 - 195 cm (4'11" - 6'5")
Max Gross Vehicle Weight:
170 kg (374 lbs)
Max Rider Weight:
120 kg. (264 lbs.)
Cadre
Cadre:
Tern HSD, 6061-AL, patented design, Tern sliding dropouts, EFBE Tri-Test approved: 170 kg
Fourche:
Suntour custom for Tern, 1.5" tapered Chromoly steerer, 32 mm stanchions, Thru-axle, 70 mm travel, EFBE tested for 170 kg
Cockpit
Potence:
Tern Physis 3D (G2), 3D forged, 5 patented technologies, 12°, 290 mm
Potence Ajustable:
Tern Andros (G2), adjustable, forged construction, patented technology
Jeu De Direction:
Tern Flux Pro Taper, 1.5", angular contact bearings, Physis integrated
Guidon:
Tern Sweep, 6061-AL, Tern Andros adapted
Poignees/Rubans Guidon:
Ergon
Selle:
Tern HSD
Tige De Selle:
Cane Creek Thudbuster ST, Tern Telescope, 34.9/30.9 mm
Collier De Selle:
Tern Collar, 6061-AL, 2pc
Freins
Frein Avant:
Magura MT4, hydraulic disc, 180 mm rotor
Frein Arriere:
Magura MT4, hydraulic disc, 160 mm rotor
Leviers De Freins:
Magura, hydraulic
Cables & Gaines De Freins:
Magura, hydraulic
Roues
Front Wheel:
Tern Atlas H, cargo wheel
Rear Wheel:
Tern Atlas H, cargo wheel
Moyeu Avant:
Novatec, Thru-axle, sealed bearings
Moyeu Arriere:
Integrated automatic shifting (more info soon)
Rayons Et Ecrous:
Stainless steel, double-butted
Jantes:
Tern Atlas H, wide 35 mm
Pneus:
Schwalbe Big Ben, 55-406, RaceGuard puncture protection, ECE-R75 ebike certification
Transmission
Commandes:
Enviolo AUTOMATiQ
Pedalier:
Tern HSD custom, Gates CDX CNC machined beltring
Cassette/Roue Libre:
Gates CDX, precision CNC machined cog
Boitier De Pedalier:
Motor integrated
Chaine:
Gates Carbon Drive CDX belt
Pédales:
Urban with non-slip surface, sealed bearings
E-System
Motor:
Bosch Performance (Gen 3), max speed 25 kph (EU); max speed 20 mph (US)
Battery:
Bosch PowerPack 500
Affichage:
Bosch Intuvia, 4 mode selectable, walk assist, integrated auto/manual shifting
Intervalle:
51-118 km (32-74 mi)
Charger:
Bosch Standard Charger
Bells & Whistles
Sonnette:
Aluminum
Chainguard:
Gates integrated
Béquille:
Ursus, rear mount
Inserts Porte-Bagage:
Combo Mount
Eclairage avant:
Tern Valo Direct, 45 lux/190 lumens
Eclairage Arriere:
Herrmans H-Trace, for eBike
Garde-boue:
SKS, stainless hardware
Porte-bagages:
Atlas H rack, Atlas Rack Mount, 6 point mounting, max load capacity 60 kg (132 lb)
Accessory:
ABUS 5650L, keyed-alike with Bosch battery
